Standard Gearbox

153.3

Drive Connections

The PDU2 can be supplied with a motor or gearbox.

Connection kits are available in a wide range of motor faces including IEC C80, C90, C105 and NEMA 23 and 34 are readily available. Bishop-Wisecarver can also manufacture the components required to fit customers' specific motors and gearboxes.

Bishop-Wisecarver can supply assorted motors, optional holding brakes, encoders for positioning and inverter drives for power and control.

Simple Connection for Motors and Gearboxes

t Optional tubular flange screws onto standard PDU2 unit t Compatible with most types of coupling, motor and gearbox t Assembled units with couplers and adapters available for most AC motors and gear boxes

Removable Carriage Plate

t Easily detached for customizing t Easily rotated 180° to change the switch cam

to the opposite side

22.3

85.8

22

40

82.8

The example shown incorporates an AC inverter motor. This high performance system can deliver a linear force of 145N and speeds over 5m/s. Other motor combinations are available. Bishop-Wisecarver will supply fitted gearboxes with ratios from 3:1 to 512:1 complete with input flange to suit your motor.

mpact

ear Transmission

140

Corrosion Resistant Options

t Stainless steel shafts, screws and bearings t Beam with no T slots avoids debris traps t Aluminum components have USDA approved surface treatment for better corrosion resistance than most stainless steels

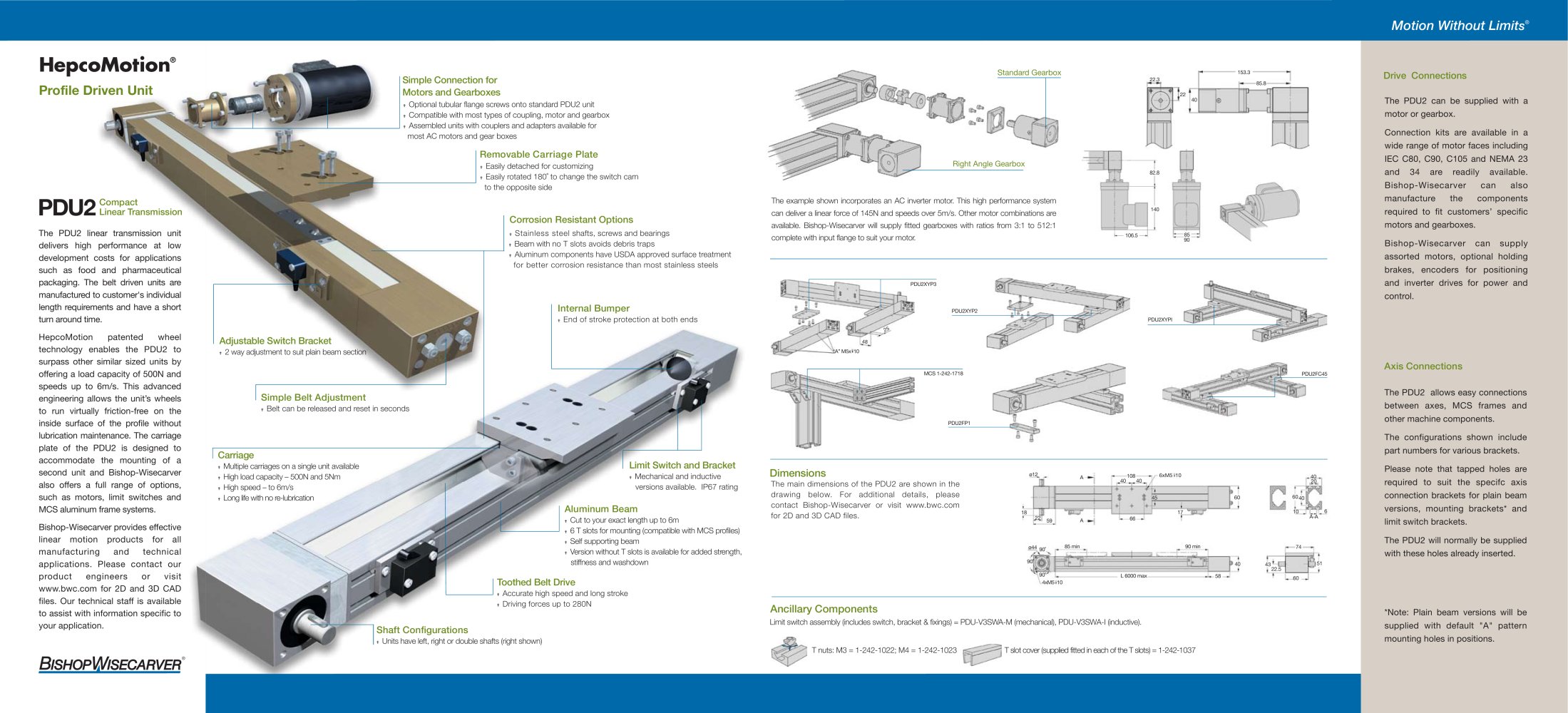

The PDU2 linear transmission unit delivers high performance at low development costs for applications such as food and pharmaceutical packaging. The belt driven units are manufactured to customer's individual length requirements and have a short turn around time.

HepcoMotion patented wheel technology enables the PDU2 to surpass other similar sized units by offering a load capacity of 500N and speeds up to 6m/s. This advanced engineering allows the unit's wheels to run virtually friction-free on the

inside surface of the profile without lubrication maintenance. The carriage plate of the PDU2 is designed to accommodate the mounting of a second unit and Bishop-Wisecarver also offers a full range of options, such as motors, limit switches and MCS aluminum frame systems.

Bishop-Wisecarver provides effective linear motion products for all manufacturing and technical applications. Please contact our product engineers or visit

www.bwc.com for 2D and 3D CAD files. Our technical staff is available

to assist with information specific to your application.

85.

90

106.5

Internal Bumper

t End of stroke protection at both ends

Adjustable Switch Bracket

t 2 way adjustment to suit plain beam

Axis Connections

The PDU2 allows easy connections between axes, MCS frames and other machine components.

The configurations shown include part numbers for various brackets.

Please note that tapped holes are required to suit the specifc axis connection brackets for plain beam versions, mounting brackets* and limit switch brackets.

The PDU2 will normally be supplied with these holes already inserted.

Simple Belt Adjustment

t Belt can be released and reset in seconds

Limit Switch and Bracket

Mechanical and inductive

versions available. IP67 rating

t Multiple carriages on a single unit available

t High load capacity - 500N and 5Nm

t High speed - to 6m/s

t Long life with no re-lubrication

Dimensions

The main dimensions of the PDU2 are shown in the drawing below. For additional details, please contact Bishop-Wisecarver or visit www.bwc.com for 2D and 3D CAD files.

012

6xM5 10

108-■■

1 ,40 . .40 .

40 20

A

60₄₀

10

45

60

17

Aluminum Beam

t Cut to your exact length up to 6m t 6 T slots for mounting (compatible with MCS profiles) t Self supporting beam

t Version without T slots is available for added strength,

stiffness and washdown

6

18

2

2

A

59

85 mm

90 mm

74

■ 90-

40

90-

43 ' i 22.5

51

90-

60

Toothed Belt Drive

t Accurate high speed and long stroke t Driving forces up to 280N

4xM5 10

Ancillary Components

Limit switch assembly (includes switch, bracket & fixings) = PDU-V3SWA-M (mechanical), PDU-V3SWA-I (inductive).

*Note: Plain beam versions will be supplied with default "A" pattern mounting holes in positions.

Shaft Configurations

t Units have left, right or double shafts (right shown)

T nuts: M3 = 1-242-1022; M4 = 1-242-1023

T slot cover (supplied fitted in each of the T slots) = 1-242-1037
