Motion Without Limits

®

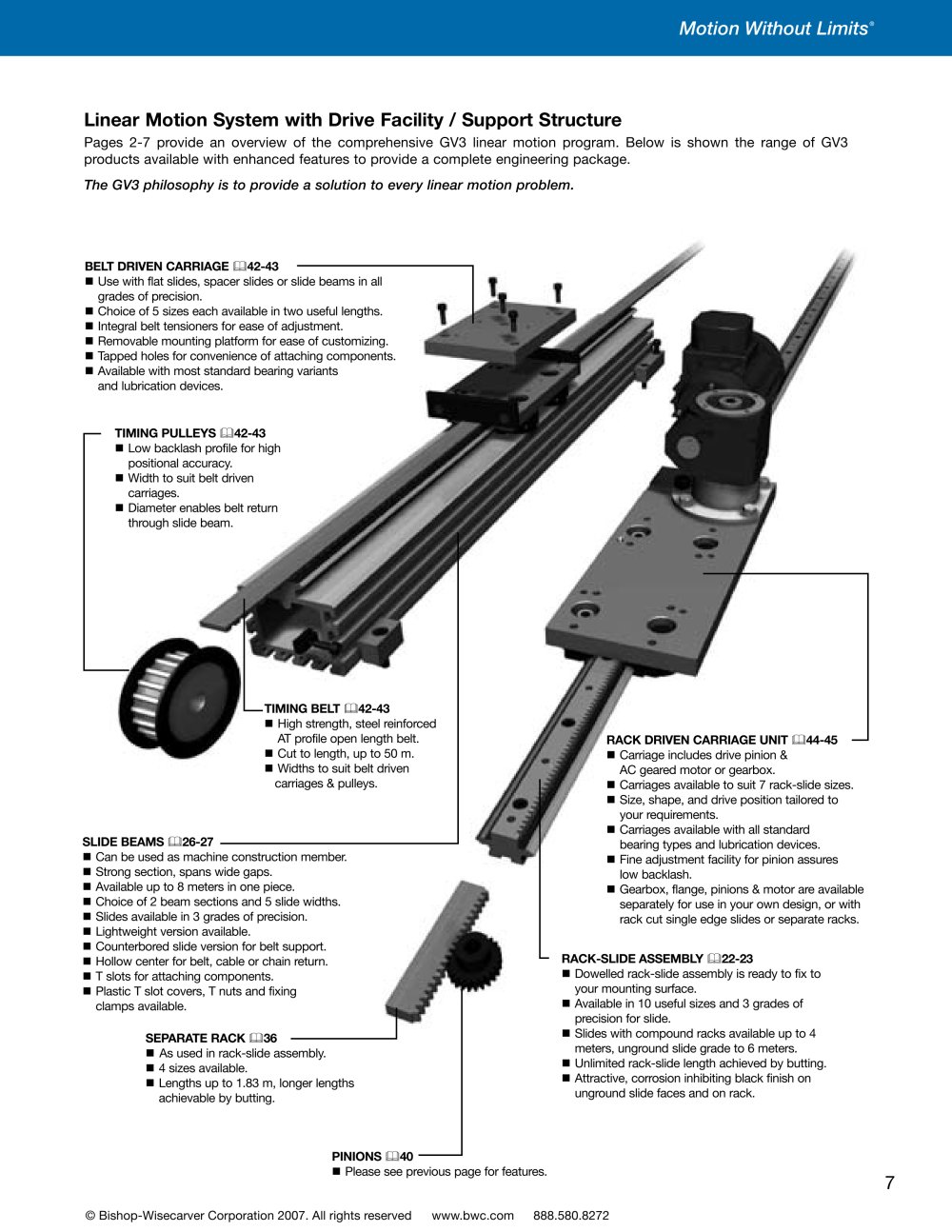

Linear Motion System with Drive Facility / Support Structure

Pages 2-7 provide an overview of the comprehensive GV3 linear motion program. Below is shown the range of GV3 products available with enhanced features to provide a complete engineering package. The GV3 philosophy is to provide a solution to every linear motion problem.

BELT DRIVEN CARRIAGE & 42-43 n n Use with flat slides, spacer slides or slide beams in all grades of precision. Choice of 5 sizes each available in two useful lengths. n Integral belt tensioners for ease of adjustment. n Removable mounting platform for ease of customizing. n Tapped holes for convenience of attaching components. n Available with most standard bearing variants and lubrication devices. TIMING PULLEYS & 42-43 n n n Low backlash profile for high positional accuracy. Width to suit belt driven carriages. Diameter enables belt return through slide beam. TIMING BELT & 42-43 n n High strength, steel reinforced AT profile open length belt. Cut to length, up to 50 m. n Widths to suit belt driven carriages & pulleys. RACK DRIVEN CARRIAGE UNIT & 44-45 n n Carriage includes drive pinion & AC geared motor or gearbox. Carriages available to suit 7 rack-slide sizes. n n n n Size, shape, and drive position tailored to your requirements. Carriages available with all standard bearing types and lubrication devices. Fine adjustment facility for pinion assures low backlash. Gearbox, flange, pinions & motor are available separately for use in your own design, or with rack cut single edge slides or separate racks. SLIDE BEAMS & 26-27 n Can be used as machine construction member. n Strong section, spans wide gaps. n Available up to 8 meters in one piece. n Choice of 2 beam sections and 5 slide widths. n Slides available in 3 grades of precision. n Lightweight version available. n Counterbored slide version for belt support. n Hollow center for belt, cable or chain return. RACK-SLIDE ASSEMBLY & 22-23 n T slots for attaching components. n n n n Dowelled rack-slide assembly is ready to fix to your mounting surface. Available in 10 useful sizes and 3 grades of precision for slide. Slides with compound racks available up to 4 meters, unground slide grade to 6 meters. Unlimited rack-slide length achieved by butting. n Plastic T slot covers, T nuts and fixing clamps available. n Attractive, corrosion inhibiting black finish on unground slide faces and on rack. SEPARATE RACK & 36 n As used in rack-slide assembly. n 4 sizes available. n Lengths up to 1.83 m, longer lengths achievable by butting. PINIONS & 40 n Please see previous page for features.

7
