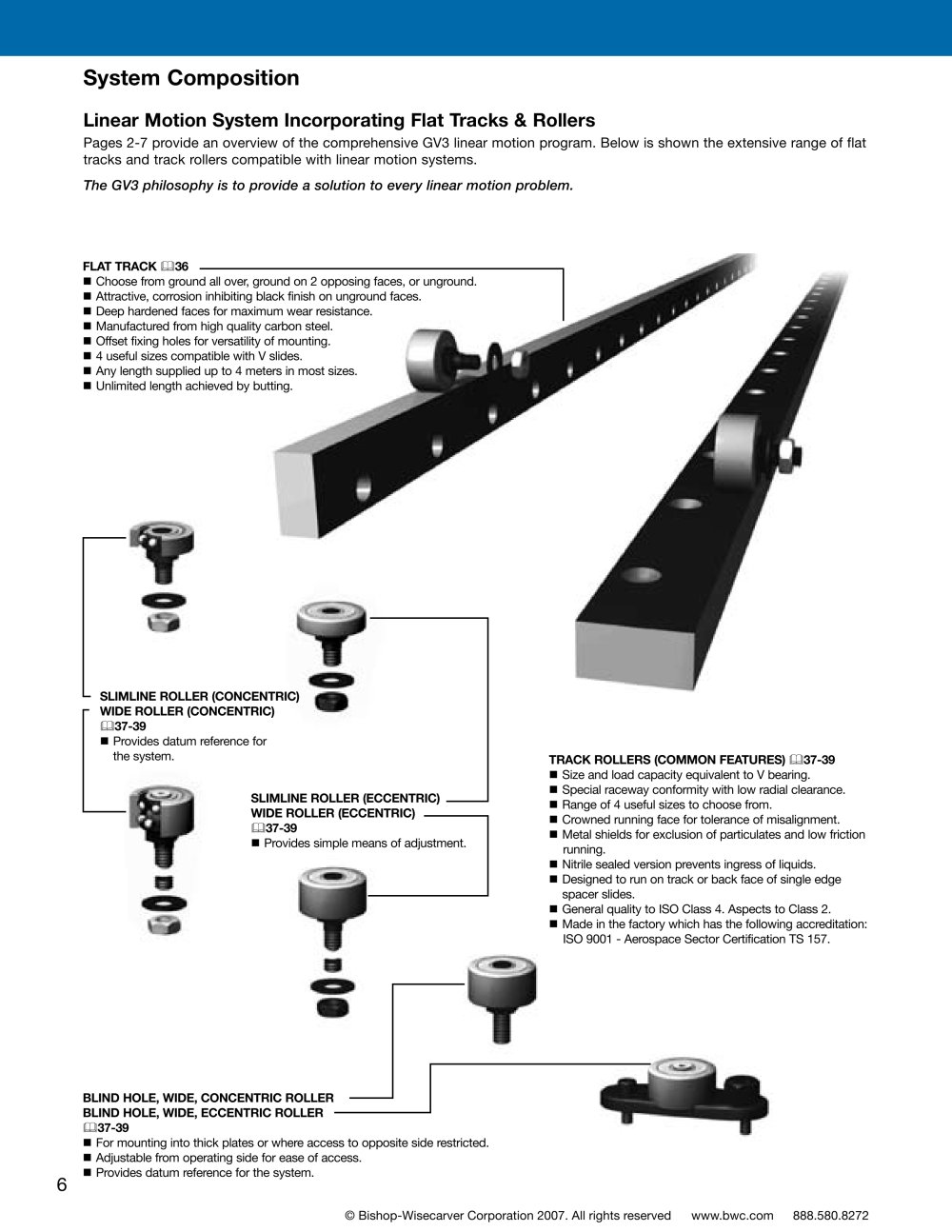

System Composition

Linear motion System Incorporating Flat Tracks & Rollers

Pages 2-7 provide an overview of the comprehensive GV3 linear motion program. Below is shown the extensive range of flat tracks and track rollers compatible with linear motion systems. The GV3 philosophy is to provide a solution to every linear motion problem.

FLAT TRACK & 36 n Choose from ground all over, ground on 2 opposing faces, or unground. n Attractive, corrosion inhibiting black finish on unground faces. n Deep hardened faces for maximum wear resistance. n Manufactured from high quality carbon steel. n Offset fixing holes for versatility of mounting. n 4 useful sizes compatible with V slides. n Any length supplied up to 4 meters in most sizes. n Unlimited length achieved by butting. SLIMLINE ROLLER (CONCENTRIC)WIDE ROLLER (CONCENTRIC) & 37-39 n Provides datum reference for the system. SLIMLINE ROLLER (ECCENTRIC)WIDE ROLLER (ECCENTRIC) & 37-39 TRACK ROLLERS (COMMON FEATURES) & 37-39 n Provides simple means of adjustment. n Size and load capacity equivalent to V bearing. n Special raceway conformity with low radial clearance. n Range of 4 useful sizes to choose from. n Crowned running face for tolerance of misalignment. n n Metal shields for exclusion of particulates and low friction running. Nitrile sealed version prevents ingress of liquids. n n Designed to run on track or back face of single edge spacer slides. General quality to ISO Class 4. Aspects to Class 2. n Made in the factory which has the following accreditation: ISO 9001 - Aerospace Sector Certification TS 157. BLIND HOLE, WIDE, CONCENTRIC ROLLERBLIND HOLE, WIDE, ECCENTRIC ROLLER & 37-39 n For mounting into thick plates or where access to opposite side restricted. n Adjustable from operating side for ease of access. n Provides datum reference for the system.
