Motion Without Limits

®

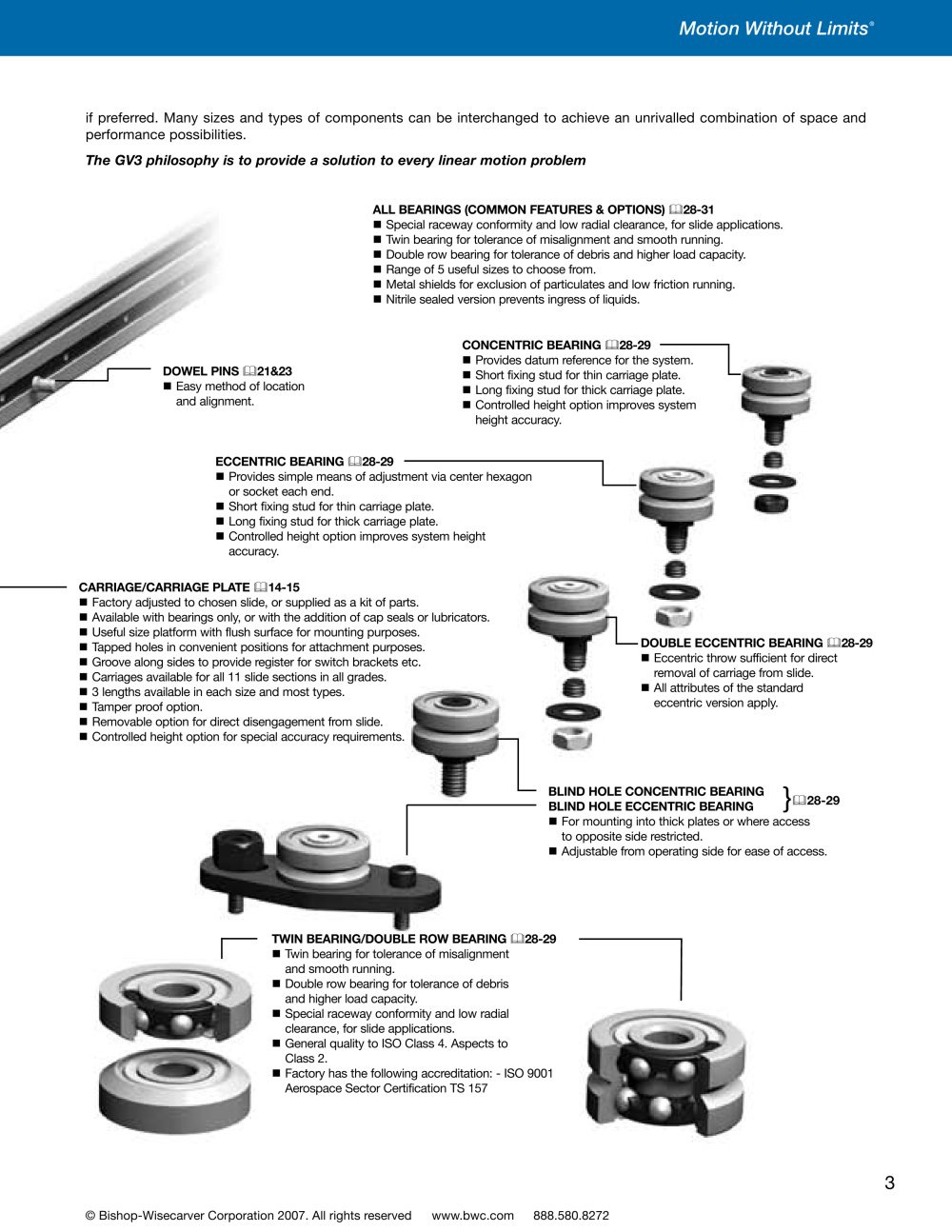

if preferred. Many sizes and types of components can be interchanged to achieve an unrivalled combination of space and performance possibilities. The GV3 philosophy is to provide a solution to every linear motion problem

ALL BEARINGS (COMMON FEATURES & OPTIONS) & 28-31 n Special raceway conformity and low radial clearance, for slide applications. n Twin bearing for tolerance of misalignment and smooth running. n Double row bearing for tolerance of debris and higher load capacity. n Range of 5 useful sizes to choose from. n Metal shields for exclusion of particulates and low friction running. n Nitrile sealed version prevents ingress of liquids. DOWEL PINS & 21&23 n Easy method of location and alignment. CONCENTRIC BEARING & 28-29 n Provides datum reference for the system. n Short fixing stud for thin carriage plate. n Long fixing stud for thick carriage plate. n Controlled height option improves system height accuracy. ECCENTRIC BEARING & 28-29 n n Provides simple means of adjustment via center hexagon or socket each end. Short fixing stud for thin carriage plate. n Long fixing stud for thick carriage plate. n Controlled height option improves system height accuracy. CARRIAGE/CARRIAGE PLATE & 14-15 n Factory adjusted to chosen slide, or supplied as a kit of parts. n Available with bearings only, or with the addition of cap seals or lubricators. n Useful size platform with flush surface for mounting purposes. n Tapped holes in convenient positions for attachment purposes. n Groove along sides to provide register for switch brackets etc. n Carriages available for all 11 slide sections in all grades. DOUBLE ECCENTRIC BEARING & 28-29 n 3 lengths available in each size and most types. n n Eccentric throw sufficient for direct removal of carriage from slide. All attributes of the standard eccentric version apply. n Tamper proof option. n Removable option for direct disengagement from slide. n Controlled height option for special accuracy requirements. BLIND HOLE CONCENTRIC BEARINGBLIND HOLE ECCENTRIC BEARING n For mounting into thick plates or where access to opposite side restricted. n Adjustable from operating side for ease of access.

GV3 Linear Guidance - 7243 }

& 28-29 TWIN BEARING/DOUBLE ROW BEARING & 28-29 n n n n n Twin bearing for tolerance of misalignment and smooth running. Double row bearing for tolerance of debris and higher load capacity. Special raceway conformity and low radial clearance, for slide applications. General quality to ISO Class 4. Aspects to Class 2. Factory has the following accreditation: - ISO 9001 Aerospace Sector Certification TS 157

3
