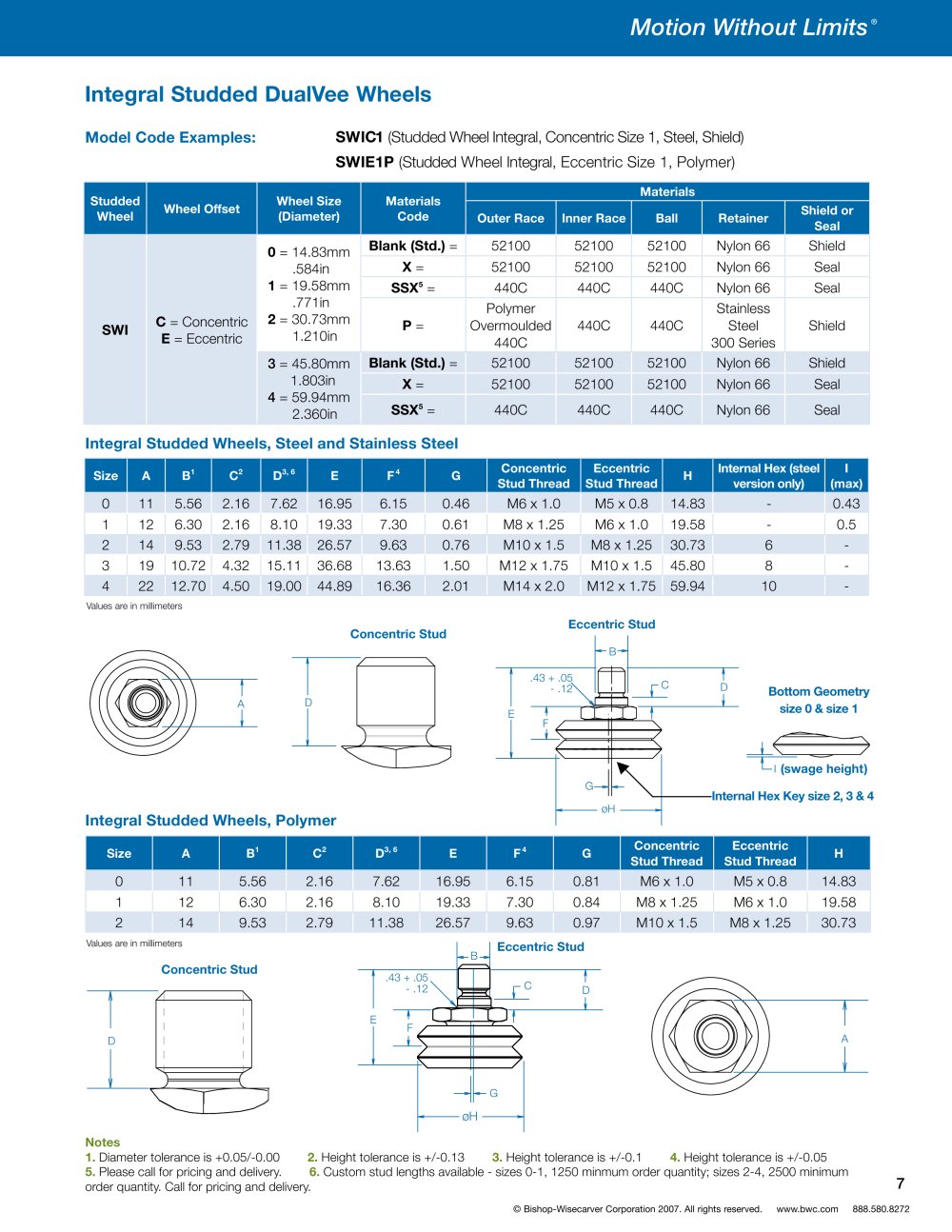

Motion Without Limits

Integral Studded DualVee Wheels

Model Code Examples:

SWIC1 (Studded Wheel Integral, Concentric Size 1, Steel, Shield) SWIE1P (Studded Wheel Integral, Eccentric Size 1, Polymer)


Studded Wheel		Wheel Size (Diameter)		Materials
Studded Wheel	Wheel Offset	Wheel Size (Diameter)	Materials Code	Outer Race	Inner Race	Ball	Retainer	Shield or
								Seal
		0 = 14.83mm	Blank (Std.) =	52100	52100	52100	Nylon 66	Shield
		.584in	X =	52100	52100	52100	Nylon 66	Seal
		1 = 19.58mm	SSX⁵ =	440C	440C	440C	Nylon 66	Seal
SWI	C = Concentric E = Eccentric	.771in 2 = 30.73mm 1.210in	P =	Polymer Overmoulded 440C	440C	440C	Stainless Steel 300 Series	Shield
		3 = 45.80mm	Blank (Std.) =	52100	52100	52100	Nylon 66	Shield
		1.803in 4 = 59.94mm 2.360in	X =	52100	52100	52100	Nylon 66	Seal
		1.803in 4 = 59.94mm 2.360in	SSX⁵ =	440C	440C	440C	Nylon 66	Seal

Integral Studded Wheels, Steel and Stainless Steel


Size	^A	B¹	C²	D^3, ⁶	E	F⁴	G	Concentric Stud Thread	Eccentric Stud Thread	H	Internal Hex (steel version only)	I (max)
0	11	5.56	2.16	7.62	16.95	6.15	0.46	M6 x 1.0	M5 x 0.8	14.83	-	0.43
1	12	6.30	2.16	8.10	19.33	7.30	0.61	M8 x 1.25	M6 x 1.0	19.58	-	0.5
2	14	9.53	2.79	11.38	26.57	9.63	0.76	M10 x 1.5	M8 x 1.25	30.73	⁶	-
3	19	10.72	4.32	15.11	36.68	13.63	1.50	M12 x 1.75	M10 x 1.5	45.80	8	-
4	22	12.70	4.50	19.00	44.89	16.36	2.01	M14 x 2.0	M12 x 1.75	59.94	10	_-

Values are in millimeters

Eccentric Stud

-B-

Concentric Stud

Bottom Geometry size 0 & size 1

'—I (swage height) nal Hex Key size 2, 3 & 4

Integral Studded Wheels, Polymer


Size	A	B¹	_C2	D^3, ⁶	E	F⁴	G	Concentric Stud Thread	Eccentric Stud Thread	H
0	11	5.56	2.16	7.62	16.95	6.15	0.81	M6 x 1.0	M5 x 0.8	14.83
1	12	6.30	2.16	8.10	19.33	7.30	0.84	M8 x 1.25	M6 x 1.0	19.58
2	14	9.53	2.79	11.38	26.57	9.63	0.97	M10 x 1.5	M8 x 1.25	30.73

Values are in millimeters

Concentric Stud

Eccentric Stud

Notes

1. Diameter tolerance is +0.05/-0.00 2. Height tolerance is +/-0.13 3. Height tolerance is +/-0.1 4. Height tolerance is +/-0.05 5. Please call for pricing and delivery. 6. Custom stud lengths available - sizes 0-1, 1250 minmum order quantity; sizes 2-4, 2500 minimum order quantity. Call for pricing and delivery.
