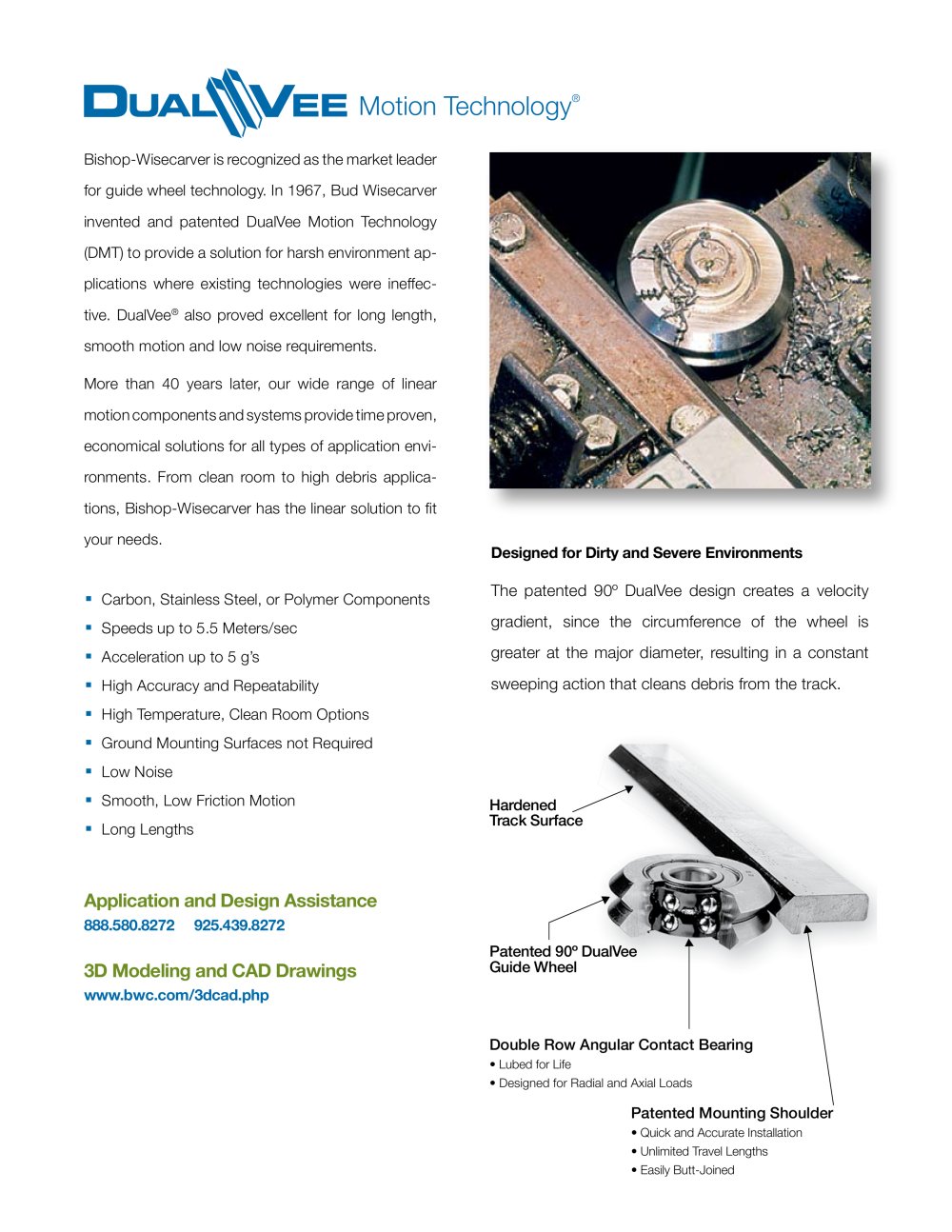

| Motion Technology' | ||||||||||
| Bishop-Wisecarver is recognized as the market leader for guide wheel technology. In 1967, Bud Wisecarver invented and patented DualVee Motion Technology (DMT) to provide a solution for harsh environment applications where existing technologies were ineffective. DualVee® also proved excellent for long length, smooth motion and low noise requirements. More than 40 years later, our wide range of linear motion components and systems provide time proven, economical solutions for all types of application environments. From clean room to high debris applications, Bishop-Wisecarver has the linear solution to fit your needs. ■ Carbon, Stainless Steel, or Polymer Components ■ Speeds up to 5.5 Meters/sec ■ Acceleration up to 5 g's ■ High Accuracy and Repeatability ■ High Temperature, Clean Room Options ■ Ground Mounting Surfaces not Required ■ Low Noise ■ Smooth, Low Friction Motion ■ Long Lengths Application and Design Assistance 888.580.8272 925.439.8272 3D Modeling and CAD Drawings www.bwc.com/3dcad.php | ||||||||||
| Designed for Dirty and Severe Environments The patented 90° DualVee design creates a velocity gradient, since the circumference of the wheel is greater at the major diameter, resulting in a constant sweeping action that cleans debris from the track. | ||||||||||
| Double Row Angular Contact Bearing I • Lubed for Life \ • Designed for Radial and Axial Loads ^ Patented Mounting Shoulder • Quick and Accurate Installation • Unlimited Travel Lengths • Easily Butt-Joined | ||||||||||
