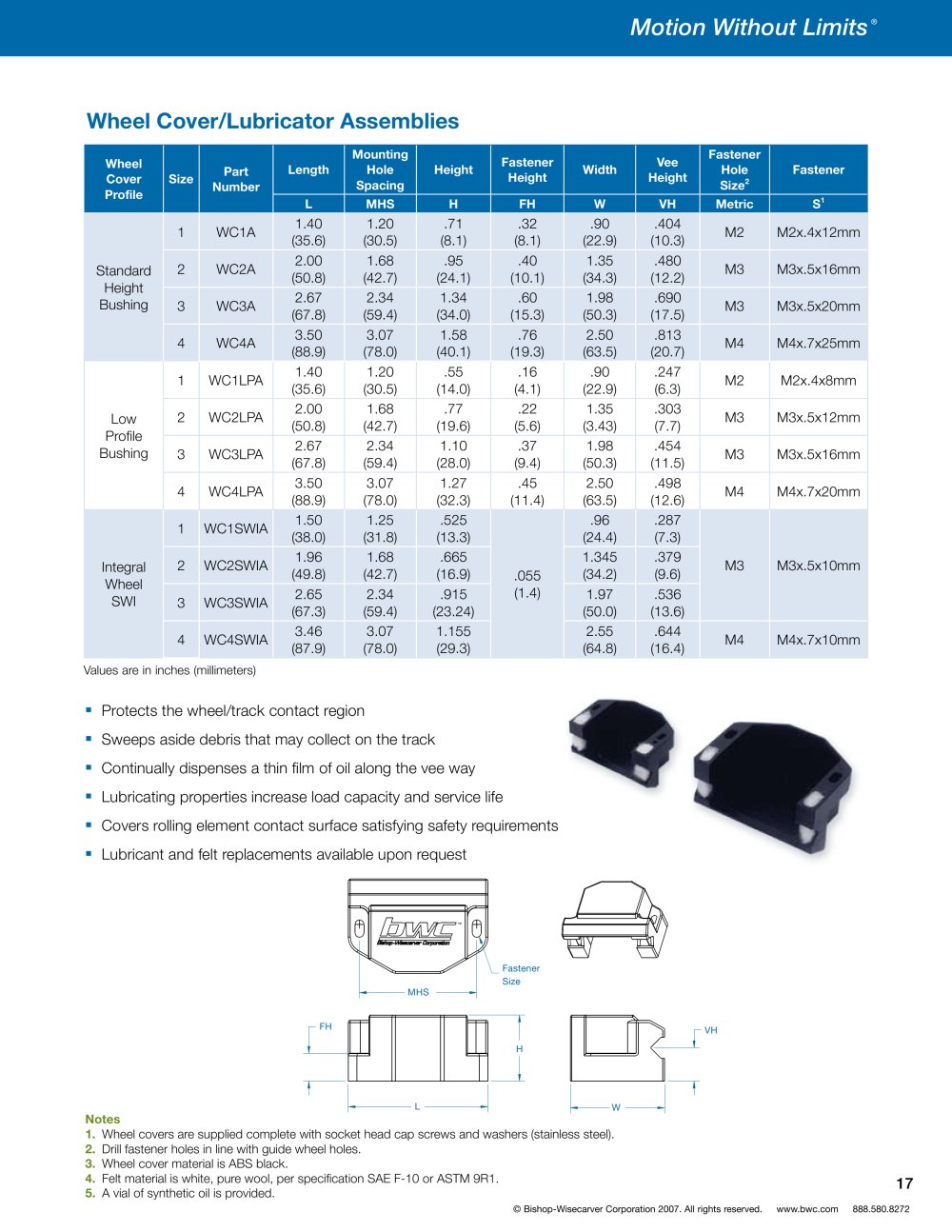

Motion Without Limits
Wheel Cover/Lubricator Assemblies
Mounting
Part
Length
Hole
Height
Number
Spacing
L
MHS
H
Fastener Height
Width
Vee Height
Fastener Hole Size2
FH
W
VH
Metric
Size
1.40 (35.6)
1.20 (30.5)
.71 (8.1)
.32 (8.1)
.90 (22.9)
.404 (10.3)
WC1A
M2
M2x.4x12mm
2
WC2A
2.00
1.68
.95
.40
1.35
.480
M3
M3x.5x16mm
(50.8)
(42.7)
(24.1)
(10.1)
(34.3)
(12.2)
3
WC3A
2.67
2.34
1.34
.60
1.98
.690
M3
M3x.5x20mm
(67.8)
(59.4)
(34.0)
(15.3)
(50.3)
(17.5)
4
WC4A
3.50
3.07
1.58
.76
2.50
.813
M4
M4x.7x25mm
(88.9)
(78.0)
(40.1)
(19.3)
(63.5)
(20.7)
1
WC1LPA
1.40
(35.6)
1.20 (30.5)
.55
(14.0)
.16 (4.1)
.90 (22.9)
.247 (6.3)
M2
M2x.4x8mm
2
WC2LPA
2.00 (50.8)
1.68 (42.7)
.77 (19.6)
.22 (5.6)
1.35 (3.43)
.303 (7.7)
M3
M3x.5x12mm
3
WC3LPA
2.67 (67.8)
2.34 (59.4)
1.10 (28.0)
.37 (9.4)
1.98 (50.3)
.454 (11.5)
M3
M3x.5x16mm
4
WC4LPA
3.50
(88.9)
3.07 (78.0)
1.27
(32.3)
.45 (11.4)
2.50 (63.5)
.498 (12.6)
M4
M4x.7x20mm
1
WC1SWIA
1.50 (38.0)
1.25 (31.8)
.525
(13.3)
.96 (24.4)
.287 (7.3)
2
WC2SWIA
1.96 (49.8)
1.68 (42.7)
.665 (16.9)
.055
1.345 (34.2)
.379 (9.6)
M3
M3x.5x10mm
3
WC3SWIA
2.65
(67.3)
2.34 (59.4)
.915 (23.24)
(1.4)
1.97 (50.0)
.536 (13.6)
4
WC4SWIA
3.46
(87.9)
3.07 (78.0)
1.155
(29.3)
2.55 (64.8)
.644 (16.4)
M4
M4x.7x10mm
Standard Height Bushing
Low Profile Bushing
Integral Wheel
Values are in inches (millimeters)
■ Protects the wheel/track contact region
■ Sweeps aside debris that may collect on the track
■ Continually dispenses a thin film of oil along the vee way
■ Lubricating properties increase load capacity and service life
■ Covers rolling element contact surface satisfying safety requirements
■ Lubricant and felt replacements available upon request
Fastener Size
FH
VH
H
Notes
1. Wheel covers are supplied complete with socket head cap screws and washers (stainless steel).
2. Drill fastener holes in line with guide wheel holes.
3. Wheel cover material is ABS black.
4. Felt material is white, pure wool, per specification SAE F-10 or ASTM 9R1. y
5. A vial of synthetic oil is provided.
