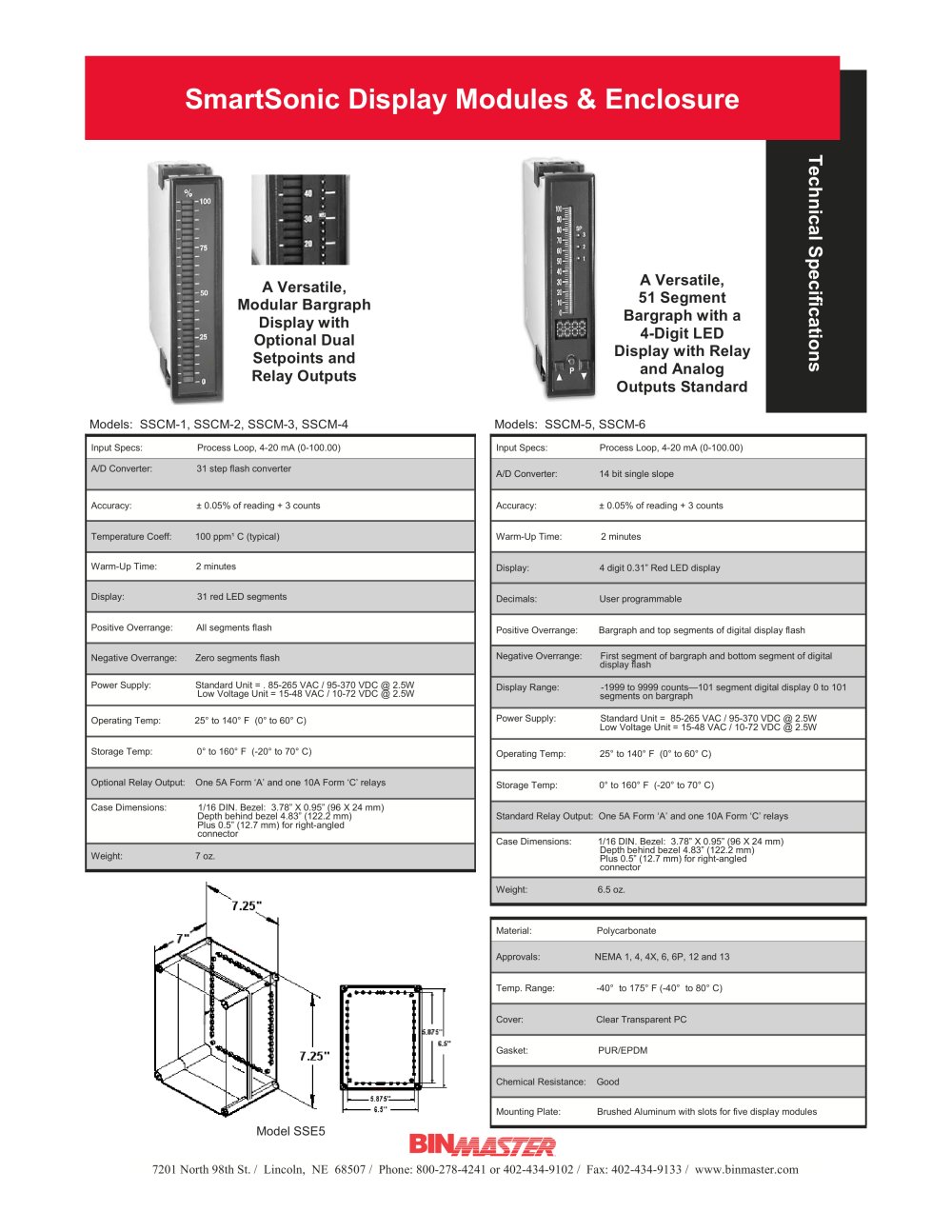

SmartSonic Display Modules & Enclosure

Technical Specifications

A Versatile, Modular Bargraph Display with Optional Dual Setpoints and Relay Outputs A Versatile, 51 Segment Bargraph with a 4-Digit LED Display with Relay and Analog Outputs Standard

Models: SSCM-1, SSCM-2, SSCM-3, SSCM-4 Models: SSCM-5, SSCM-6 Model SSE5

Input Specs: Process Loop, 4-20 mA (0-100.00) Input Specs: Process Loop, 4-20 mA (0-100.00) A/D Converter: 31 step flash converter A/D Converter: 14 bit single slope Accuracy: ± 0.05% of reading + 3 counts Accuracy: ± 0.05% of reading + 3 counts Temperature Coeff: 100 ppm¹ C (typical) Warm-Up Time: 2 minutes Warm-Up Time: 2 minutes Display: 4 digit 0.31” Red LED display Display: 31 red LED segments Decimals: User programmable Positive Overrange: All segments flash Positive Overrange: Bargraph and top segments of digital display flash Negative Overrange: Zero segments flash Negative Overrange: First segment of bargraph and bottom segment of digital display flash Power Supply: Standard Unit = . 85-265 VAC / 95-370 VDC @ 2.5W Low Voltage Unit = 15-48 VAC / 10-72 VDC @ 2.5W Display Range: -1999 to 9999 counts—101 segment digital display 0 to 101 segments on bargraph Operating Temp: 25° to 140° F (0° to 60° C) Power Supply: Standard Unit = 85-265 VAC / 95-370 VDC @ 2.5W Low Voltage Unit = 15-48 VAC / 10-72 VDC @ 2.5W Storage Temp: 0° to 160° F (-20° to 70° C) Operating Temp: 25° to 140° F (0° to 60° C) Optional Relay Output: One 5A Form ‘A’ and one 10A Form ‘C’ relays Storage Temp: 0° to 160° F (-20° to 70° C) Case Dimensions: 1/16 DIN. Bezel: 3.78” X 0.95” (96 X 24 mm) Depth behind bezel 4.83” (122.2 mm) Plus 0.5” (12.7 mm) for right-angled connector Standard Relay Output: One 5A Form ‘A’ and one 10A Form ‘C’ relays Case Dimensions: 1/16 DIN. Bezel: 3.78” X 0.95” (96 X 24 mm) Depth behind bezel 4.83” (122.2 mm) Plus 0.5” (12.7 mm) for right-angled connector Weight: 7 oz. Weight: 6.5 oz. Material: Polycarbonate Approvals: NEMA 1, 4, 4X, 6, 6P, 12 and 13 Temp. Range: -40° to 175° F (-40° to 80° C) Cover: Clear Transparent PC Gasket: PUR/EPDM Chemical Resistance: Good Mounting Plate: Brushed Aluminum with slots for five display modules

7201 North 98th St. / Lincoln, NE 68507 / Phone: 800-278-4241 or 402-434-9102 / Fax: 402-434-9133 / www.binmaster.com
