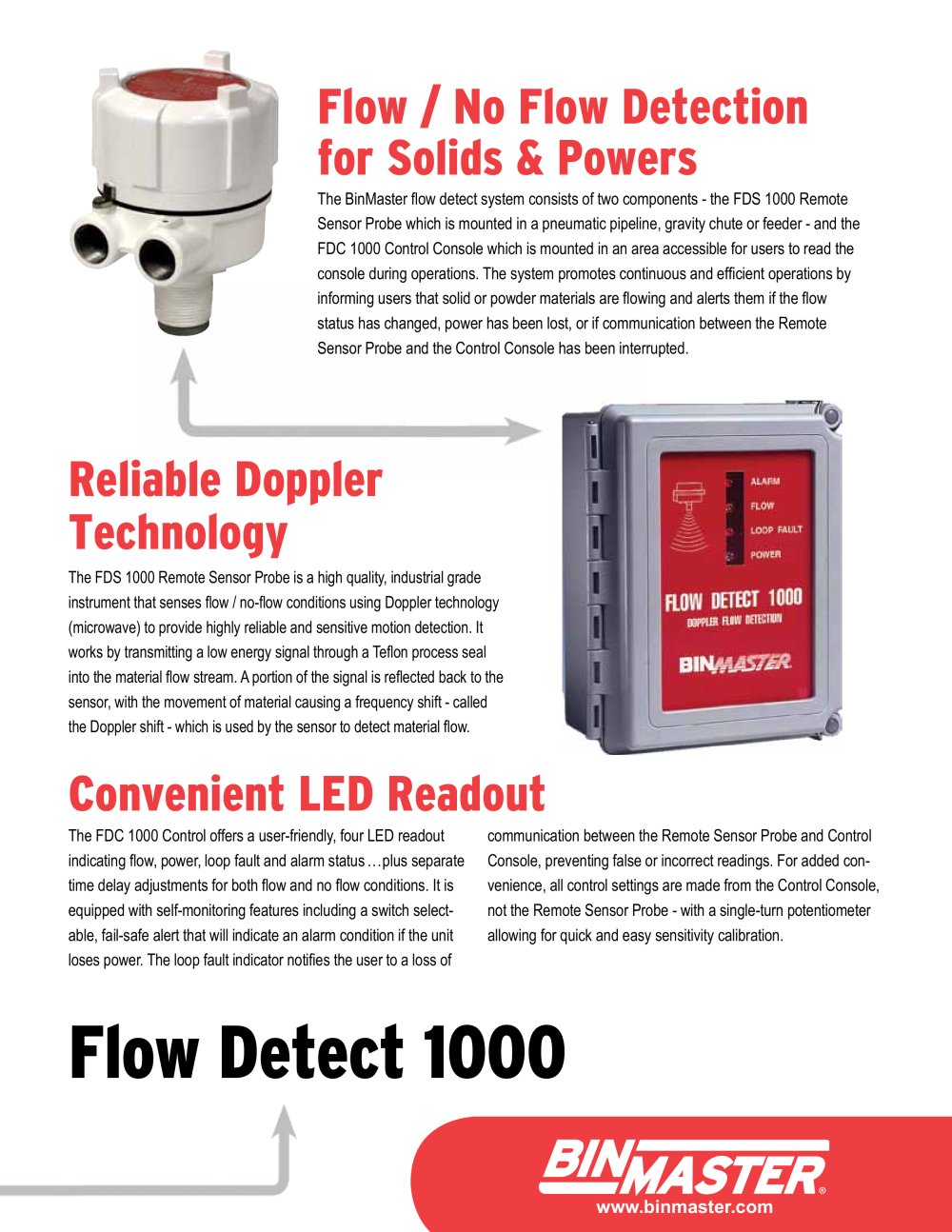

Flow / No Flow Detection for Solids & Powders The BinMaster flow detect system consists of two components - the FDS 1000 Remote Sensor Probe which is mounted in a pneumatic pipeline, gravity chute or feeder - and the FDC 1000 Control Console which is mounted in an area accessible for users to read the console during operations. The system promotes continuous and efficient operations by informing users that solid or powder materials are flowing and alerts them if the flow status has changed, power has been lost, or if communication between the Remote Sensor Probe and the Control Console has been interrupted.

Reliable Doppler Technology The FDS 1000 Remote Sensor Probe is a high quality, industrial grade instrument that senses flow / no-flow conditions using Doppler technology (microwave) to provide highly reliable and sensitive motion detection. It works by transmitting a low energy signal through a Teflon process seal into the material flow stream. A portion of the signal is reflected back to the sensor, with the movement of material causing a frequency shift - called the Doppler shift - which is used by the sensor to detect material flow.

Convenient LED Readout

The FDC 1000 Control Console offers a user-friendly, four LED readout indicating flow, power, loop fault, and alarm status ... plus separate time delay adjustments for both flow and no flow conditions. It is equipped with self-monitoring features including a switch selectable, fail-safe alert that will indicate an alarm condition if the unit loses power. The loop fault indicator notifies the user to a loss of communication	between the Remote Sensor Probe and Control Console, preventing false or incorrect readings. For added convenience, all control settings are made from the Control Console, not the Remote Sensor Probe - with a single-turn potentiometer allowing for quick and easy sensitivity calibration.
