BinMaster 3DLevelScanner Technical Data - BinMaster - #8

Text version of the page

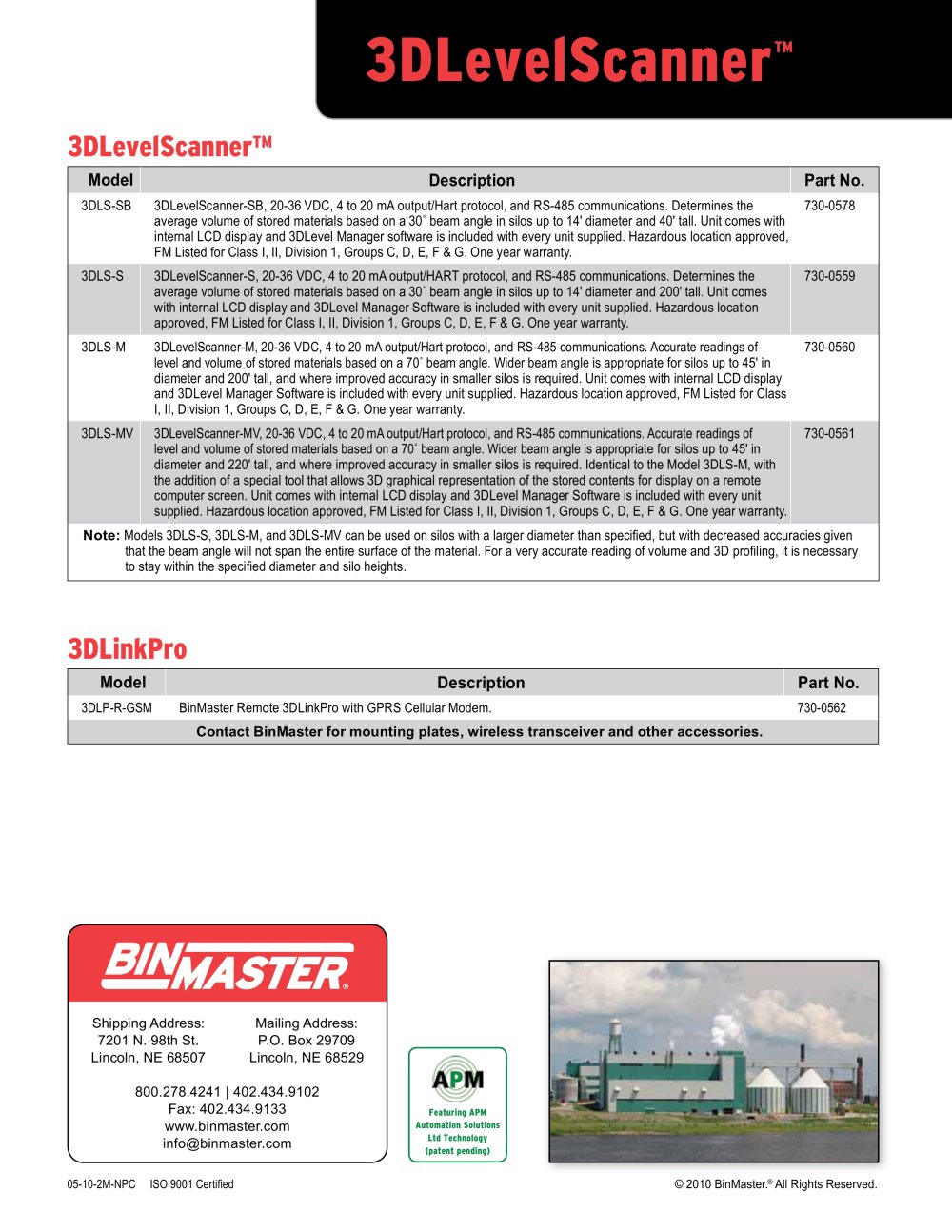

Shipping Address: 7201 N. 98th St. Lincoln, NE 68507 Mailing Address: P.O. Box 29709 Lincoln, NE 68529 800.278.4241 | 402.434.9102 Fax: 402.434.9133 www.binmaster.com info@binmaster.com Featuring APM Automation Solutions Ltd Technology (patent pending) 3DLevelScanner™ 3DLevelScanner™ Model Description Part No. 3DLS-SB 3DLevelScanner-SB, 20-36 VDC, 4 to 20 mA output/Hart protocol, and RS-485 communications. Determines the average volume of stored materials based on a 30¢ª beam angle in silos up to 14' diameter and 40' tall. Unit comes with internal LCD display and 3DLevel Manager software is included with every unit supplied. Hazardous location approved, FM Listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty. 730-0578 3DLS-S 3DLevelScanner-S, 20-36 VDC, 4 to 20 mA output/HART protocol, and RS-485 communications. Determines the average volume of stored materials based on a 30¢ª beam angle in silos up to 14' diameter and 200' tall. Unit comes with internal LCD display and 3DLevel Manager Software is included with every unit supplied. Hazardous location approved, FM Listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty. 730-0559 3DLS-M 3DLevelScanner-M, 20-36 VDC, 4 to 20 mA output/Hart protocol, and RS-485 communications. Accurate readings of level and volume of stored materials based on a 70¢ª beam angle. Wider beam angle is appropriate for silos up to 45' in diameter and 200' tall, and where improved accuracy in smaller silos is required. Unit comes with internal LCD display and 3DLevel Manager Software is included with every unit supplied. Hazardous location approved, FM Listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty. 730-0560 3DLS-MV 3DLevelScanner-MV, 20-36 VDC, 4 to 20 mA output/Hart protocol, and RS-485 communications. Accurate readings of level and volume of stored materials based on a 70¢ª beam angle. Wider beam angle is appropriate for silos up to 45' in diameter and 220' tall, and where improved accuracy in smaller silos is required. Identical to the Model 3DLS-M, with the addition of a special tool that allows 3D graphical representation of the stored contents for display on a remote computer screen. Unit comes with internal LCD display and 3DLevel Manager Software is included with every unit supplied. Hazardous location approved, FM Listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty. 730-0561 Note: Models 3DLS-S, 3DLS-M, and 3DLS-MV can be used on silos with a larger diameter than specified, but with decreased accuracies given that the beam angle will not span the entire surface of the material. For a very accurate reading of volume and 3D profiling, it is necessary to stay within the specified diameter and silo heights. 3DLinkPro Model Description Part No. 3DLP-R-GSM BinMaster Remote 3DLinkPro with GPRS Cellular Modem. 730-0562 Contact BinMaster for mounting plates, wireless transceiver and other accessories. 05-10-2M-NPC ISO 9001 Certified © 2010 BinMaster.® All Rights Reserved.
