New Bihler GRM 80P punch-bending machine

New Bihler GRM 80P punch-bending machine
2Pages

Catalog excerpts

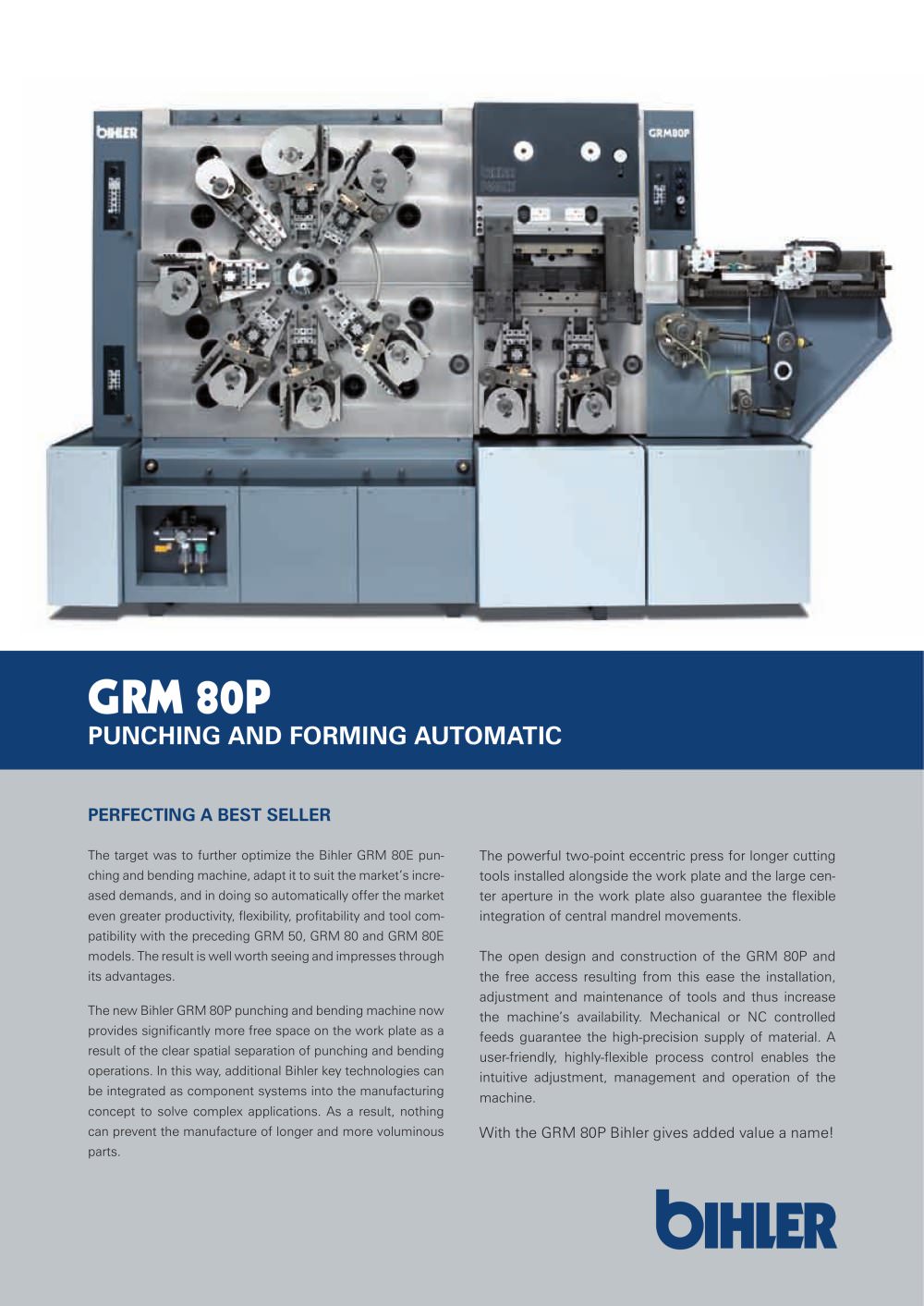

New Bihler GRM 80P punch-bending machine - 1

The target was to further optimize the Bihler GRM 80E pun-ching and bending machine, adapt it to suit the markets incre- ased demands, and in doing so automatically offer the market even greater productivity, flexibility, profitability and tool com- patibility with the preceding GRM 50, GRM 80 and GRM 80E models. The result is well worth seeing and impresses through its advantages. The new Bihler GRM 80P punching and bending machine now provides significantly more free space on the work plate as a result of the clear spatial separation of punching and bending operations. In this way, additional Bihler key technologies can be integrated as component systems into the manufacturing concept to solve complex applications. As a result, nothing can prevent the manufacture of longer and more voluminous parts. The powerful two-point eccentric press for longer cutting tools installed alongside the work plate and the large cen- ter aperture in the work plate also guarantee the flexible integration of central mandrel movements. The open design and construction of the GRM 80P and the free access resulting from this ease the installation, adjustment and maintenance of tools and thus increase the machineҒs availability. Mechanical or NC controlled feeds guarantee the high-precision supply of material. A user-friendly, highly-flexible process control enables the intuitive adjustment, management and operation of the machine. >

Open the catalog to page 1

New Bihler GRM 80P punch-bending machine - 2

System concept Housing with single processing side; 26 drive positions for radial and linear manufacturing; rear side with 10 drive positions for diverse central mandrel movements; enlarged center aperture (diameter 150 mm, width 270 mm, height 70 mm)Stroke rate Infinitely variable from approximately 5 to a max. of 250 rpm Drive Infinitely adjustable drive; nominal drive power 8.5 kW Control VariControl VC1-E process control in separate, stand-alone control cabinet 700x700x2100 mm with power supply unit and electronic control and monitoring system; operating panel with 15 TFT touch screen...
