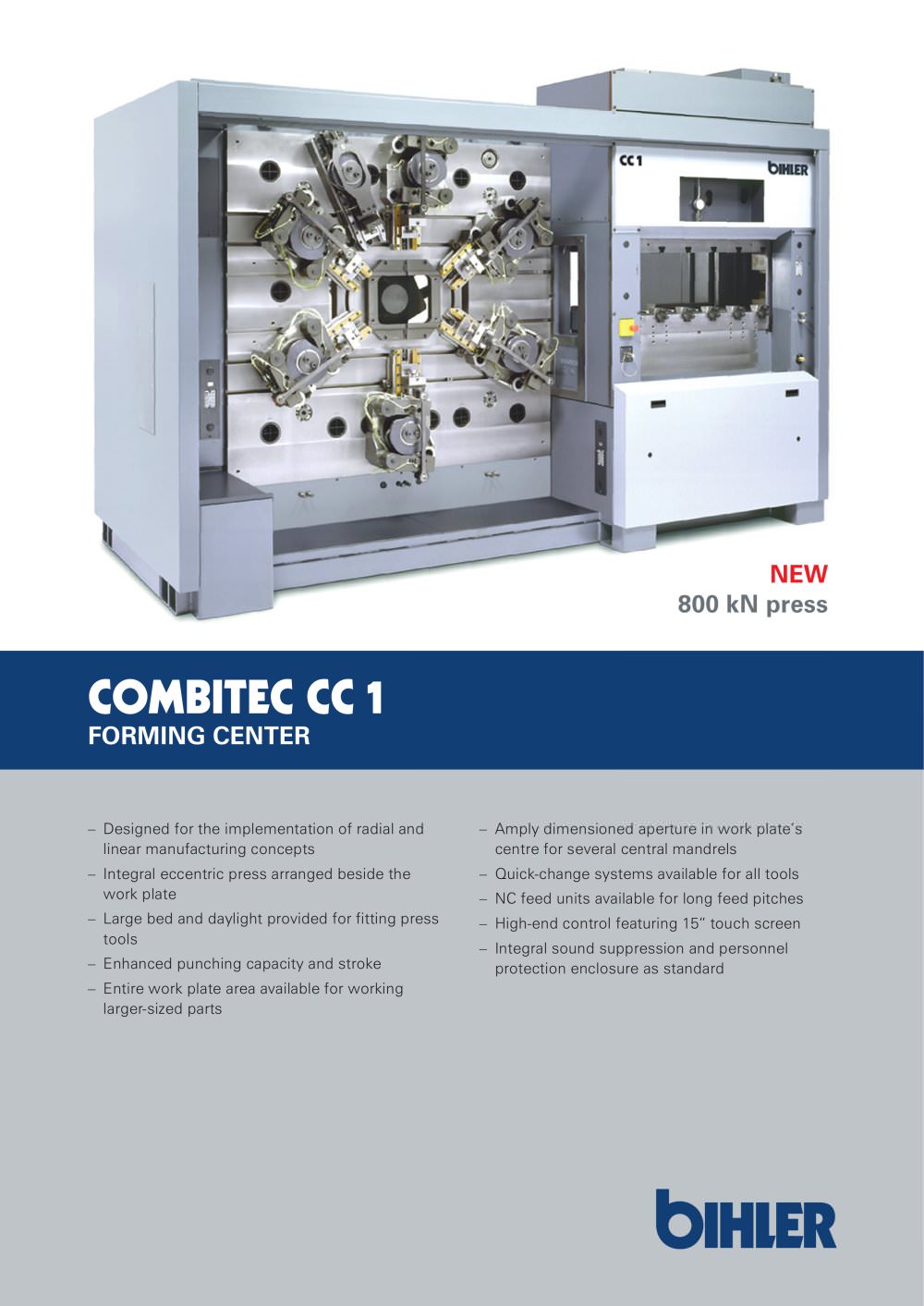

FORMING CENTER > Designed for the implementation of radial and linear manufacturing concepts ֖ Integral eccentric press arranged beside the work plate Large bed and daylight provided for fitting press tools֖ Enhanced punching capacity and stroke Entire work plate area available for working larger-sized parts ֖ Amply dimensioned aperture in work plates centre for several central mandrels Җ Quick-change systems available for all tools NC feed units available for long feed pitches ֖ High-end control featuring 15 touch screen Ӗ Integral sound suppression and personnel protection enclosure as standard size="-1">

System concept Housing with one processing face; 19 drive positions for radial and linear proces - sing; rear face with 8 drive positions suited for several central mandrels; central aperture 780 mm wide and 280 mm highStroking rate Steplessly adjustable between about 5 SPM and max. 200 SPM.Drive Frequency-controlled with range of force 22 kW; combined clutch/brake unit for short braking anglesControl Highly flexible VariControl VC 1 process control user friendly via 15 touch display, accomodated in a separate stand-alone control cabinet, swivelling control box mounted on over arm (available...
