Opens the future

□832243 00201

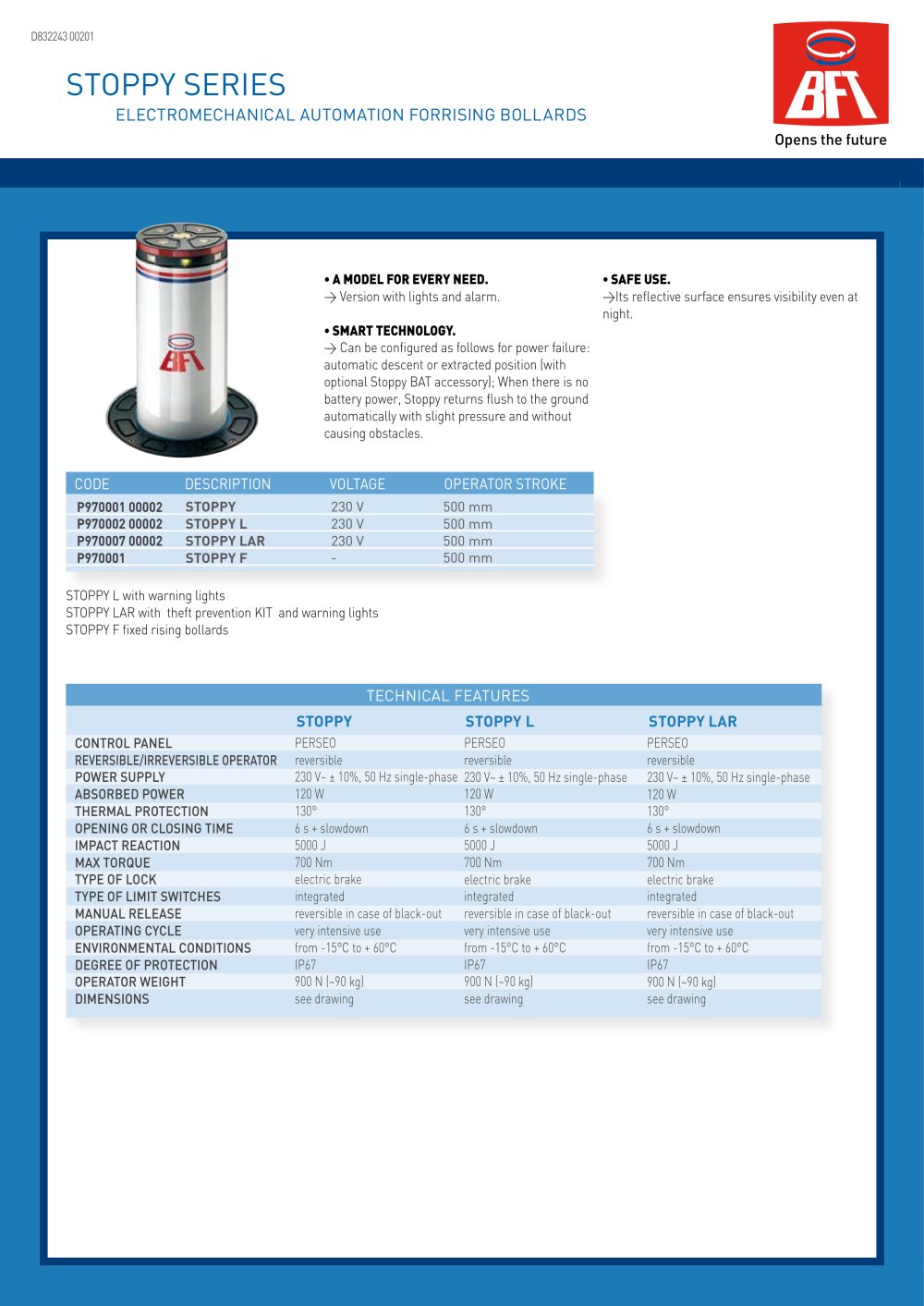

STOPPYSERIES

ELECTROMECHANICAL AUTOMATION FORRISING BOLLARDS

■

•AMODELFOREVERYNEED. 'SAFEUSE.

-> Version with lights and alarm. ->lts reflective surface ensures visibility even at

night.

•SMARTTECHNOLOGY.

-> Can be configured as follows for power failure: automatic descent or extracted position (with optional Stoppy BAT accessory); When there is no battery power, Stoppy returns Rush to the ground automaticallywith slight pressure and without causing obstacles.



P970001 00002	STOPPY	230 V	500 mm
P970002 00002	STOPPY L	230 V	500 mm
P970007 00002	STOPPY LAR	230 V	500 mm
P970001	STOPPY F	-	500 mm

STOPPY Lwith warning lights

STOPPYLARwith theftprevention KIT andwarninglights STOPPY Ffixed rising bollards


TECHNICAL FEATURES
	STOPPY	STOPPY L	STOPPY LAR
CONTROLPANEL	PERSE0	PERSEO	PERSEO
REVERSIBLE/IRREVERSIBLE OPERATOR	reversible	reversible	reversible
POWERSUPPLY	230 V~ ± 10%, 50 Hz single-phase 230 V~ ± 10%, 50 Hz single-phase		230V- ± 10%, 50 Hz single-phase
ABSORBEDPOWER	120W	120W	120W
THERMAL PROTECTION	130°	130°	130°
OPENING OR CLOSING TIME	6 s + slowdown	6 s + slowdown	6 s + slowdown
IMPACT REACTION	5000 J	5000 J	5000 J
MAX TORQUE	700 Nm	700 Nm	700 Nm
TYPE OFLOCK	electric brake	electric brake	electric brake
TYPE OFLIMITSWITCHES	integrated	integrated	integrated
MANUAL RELEASE	reversible in case ofblack-out	reversible in case of black-out	reversible in case of black-out
OPERATING CYCLE	very intensive use	veryintensiveuse	veryintensiveuse
ENVIRONMENTAL CONDITIONS	from-15°Cto + 60°C	from-15°Cto + 60°C	from-15°Cto + 60°C
DEGREE OF PROTECTION	IP67	IP67	IP67
OPERATORWEIGHT	900 N (-90 kg)	900 N (-90 kg)	900 N (-90 kg)
DIMENSIONS	seedrawing	seedrawing	seedrawing
