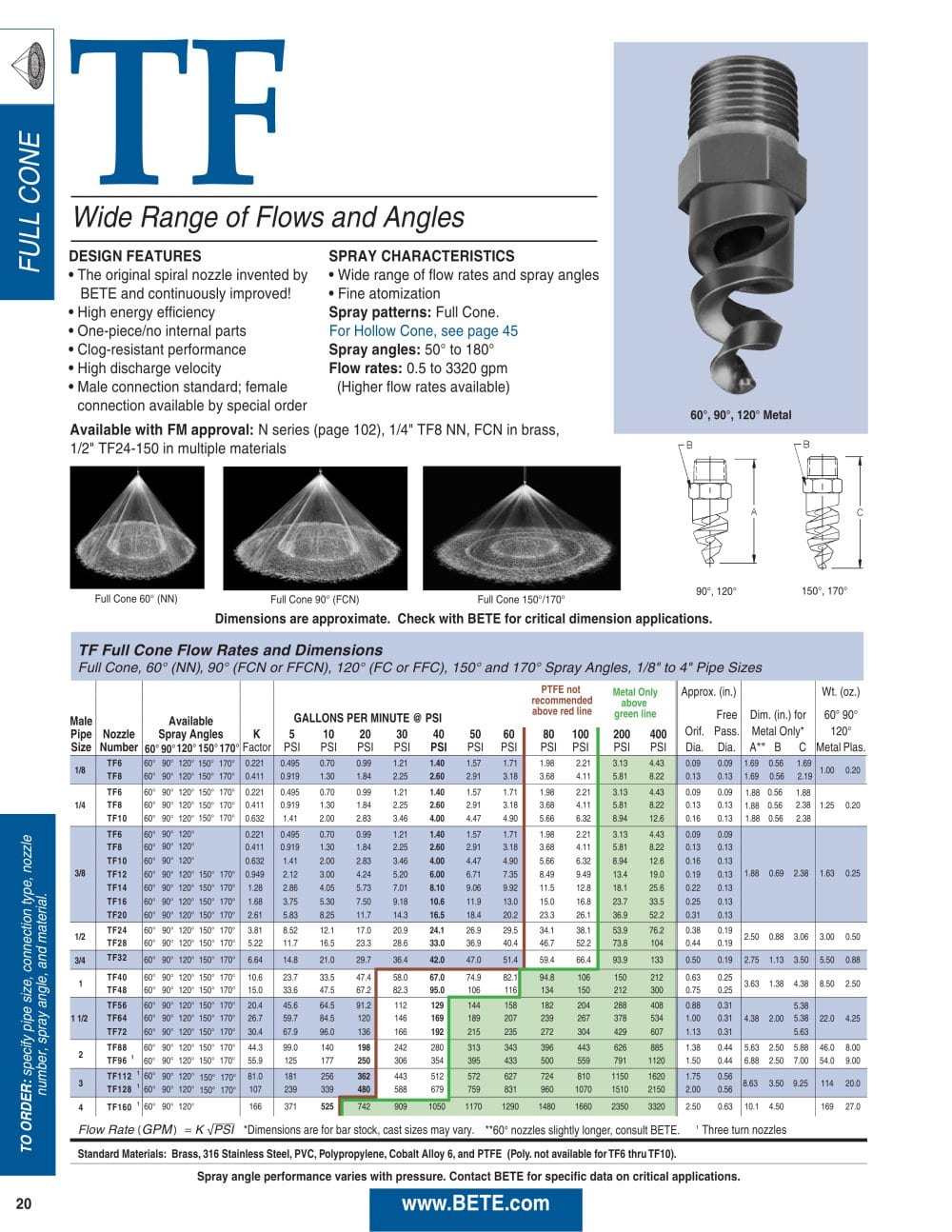

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:4.80pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:5.40pt "Arial", sans-serif; } .font4 { font:6.00pt "Arial", sans-serif; } .font5 { font:7.00pt "Arial", sans-serif; } .font6 { font:7.20pt "Arial", sans-serif; } .font7 { font:8.00pt "Arial", sans-serif; } .font8 { font:9.00pt "Arial", sans-serif; } .font9 { font:10.50pt "Arial", sans-serif; } .font10 { font:13.00pt "Arial", sans-serif; } .font11 { font:16.00pt "Arial", sans-serif; } Wide Range of Flows and Angles DESIGN FEATURES • The original spiral nozzle invented by BETE and continuously improved! • High energy efficiency • One-piece/no internal parts • Clog-resistant performance • High discharge velocity • Male connection standard; female connection available by special order • TF24-150 has FM approval SPRAY CHARACTERISTICS • Wide range of flow rates and spray angles • Fine atomization Spray patterns: Full and Hollow Cone Spray angles: 50° to 180° Flow rates: 2.26 to 10700 l/min (Higher flow rates available) 90°, 120° 150°, 170° Full Cone 60° (NN) Full Cone 90° (FCN) Full Cone 1507170° Dimensions are approximate. Check with BETE for critical dimension applications TF FuII Cone FIow Rates and Dimensions Full Cone, 60° (NN), 90° (FCN or FFCN), 120° (FC or FFC), 150° and 170° Spray Angles, 1/8" to 4" Pipe Sizes, BSP or NPT Male Available Above 5 bar not recom. for LITERS PER MINUTE @ BARPTFE High Pressure Opération recom. for Metal Only Approx. (mm) Free Dim. (mm) for Wt. (g) 60° 90° Pipe Nozzle Spray Angles K 0.5 0.7 1 2 3 5 10 20 Orif. Pass Metal Only* 120° Size Number 60°90o120o150o170° Factor bar bar bar bar bar bar bar bar Dia. Dia. A B C Metal Plas. 1/8 TF6 60° 90°120°150°170° 3.19 2.26 2.67 3.19 4.5 5.5 7.1 10.1 14.3 2.38 2.38 42.9 14.3 42.9 28 6 TF8 60° 90° 120° 150° 170° 5.93 4.19 4.96 5.93 8.4 10.3 13.2 18.7 26.5 3.18 3.18 42.9 14.3 55.6 TF6 60° 90°120°150°170° 3.19 2.26 2.67 3.19 4.5 5.5 7.1 10.1 14.3 2.38 2.38 47.6 14.3 47.6 1/4 TF8 60° 90° 120° 150° 170° 5.93 4.19 4.96 5.93 8.4 10.3 13.2 18.7 26.5 3.18 3.18 47.6 14.3 60.3 35 6 TF10 60° 90° 120° 150° 170° 9.12 6.45 7.63 9.12 12.9 15.8 20.4 28.8 40.8 3.97 3.18 47.6 14.3 60.3 TF6 60° 90°120° 3.19 2.26 2.67 3.19 4.5 5.5 7.1 10.1 14.3 2.38 2.38 TF8 60° 90°120° 5.93 4.19 4.96 5.93 8.4 10.3 13.2 18.7 26.5 3.18 3.18 TF10 60° 90°120° 9.12 6.45 7.63 9.12 12.9 15.8 20.4 28.8 40.8 3.97 3.18 3/8 TF12 60° 90° 120° 150° 170° 13.7 9.67 11.4 13.7 19.3 23.7 30.6 43.2 61.1 4.76 3.18 47.6 17.5 60.5 46 7 TF14 60° 90° 120° 150° 170° 18.5 13.1 15.4 18.5 26.1 32.0 41.3 58.4 82.6 5.56 3.18 TF16 60° 90° 120° 150° 170° 24.2 17.1 20.2 24.2 34.2 41.8 54.0 76.4 108 6.35 3.18 TF20 60° 90° 120° 150° 170° 37.6 26.6 31.5 37.6 53.2 65.1 84.1 119 168 7.94 3.18 1/2 TF24 TF28 60° 90° 120° 150° 170° 60° 90° 120° 150° 170° 54.9 75.2 38.8 53.2 46.0 62.9 54.9 75.2 77.7 106 95.1 130 123 168 174 238 246 336 9.53 11.1 4.76 4.76 63.5 22.2 77.7 85 14 3/4 TF32 60° 90° 120° 150° 170° 95.7 67.7 80.1 95.7 135 166 214 303 428 12.7 4.76 69.9 28.6 88.9 156 25 1 TF40 60° 90° 120° 150° 170° 153 108 128 153 216 264 341 483 683 15.9 6.35 92.1 34.9 111 241 71 TF48 60° 90° 120° 150° 170° 217 153 181 216 306 375 484 685 968 19.1 6.35 TF56 60° 90° 120° 150° 170° 294 208 246 294 416 509 657 930 1320 22.2 7.94 111 50.8 137 1 1/2 TF64 60° 90° 120° 150° 170° 385 272 322 385 545 667 861 1220 1720 25.4 7.94 111 50.8 137 624 120 TF72 60° 90° 120° 150° 170° 438 309 366 438 619 758 978 1380 1960 28.6 7.94 111 50.8 143 2 TF88 60° 90° 120° 150° 170° 638 451 534 638 902 1110 1430 2020 2850 34.9 11.1 143 63.5 175 1300 227 TF961 60° 90°120°150°170° 806 570 674 806 1140 1400 1800 2550 3600 38.1 11.1 176 63.5 178 1530 255 3 TF1121 TF1281 60° 90° 120°150°170° 60° 90° 120°150°170° 1170 1550 825 1090 976 1290 1170 1550 1650 2190 2020 2680 2610 3460 3690 4891 5220 6920 44.5 50.8 14.3 14.3 219 88.9 235 3230 567 4 TF1601 60° 90° 120° 2390 1690 2000 2390 3380 4140 5350 7570 10700 63.5 15.9 257 114 4790 765 !<5 ta | o <D C c 8 C ce .n cg <D CD Si s8 Flow Rate ( ^min ) = KV bar * D i mensions are for bar stock, cast sizes may vary. **60° nozzles slightly longer; call BETE for détails 1 Three turn nozzles Standard Materials: Brass, 316 Stainless Steel, PVC, Polypropylene and PTFE (Poly. not available for TF6 thru TF1 0). Spray angle performance varies with pressure. Contact BETE for specific data on critical applications. 18 www.BETE.com
