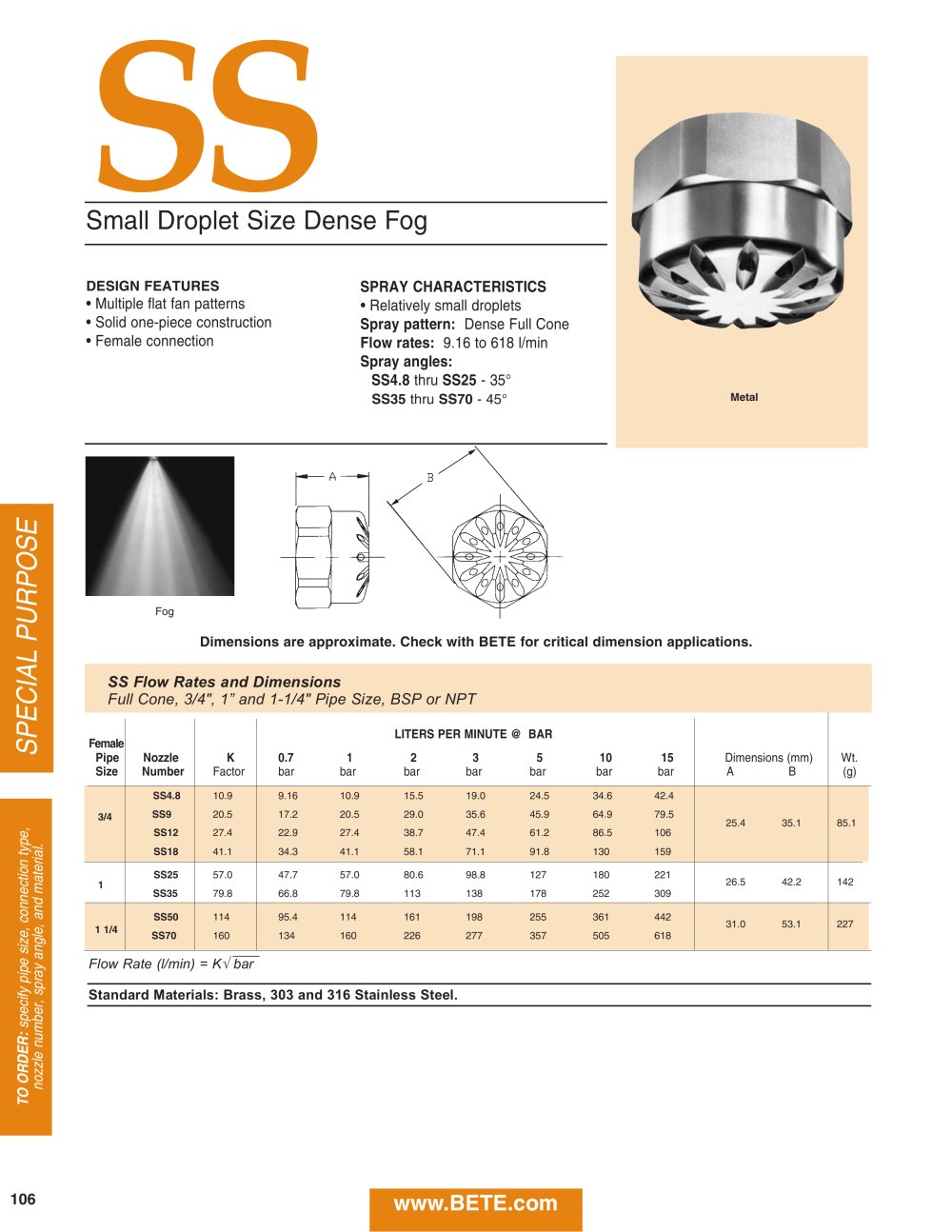

SS Small Droplet Size Dense Fog

SPRAY CHARACTERISTICS Spray pattern: Dense Full Cone • Relatively small droplets Flow rates: 9.16 to 618 l/min DESIGN FEATURES Spray angles:SS4.8 • Multiple flat fan patterns• Solid one-piece construction • Female connection thru SS25 - 35° SS35 thru SS70 - 45°

Metal Fog

Dimensions are approximate. Check with BETE for critical dimension applications. SS Flow Rates and Dimensions Full Cone, 3/4", 1” and 1-1/4" Pipe Size, BSP or NPT

LITERS PER MINUTE @ BARFemalePipe NozzleK0.712351015

SPECIAL PURPOSE

Dimensions (mm)Wt. Size Number FactorbarbarbarbarbarbarbarAB (g)

SS4.8 10.99.1610.915.519.024.534.642.4 3/4SS9 20.517.220.529.035.645.964.979.525.435.185.1 SS12 27.422.927.438.747.461.286.5106 SS18 41.134.341.158.171.191.8130159 SS25 57.047.757.080.698.812718022126.542.2142 1SS35 79.866.879.8113138178252309 SS50 11495.411416119825536144231.053.1227 1 1/4SS70 160134160226277357505618

Flow Rate (l/min) = K √ bar Standard Materials: Brass, 303 and 316 Stainless Steel.

specify pipe size, connection type, nozzle number, spray angle, and material. TO ORDER:

106
