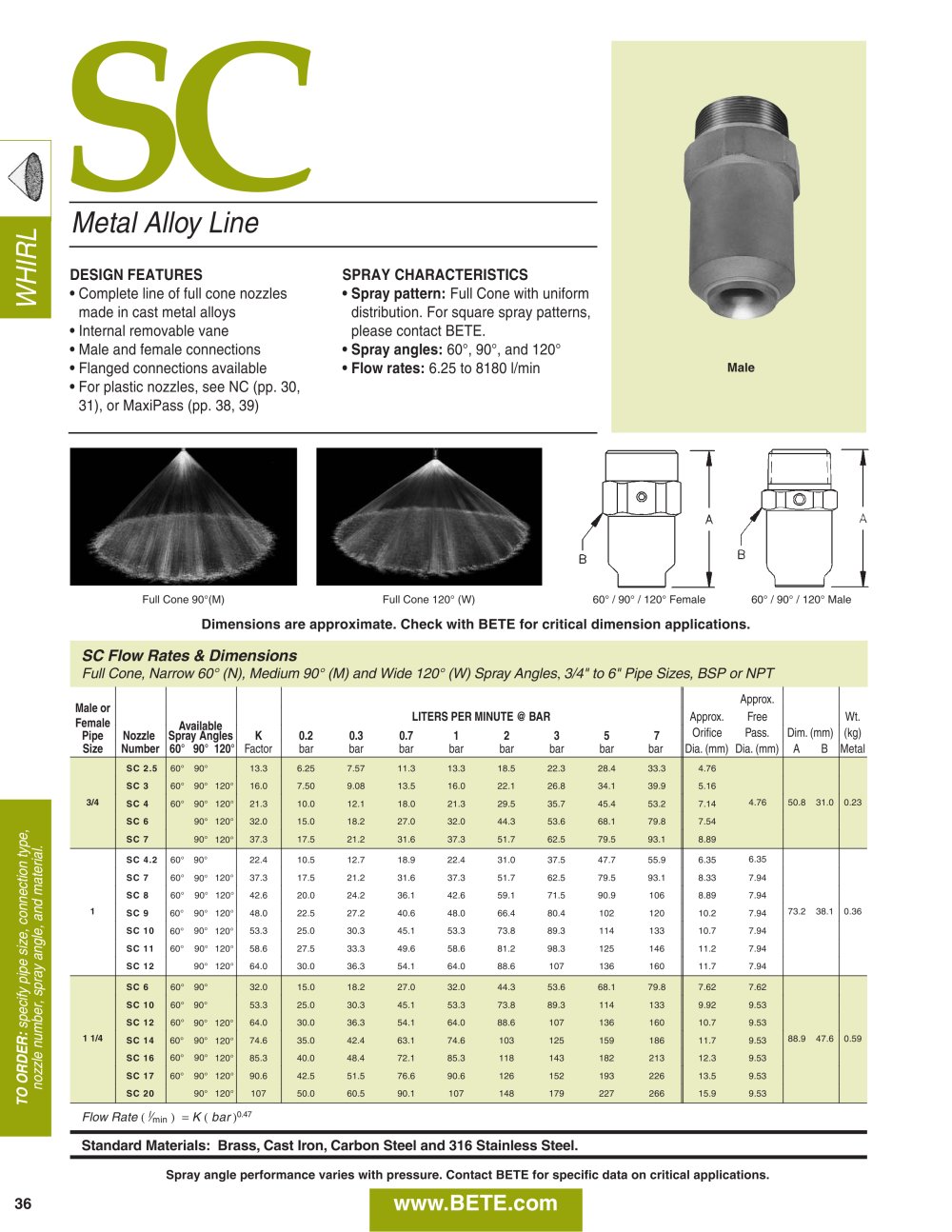

Metal Alloy Line
1
DESIGN FEATURES
• Complète line of full cone nozzles made in cast metal alloys
• Internal removable vane
• Male and female connections
• Flanged connections available
• For plastic nozzles, see NC (pp. 30, 31), or MaxiPass (pp. 38, 39)
SPRAY CHARACTERISTICS
• Spray pattern: Full Cone with uniform distribution. For square spray patterns, please contact BETE.
• Spray angles: 60°, 90°, and 120°
• Flow rates: 6.25 to 8180 l/min
Full Cone 90°(M) Full Cone 120° (W) 60° / 90° / 120° Female 60° / 90° / 120° Male
Dimensions are approximate. Check with BETE for critical dimension applications. SC FIow Rates & Dimensions
Full Cone, Narrow 60° (N), Medium 90° (M) and Wide 120° (W) Spray Angles, 3/4" to 6" Pipe Sizes, BSP or NPT
Male or Female Pipe Size
Nozzle Number
Available Spray Angles 60° 90° 120°
K
Factor
0.2
bar
0.3
bar
LITERS PER MINUTE @ BAR
0.7 1 2 3
bar bar bar bar
5
bar
7
bar
Approx. Approx. Free Orifice Pass. Dia. (mm) Dia. (mm)
Dim. (mm) A B
Wt.
(kg)
Metal
SC 2.5
60°
90°
13.3
6.25
7.57
11.3
13.3
18.5
22.3
28.4
33.3
4.76
SC 3
60°
90°
120°
16.0
7.50
9.08
13.5
16.0
22.1
26.8
34.1
39.9
5.16
3/4
SC 4
60°
90°
120°
21.3
10.0
12.1
18.0
21.3
29.5
35.7
45.4
53.2
7.14
4.76
50.8 31.0
0.23
SC 6
90°
120°
32.0
15.0
18.2
27.0
32.0
44.3
53.6
68.1
79.8
7.54
SC 7
90°
120°
37.3
17.5
21.2
31.6
37.3
51.7
62.5
79.5
93.1
8.89
SC 4.2
60°
90°
22.4
10.5
12.7
18.9
22.4
31.0
37.5
47.7
55.9
6.35
6.35
SC 7
60°
90°
120°
37.3
17.5
21.2
31.6
37.3
51.7
62.5
79.5
93.1
8.33
7.94
SC 8
60°
90°
120°
42.6
20.0
24.2
36.1
42.6
59.1
71.5
90.9
106
8.89
7.94
1
SC 9
60°
90°
120°
48.0
22.5
27.2
40.6
48.0
66.4
80.4
102
120
10.2
7.94
73.2 38.1
0.36
SC 10
60°
90°
120°
53.3
25.0
30.3
45.1
53.3
73.8
89.3
114
133
10.7
7.94
SC 11
60°
90°
120°
58.6
27.5
33.3
49.6
58.6
81.2
98.3
125
146
11.2
7.94
SC 12
90°
120°
64.0
30.0
36.3
54.1
64.0
88.6
107
136
160
11.7
7.94
SC 6
60°
90°
32.0
15.0
18.2
27.0
32.0
44.3
53.6
68.1
79.8
7.62
7.62
SC 10
60°
90°
53.3
25.0
30.3
45.1
53.3
73.8
89.3
114
133
9.92
9.53
SC 12
60°
90°
120°
64.0
30.0
36.3
54.1
64.0
88.6
107
136
160
10.7
9.53
1 1/4
SC 14
60°
90°
120°
74.6
35.0
42.4
63.1
74.6
103
125
159
186
11.7
9.53
88.9 47.6
0.59
SC 16
60°
90°
120°
85.3
40.0
48.4
72.1
85.3
118
143
182
213
12.3
9.53
SC 17
60°
90°
120°
90.6
42.5
51.5
76.6
90.6
126
152
193
226
13.5
9.53
SC 20
90°
120°
107
50.0
60.5
90.1
107
148
179
227
266
15.9
9.53
CD
1? C:
ce
E
.g o
CD
c c o o
T3 C ce
.N ts
CD CD Lu
88
Flow Rate ( /mn ) = K ( bar)047
Standard Materials: Brass, Cast Iron, Carbon Steel and 316 Stainless Steel.
Spray angle performance varies with pressure. Contact BETE for specific data on critical applications.
36
www.BETE.com
