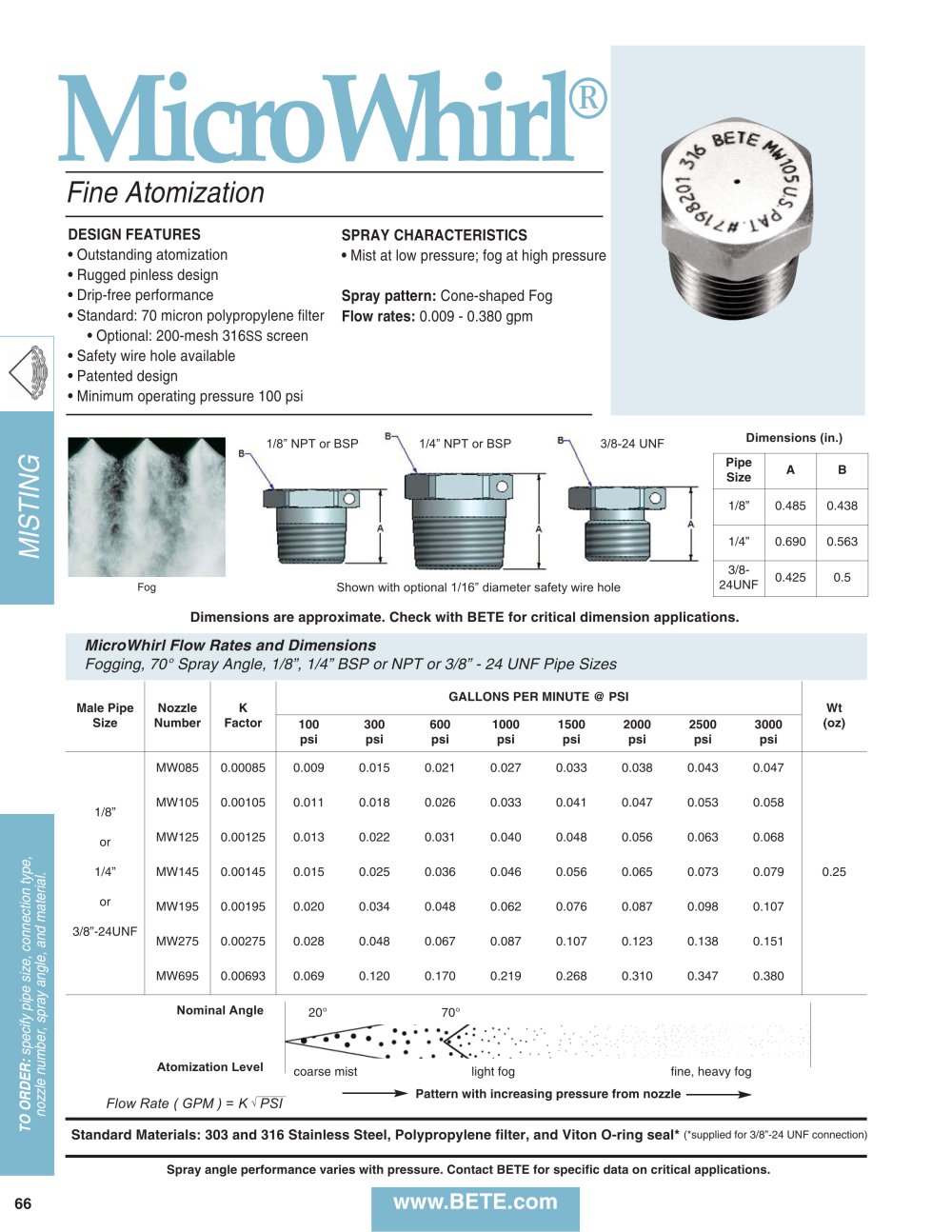

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:4.80pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:7.20pt "Arial", sans-serif; } .font5 { font:8.00pt "Arial", sans-serif; } .font6 { font:9.00pt "Arial", sans-serif; } .font7 { font:10.00pt "Arial", sans-serif; } .font8 { font:10.50pt "Arial", sans-serif; } .font9 { font:13.00pt "Arial", sans-serif; } .font10 { font:16.00pt "Arial", sans-serif; } .font11 { font:45.00pt "Arial", sans-serif; } .font12 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font13 { font:55.00pt "Palatino Linotype", serif; } roVVhirF Fine Atomization SPRAY CHARACTERISTICS • Mist at low pressure; fog at high pressure Spray pattern: Cone-shaped Fog Flow rates: 0.032 to 1.413 l/min DESIGN FEATURES • Outstanding atomization • Rugged pinless design • Drip-free performance • 70 micron polypropylene filter • Safety wire hole available • U.S. Patent #7198201 Metal Dimensions (mm) Shown with optional 1.59mm (1/16") diameter safety wire hole Pipe Size A B 1/8" 12.3 11.1 1/4" 17.5 14.3 3/8-24UNF 10.8 12.7 Dimensions are approximate. Check with BETE for critical dimension applications. MicroWhirl Flow Rates and Dimensions Fogging, 70° Spray Angle, 1/8", 1/4" BSP or NPT or 3/8" - 24 UNF Pipe Sizes Male Pipe Nozzle K LITERS PER MINUTE @ BAR Wt Size Number Factor 7 bar 20 bar 40 bar 70 bar 100 bar 140 bar 170 bar 200 bar (g) MW085 0.0122 0.032 0.055 0.077 0.102 0.122 0.145 0.160 0.173 1/8" MW105 0.0151 0.040 0.068 0.096 0.127 0.151 0.179 0.197 0.214 or MW125 0.0180 0.048 0.081 0.114 0.151 0.180 0.213 0.235 0.255 1/4" MW145 0.0209 0.055 0.093 0.132 0.175 0.209 0.247 0.272 0.296 7.09 or MW195 0.0281 0.074 0.126 0.178 0.235 0.281 0.332 0.366 0.397 3/8"-24UNF MW275 0.0396 0.105 0.177 0.251 0.332 0.396 0.469 0.517 0.560 MW695 0.09988 0.316 0.447 0.632 0.836 0.999 1.182 1.302 1.413 Nominal Angle 20° 70° Atomization Level mist light fog fine, heavy fog c ,o o CD c § o ce ^3 c CD oj-3> .N Cg LU - e8 Flow Rate ( l/min ) = K Vbar increasing pressure 66 Standard Materials: 303 and 316 Stainless Steel, Polypropylene filter (Viton O-ring seal supplied for 3/8"-24 UNF connection) Spray angle performance varies with pressure. Contact BETE for specific data on critical applications. www.BETE.com
