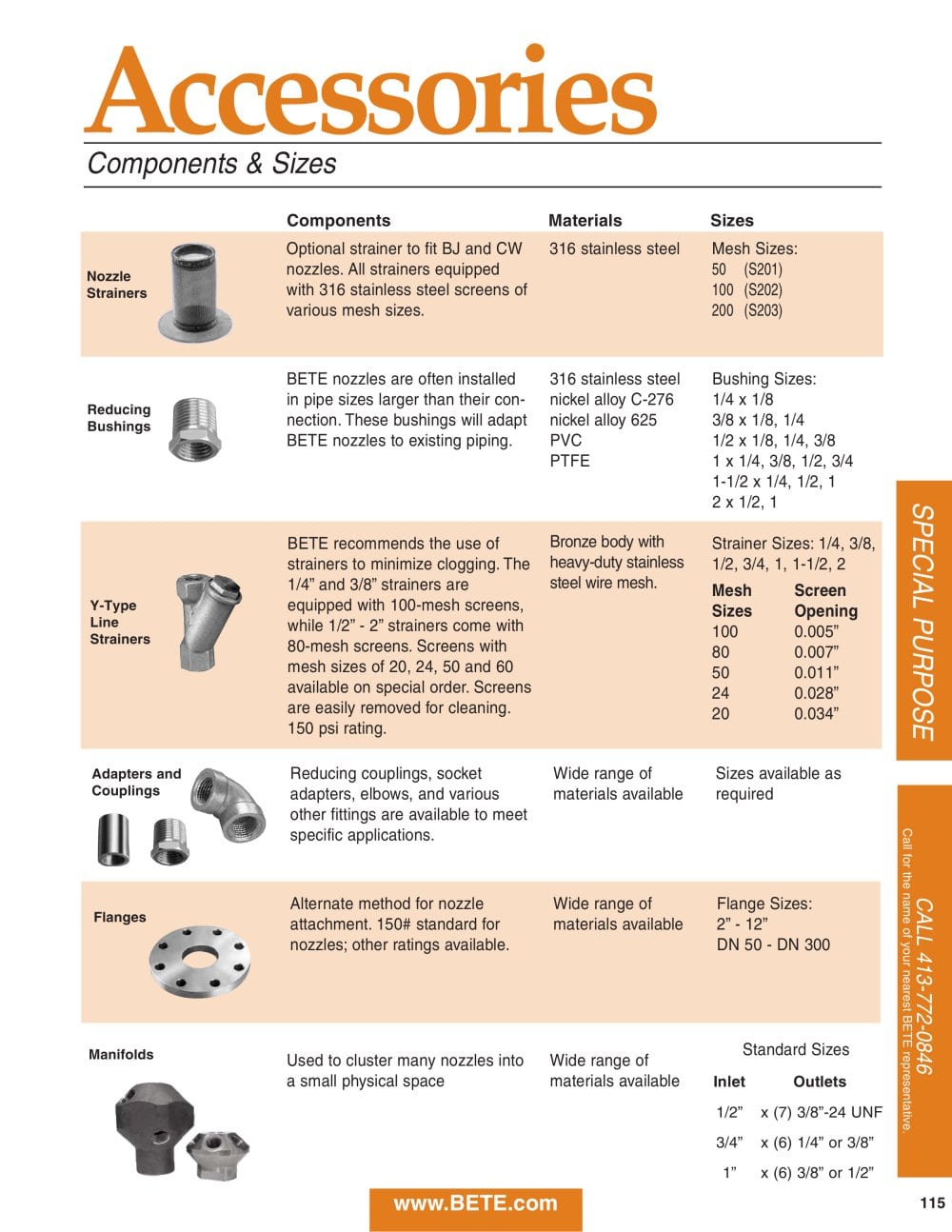

Accessories


Components é	< S/zes
	Components	Materials	Sizes
*Nozzle* Strainers 1	Optional strainer to fit BJ and CW nozzles. All strainers equipped with 316 stainless steel screens of various mesh sizes.	316 stainless steel	Mesh Sizes: 50 (S201) 100 (S202) 200 [S203J
Reducing £ :	BETE nozzles are often installed in pipe sizes larger than their connection.These bushings will adapt BETE nozzles to existing piping.	316 stainless steel nickel alloy C-276 nickel alloy 625 PVC PTFE	Bushing Sizes: 1/4 x 1/8 3/8 x 1/8, 1/4 1/2x1/8,1/4,3/8 1 x 1/4, 3/8, 1/2, 3/4 1-1/2x1/4,1/2, 1 2 x 1/2, 1
V-Type WW Line Strainers 1	BETE recommends the use of strainers to minimize clogging. The 1/4" and 3/8" strainers are equipped with 100-mesh screens, while 1/2" - 2" strainers come with 80-mesh screens. Screens with mesh sizes of 20, 24, 50 and 60 available on special order. Screens are easily removed for cleaning. 150 psi rating.	Bronze body with heavy-duty stainless steel wire mesh.	Strainer Sizes: 1/4, 3/8, 1/2,3/4,1,1-1/2,2 Mesh Screen Sizes Opening 100 0.005" 80 0.007" 50 0.011" 24 0.028" 20 0.034"




	o
	CL


	CL
	Wl
	o
	Ul
	CL

Sizes available a; required

Reducing couplings, socket adapters, elbows, and various other fittings are available to meet specific applications.

Flange Sizes:

2"-12"

DN 50 - DN 300

Used to attach nozzles too large to 316 stainless steel be threaded. 150# rating, ANSI nickel alloy C-276 standard; 300# and specific ratings nickel alloy 625 also available. PVC

PTFE

FRP

Port Sizes:

Inlet Outlet # of outlets 2" 1-1/4" 4 3" 1-1/2" 4 4" 2" 4 6" 2-1/2" 4

Used to facilitate the assembly of spray clusters typically used in spray ponds.

316 stainless s¹

BETE

118
