Bentley Sanitary and Combined Sewer Systems Modeling Solutions (Haestad) - 8 Pages

  1. P. 1

  2. P. 2

  3. P. 3

  4. P. 4

  5. P. 5

  6. P. 6

  7. P. 7

  8. P. 8

Catalogue excerpts

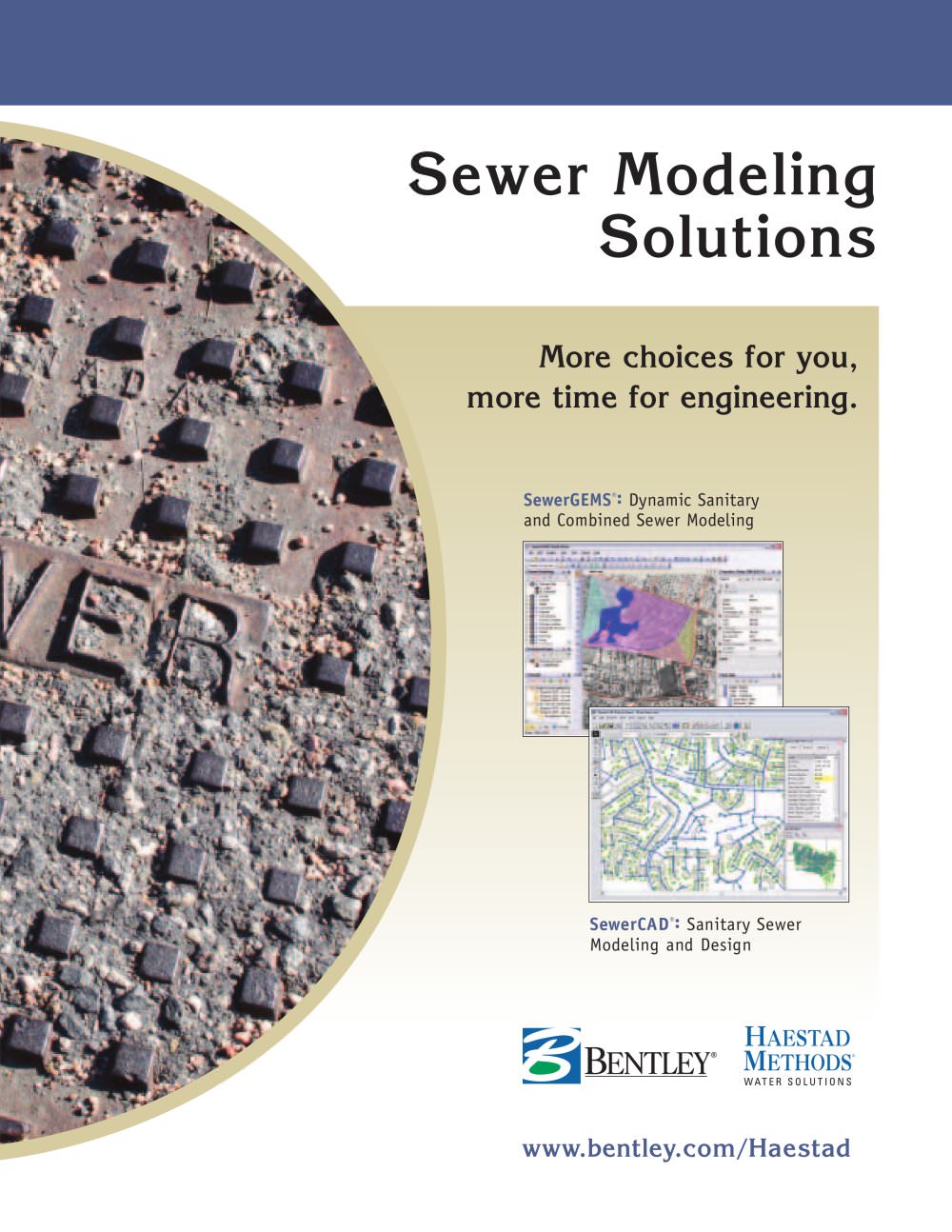

SewerGEMS > : Dynamic Sanitaryand Combined Sewer Modeling SewerCAD > ή : Sanitary SewerModeling and Design >

 Open the catalogue to page 1

or more than two decades, Bentleys HaestadMethods sewer modeling solutions have providedutilities and wastewater professionals with advanced engineering tools to plan, design, maintain, and operate sanitary and combined sewer infrastructure. > F or full inter oper ability : Includes four interchangable applications (stand-alone, ArcGIS, MicroStation > Ү , and AutoCAD). Share yourwork with anyone. F or dynamic modeling : Model looped networks, flow splits, overflows, and stor-age capacity using your choice of EPA's SWMM engine or Bentley's robust and fast implicit dynamic engine. F or sanitary...

 Open the catalogue to page 2

rom urban sewer planning, to overflow remediation analysis, to detailed net-work design, SewerGEMS and SewerCAD are designed to give you more timefor engineering. Unrivaled easy-to-use and time-saving technology, speedyand robust calculation engines, and true interoperability across plat-forms help you generate results faster, so you can make reliableengineering decisions supporting your sewer infrastructure. > Dont re-type. Recycle! Directly use your existing CAD drawings,GIS files, spreadsheets, and legacy models, and create modelsusing the environment you are most comfortable with. > Trust...

 Open the catalogue to page 3

hether you need to start from scratch or havea wealth of digital data on hand, SewerGEMSand SewerCAD give you the tools to build a sewer model in no time. With the choice of four environments, laying out a new system is as easy as you need it to be. System review tools escort you through the process so hydraulic connectivity is never an issue. And if you already have CAD drawings or GIS datafor your sewer system, you may be only a few clicks away from creating your sewer model topology. > Leverage shapefiles, geodatabases, coverages, and SDE datasets. Create models easilyusing your choice of the...

 Open the catalogue to page 4

ata input and editing are typically the biggest time commitments for engineers working onsewer models.From the convenience of Scenario Management, to the power of the new Dynamic Queries, to the simplicity of FlexUnits C > ASE S > TUDY :A > NNE A > RUNDEL C > OUNTY , MD, USA > , SewerGEMS and SewerCADusers save precious time with every data manage- ment task, so they can concentrate on analyzing results and making informed decisions. The Public Works Department of AnneArundel County has developed an extended period simulation (EPS) model in SewerCAD for all 38,000 pipes of their wastewater collec-...

 Open the catalogue to page 5

alculate your model using robust, accurate, sta-ble, and incredibly fast hydraulic and hydrologicengines designed for any sewer modeling application. Leverage SewerCADs steady-state analysis todesign pipes and structures under peak flow condi- tions, or perform capacity and overflow analysis of your existing system with SewerGEMSҒ fully dynamic engine. Model relief sewers, overflow diversions, inverted siphons, and looped networks with SewerGEMS fully dynamic engine.Minimize capital investment withSewerCADҒs constraint-based design. Just enter your design restrictions and run the optimization...

 Open the catalogue to page 6

entleys sewer modeling solutions aredesigned so you can spend more time engi-neering. Start making cost-effective and reliabledecisionsfor your sewer infrastructure today. > Out of the box, SewerGEMS is theonly sewer model on the market that not only gives the users four interface options, but also two different types of dynamic engines to choose from.An engine that solves the complete Saint Venantdynamic flow routing equations is essential for overflow, system capacity, flow control and deten- tion modeling work, but there are different approaches to solving these equations based on finite difference...

 Open the catalogue to page 7
