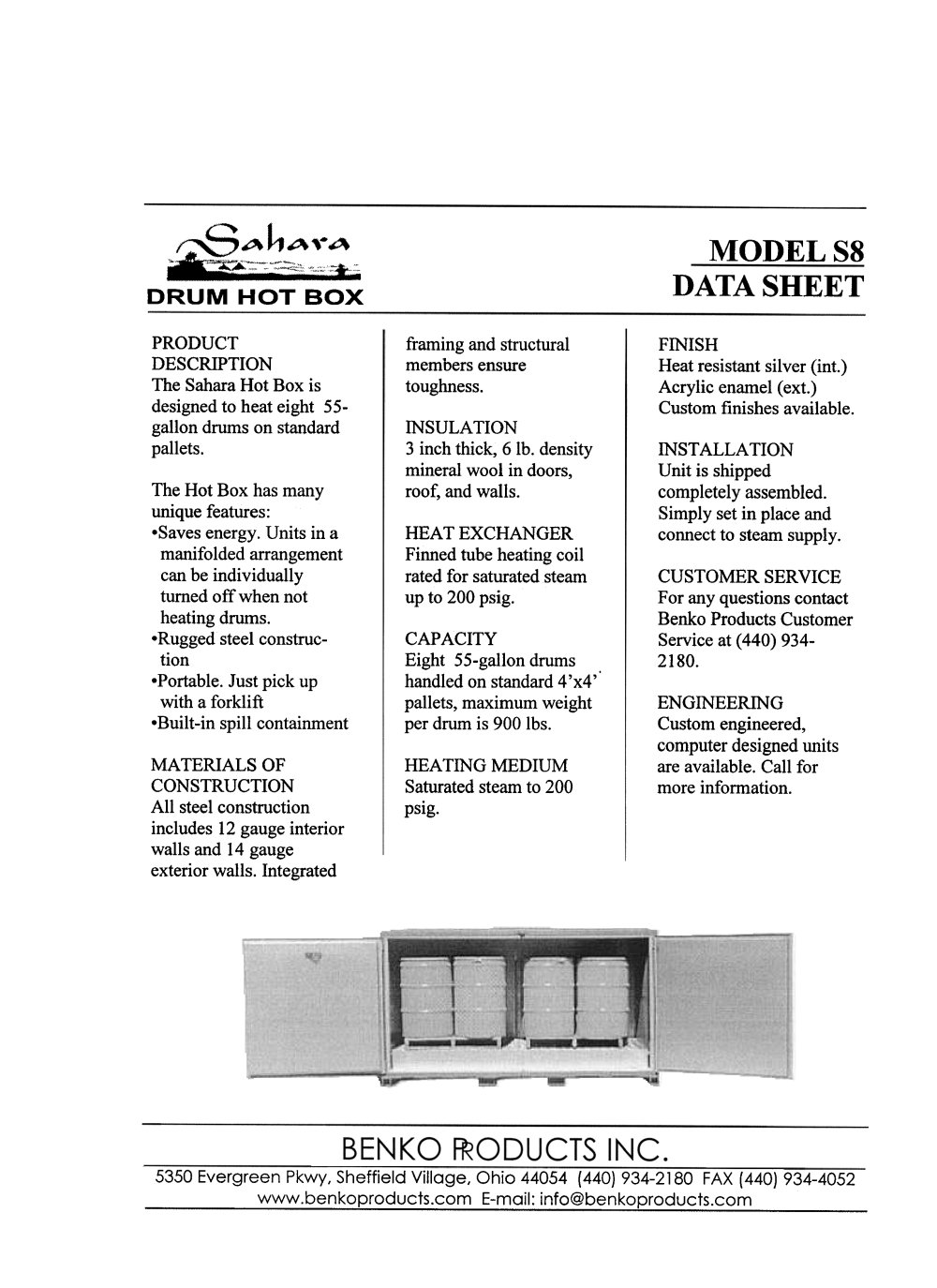

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Arial", sans-serif; } .font1 { font:18.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Times New Roman", serif; } .font3 { font:14.00pt "Times New Roman", serif; } .font4 { font:19.00pt "Times New Roman", serif; } DRUM HOT BOX MODEL S8 DATA SHEET PRODUCT DESCRIPTION The Sahara Hot Box is designed to heat eight 55- gallon drums on standard pallets. The Hot Box has many unique features: •Saves energy. Units in a manifolded arrangement can be individually turned off when not heating drums. •Rugged steel construc­tion •Portable. Just pick up with a forklift •Built-in spill containment MATERIALS OF CONSTRUCTION Ail steel construction includes 12 gauge interior walls and 14 gauge exterior walls. Integrated framing and structural members ensure toughness. INSULATION 3 inch thick, 6 lb. density minerai wool in doors, roof, and walls. HEAT EXCHANGER Finned tube heating coil rated for saturated steam up to 200 psig. CAPACITY Eight 5 5-gallon drums handled on standard 4'x4' pallets, maximum weight per drum is 900 lbs. HEATING MEDIUM Saturated steam to 200 psig. FINISH Heat résistant silver (int.) Acrylic enamel (ext.) Custom finishes available. INSTALLATION Unit is shipped completely assembled. Simply set in place and connect to steam supply. CUSTOMER SERVICE For any questions contact Benko Products Customer Service at (440) 934­2180. ENGINEERING Custom engineered, computer designed units are available. Call for more information. BENKO FfcODUCTS INC. 5350 Evergreen Pkwy, Sheffield Village, Ohio 44054 (440) 934-2180 FAX (440) 934-4052 _www.benkoproducts.com E-mail: info@benkoproducts.com_
