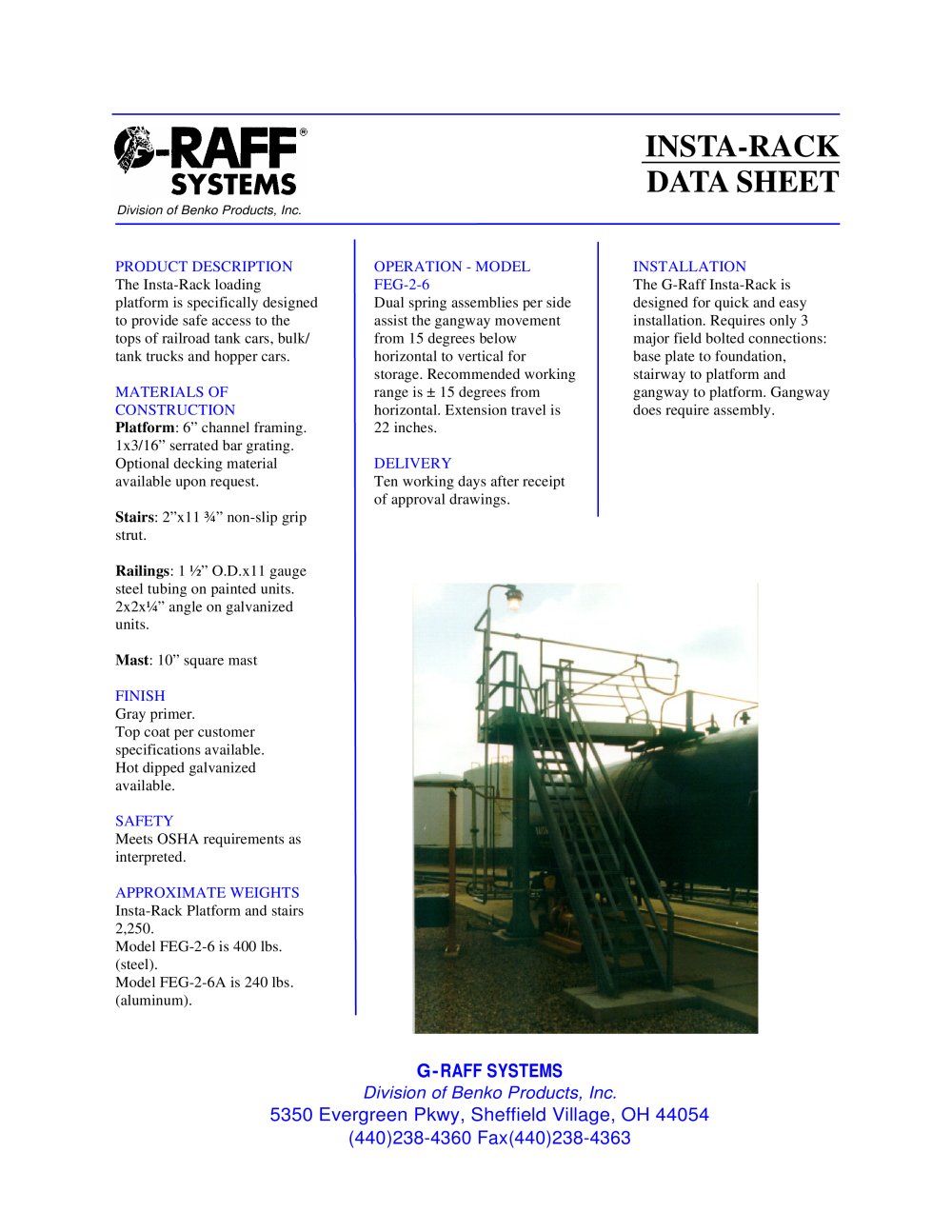

INSTA-RACKDATASHEET

Division of Benko Products, Inc. PRODUCT DESCRIPTION OPERATION - MODEL INSTALLATION The Insta - Rack loading FEG -2-6 The G - Raff Insta - Rack is platform is specifically designed Dual spring assemblies per side designed for quick and easy installation. Requires only 3 to provide safe access to the assist the gangway movement tops of railroad tank cars, bulk/ from 15 degrees below major field bolted connections: tank trucks and hopper cars. horizontal to vertical for base plate to foundation, storage. Recommended working stairway to platform and MATERIALS OF range is ± 15 degrees from gangway to platform. Gangway CONSTRUCTION horizontal. Extension travel is does require assembly. Platform : 6” channel framing. 22 inches.DELIVERY 1 x3/16” serrated bar grating. Optional decking material available upon request. Ten working days after receipt of approval drawings. Stairs : 2” x11 ¾” non - slip grip strut. Railings : 1 ½” O.D.x11 gauge steel tubing on painted units. 2 x2x¼” angle on galvanized units. Mast : 10” square mast FINISH Gray primer. Top coat per customer specifications available. Hot dipped galvanized available. SAFETY Meets OSHA requirements as interpreted. APPROXIMATE WEIGHTS Insta - Rack Platform and stairs 2,250. Model FEG -2- 6 is 400 lbs. (steel). Model FEG -2- 6A is 240 lbs. (aluminum).
