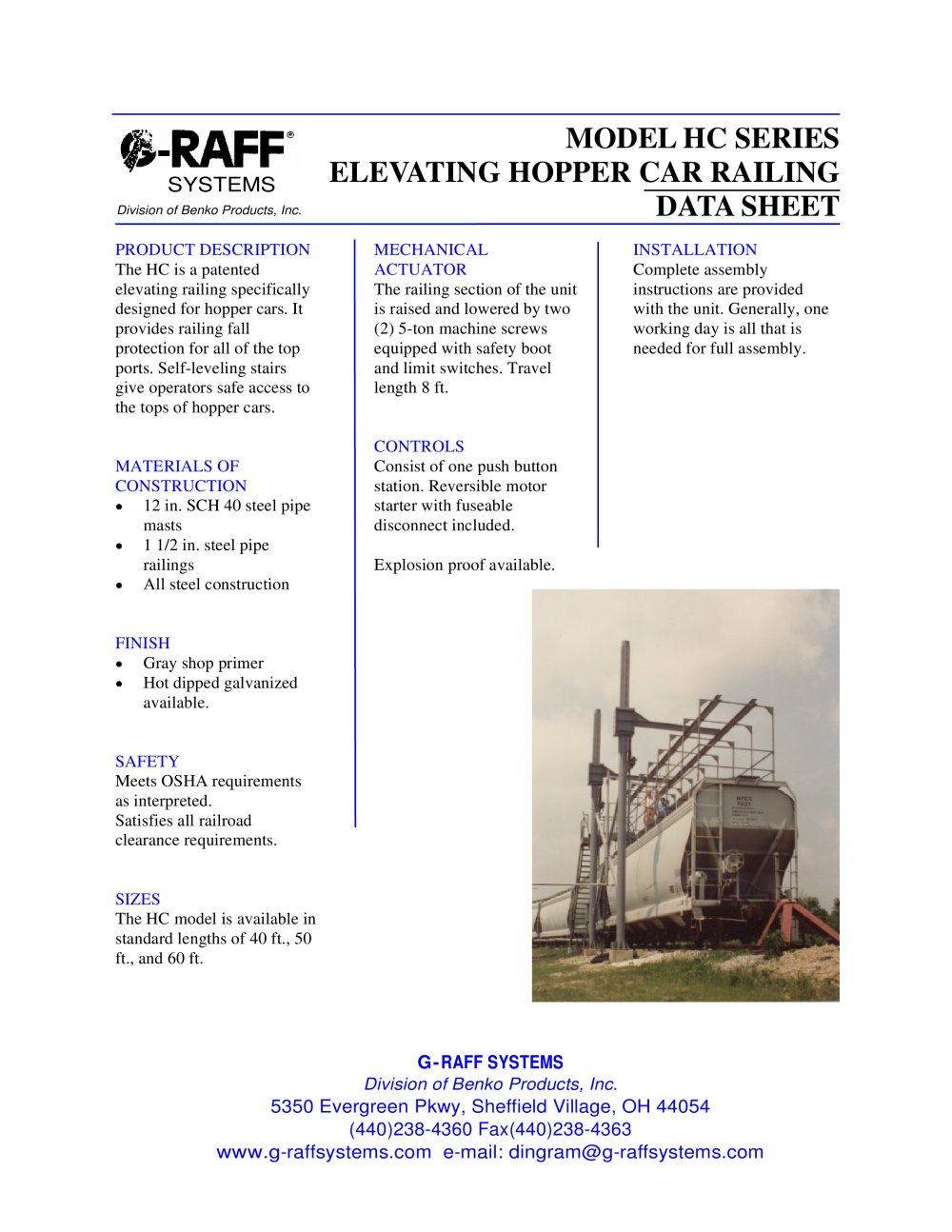

| #-RAFF SYSTEMS Division of Benko Products, inc. | MODEL HC SERIES ELEVATING HOPPER CAR RAILING DATA SHEET | |||
| | ||||
| PRODUCT DESCRIPTION The HC is a patented elevating railing specifically designed for hopper cars. It provides railing fall protection for all of the top ports. Self-leveling stairs give operators safe access to the tops of hopper cars. | MECHANICAL ACTUATOR The railing section of the unit is raised and lowered by two (2) 5-ton machine screws equipped with safety boot and limit switches. Travel length 8 ft. | INSTALLATION Complete assembly instructions are provided with the unit. Generally, one working day is all that is needed for full assembly. | ||
| | ||||
| MATERIALS OF CONSTRUCTION • 12 in. SCH 40 steel pipe masts • 1 1/2 in. steel pipe railings • All steel construction | CONTROLS Consist of one push button station. Reversible motor starter with fuseable disconnect included. Explosion proof available. | |||
 | ||||
| FINISH • Gray shop primer • Hot dipped galvanized available. | ||||
| SAFETY Meets OSHA requirements as interpreted. Satisfies all railroad clearance requirements. | ||||
| SIZES The HC model is available in standard lengths of 40 ft., 50 ft., and 60 ft. | ||||
| | ||||
| G-RAFF SYSTEMS Division of Benko Products, inc. 5350 Evergreen Pkwy, Sheffield Village, OH 44054 (440)238-4360 Fax(440)238-4363 www.g-raffsystems.com e-mail: dingram@g-raffsystems.com | ||||
| | ||||
