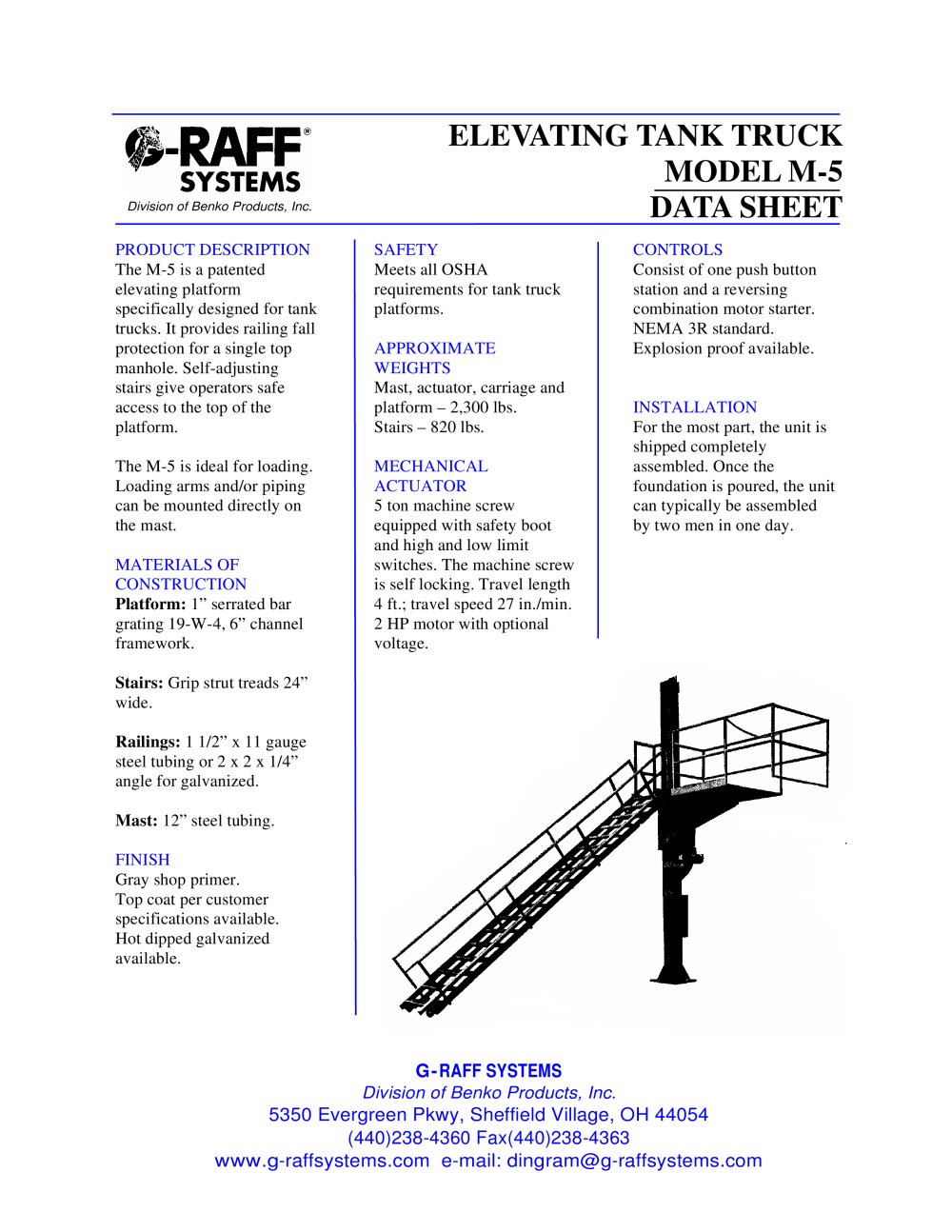

| RAFF | ELEVATING TANK TRUCK MODEL M-5 DATA SHEET | |||
| Division of Benko Products, inc. PRODUCT DESCRIPTION The M-5 is a patented elevating platform specifically designed for tank trucks. It provides railing fall protection for a single top manhole. Self-adjusting stairs give operators safe access to the top of the platform. The M-5 is ideal for loading. Loading arms and/or piping can be mounted directly on the mast. MATERIALS OF CONSTRUCTION Platform: 1" serrated bar grating 19-W-4, 6" channel framework. Stairs: Grip strut treads 24" wide. Railings: 1 1/2" x 11 gauge steel tubing or 2 x 2 x 1/4" angle for galvanized. Mast: 12" steel tubing. FINISH Gray shop primer. Top coat per customer specifications available. Hot dipped galvanized available. | ||||
| SAFETY Meets all OSHA requirements for tank truck platforms. APPROXIMATE WEIGHTS Mast, actuator, carriage and platform - 2,300 lbs. Stairs - 820 lbs. MECHANICAL ACTUATOR 5 ton machine screw equipped with safety boot and high and low limit switches. The machine screw is self locking. Travel length 4 ft.; travel speed 27 in./min. 2 HP motor with optional voltage. | CONTROLS Consist of one push button station and a reversing combination motor starter. NEMA 3R standard. Explosion proof available. | |||
| INSTALLATION For the most part, the unit is shipped completely assembled. Once the foundation is poured, the unit can typically be assembled by two men in one day. | ||||
 | ||||
| | ||||
| G-RAFF SYSTEMS Division of Benko Products, inc. 5350 Evergreen Pkwy, Sheffield Village, OH 44054 (440)238-4360 Fax(440)238-4363 www.g-raffsystems.com e-mail: dingram@g-raffsystems.com | ||||
| | ||||
