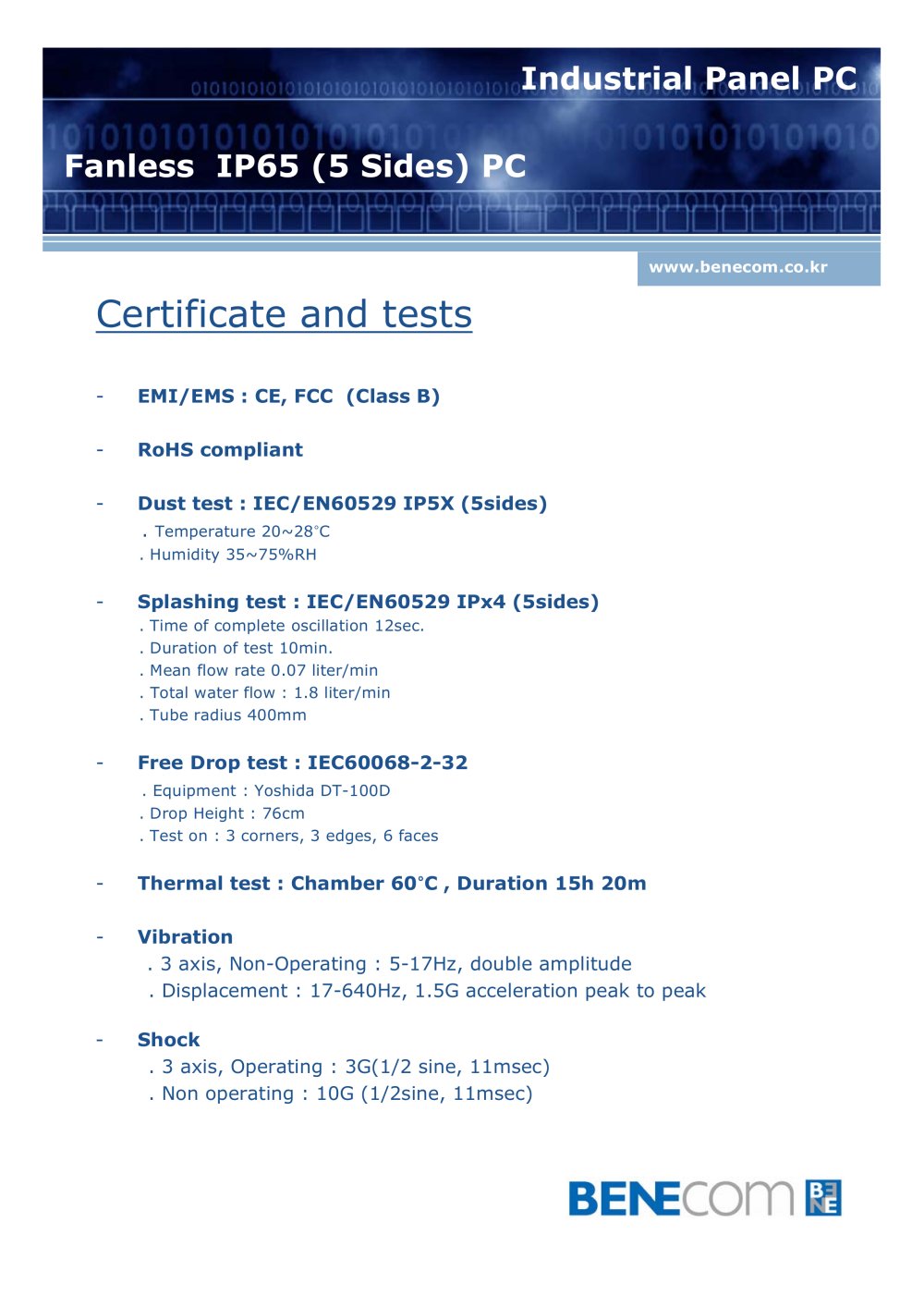

Fanless IP65 (5 Sides) PC Industrial Panel PC www.benecom.co.kr Certificate and tests - EMI/EMS : CE, FCC (Class B) - RoHS compliant - Dust test : IEC/EN60529 IP5X (5sides) . Temperature 20~28°C . Humidity 35~75%RH - Splashing test : IEC/EN60529 IPx4 (5sides) . Time of complete oscillation 12sec. . Duration of test 10min. . Mean flow rate 0.07 liter/min . Total water flow : 1.8 liter/min . Tube radius 400mm - Free Drop test : IEC60068-2-32 . Equipment : Yoshida DT-100D . Drop Height : 76cm . Test on : 3 corners, 3 edges, 6 faces - Thermal test : Chamber 60°C , Duration 15h 20m - Vibration . 3 axis, Non-Operating : 5-17Hz, double amplitude . Displacement : 17-640Hz, 1.5G acceleration peak to peak - Shock . 3 axis, Operating : 3G(1/2 sine, 11msec) . Non operating : 10G (1/2sine, 11msec)
