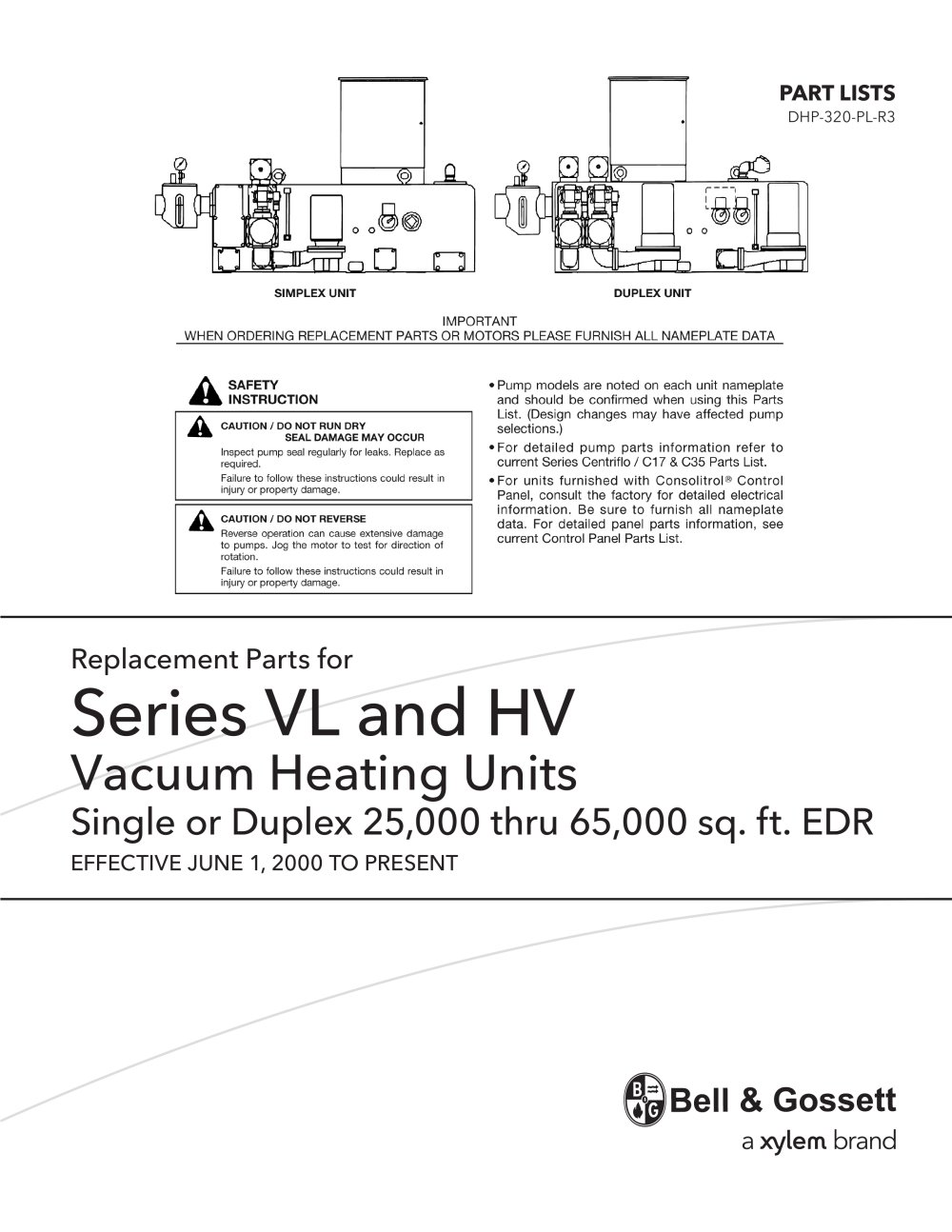

DOMESTIC/HOFFMANPUMP

PARTS LIST DHP-320-PL

(REVISION3)

SIMPLEXUNITDUPLEXUNIT

Replacement Parts for Series VL and HV Vacuum Heating UnitsSingle or Duplex 25,000 thru 65,000 sq. ft. EDR effective June 1, 2000 to present

IMPORTANT WHENORDERINGREPLACEMENTPARTS ORMOTORSPLEASEFURNISH ALL NAMEPLATE DATA SAFETYINSTRUCTION •Pump models are noted on each unit nameplateand should be confirmed when using this Parts List. (Design changes may have affected pump selections.)•For detailed pump parts information refer to current Series Centriflo / C17 & C35 Parts List.•For units furnished with Consolitrol

CAUTION/ DO NOTRUNDRYSEALDAMAGEMAYOCCUR Inspect pump seal regularly for leaks. Replace asrequired.Failure to follow these instructions could result in injury or property damage.
®

ControlPanel, consult the factory for detailed electrical information. Be sure to furnish all nameplate data. For detailed panel parts information, see current Control Panel Parts List.

CAUTION/ DO NOTREVERSE Reverse operation can cause extensive damageto pumps. Jog the motor to test for direction ofrotation.Failure to follow these instructions could result in injury or property damage.

Domestic Pump

SERIES VL AND HV
