Series 1510 Stuffing Box Pumps - 56 Pages

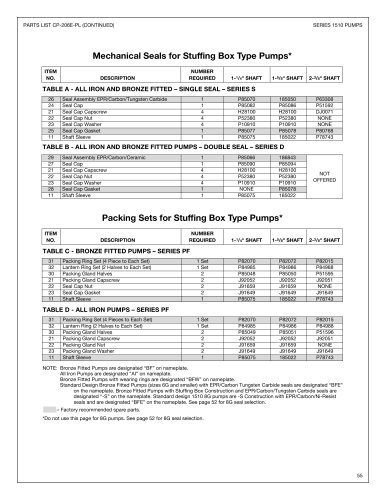

PARTS LIST CP-206E-PL (CONTINUED) SERIES 1510 PUMPS >

Mechanical Seals for Stuffing Box Type Pumps*

ITEMNUMBERNO.DESCRIPTIONREQUIRED1- >
1 / >
4 " SHAFT1- >
5 / >
8 " SHAFT2- >
3 / >
8 " SHAFT >

TABLE A - ALL IRON AND BRONZE FITTED SINGLE SEAL ֖ SERIES S

26Seal Assembly EPR/Carbon/Tungsten Carbide1P85070185050P63308 24Seal Cap1P85082P85086P51592 21Seal Cap Capscrew4H28100H28100DJ0071 22Seal Cap Nut4P52380P52380NONE 23Seal Cap Washer4P10910P10910NONE 25Seal Cap Gasket1P85077P85078P8076811Shaft Sleeve1P85075185022P78743 >

TABLE B - ALL IRON AND BRONZE FITTED PUMPS DOUBLE SEAL ֖ SERIES D

29Seal Assembly EPR/Carbon/Ceramic1P85066186843 27Seal Cap1P85090P85094 21Seal Cap Capscrew4H28100H28100 22Seal Cap Nut4P52380P52380 NOTOFFERED 23Seal Cap Washer4P10910P10910 28Seal Cap Gasket1NONEP8507811Shaft Sleeve1P85075185022 >

Packing Sets for Stuffing Box Type Pumps*

ITEMNUMBERNO.DESCRIPTIONREQUIRED1- >
1 / >
4 " SHAFT1- >
5 / >
8 " SHAFT2- >
3 / >
8 " SHAFT >

TABLE C - BRONZE FITTED PUMPS SERIES PF

31Packing Ring Set (4 Piece to Each Set)1 SetP82070P82072P82015 32Lantern Ring Set (2 Halves to Each Set)1 SetP84985P84986P84988 30Packing Gland Halves2P85048P85050P51595 21Packing Gland Capscrew2J92052J92052J92051 22Seal Cap Nut2J91659J91659NONE 23Seal Cap Gasket2J91649J91649J9164911Shaft Sleeve1P85075185022P78743 >

TABLE D - ALL IRON PUMPS ֖ SERIES PF

31Packing Ring Set (4 Pieces to Each Set) 1 SetP82070P82072P82015 32Lantern Ring (2 Halves to Each Set)1 SetP84985P84986P84988 30Packing Gland Halves2P85049P85051P51596 21Packing Gland Capscrew2J92052J92052J92051 22Packing Gland Nut2J91659J91659NONE 23Packing Gland Washer2J91649J91649J9164911Shaft Sleeve1P85075185022P78743 NOTE: Bronze Fitted Pumps are designated BFӔ on nameplate.All Iron Pumps are designated AIӔ on nameplate.Bronze Fitted Pumps with wearing rings are designated BFWӔ on nameplate.
Standard Design Bronze Fitted Pumps (sizes 6G and smaller) with EPR/Carbon Tungsten Carbide seals are designated BFEӔon the nameplate. Bronze Fitted Pumps with Stuffing Box Construction and EPR/Carbon/Tungsten Carbide seals are designated -SӔ on the nameplate. Standard design 1510 8G pumps are -S Construction with EPR/Carbon/Ni-Resist seals and are designated BFEӔ on the nameplate. See page 52 for 8G seal selection. Factory recommended spare parts.*Do not use this page for 8G pumps. See page 52 for 8G seal selection. 55 >
