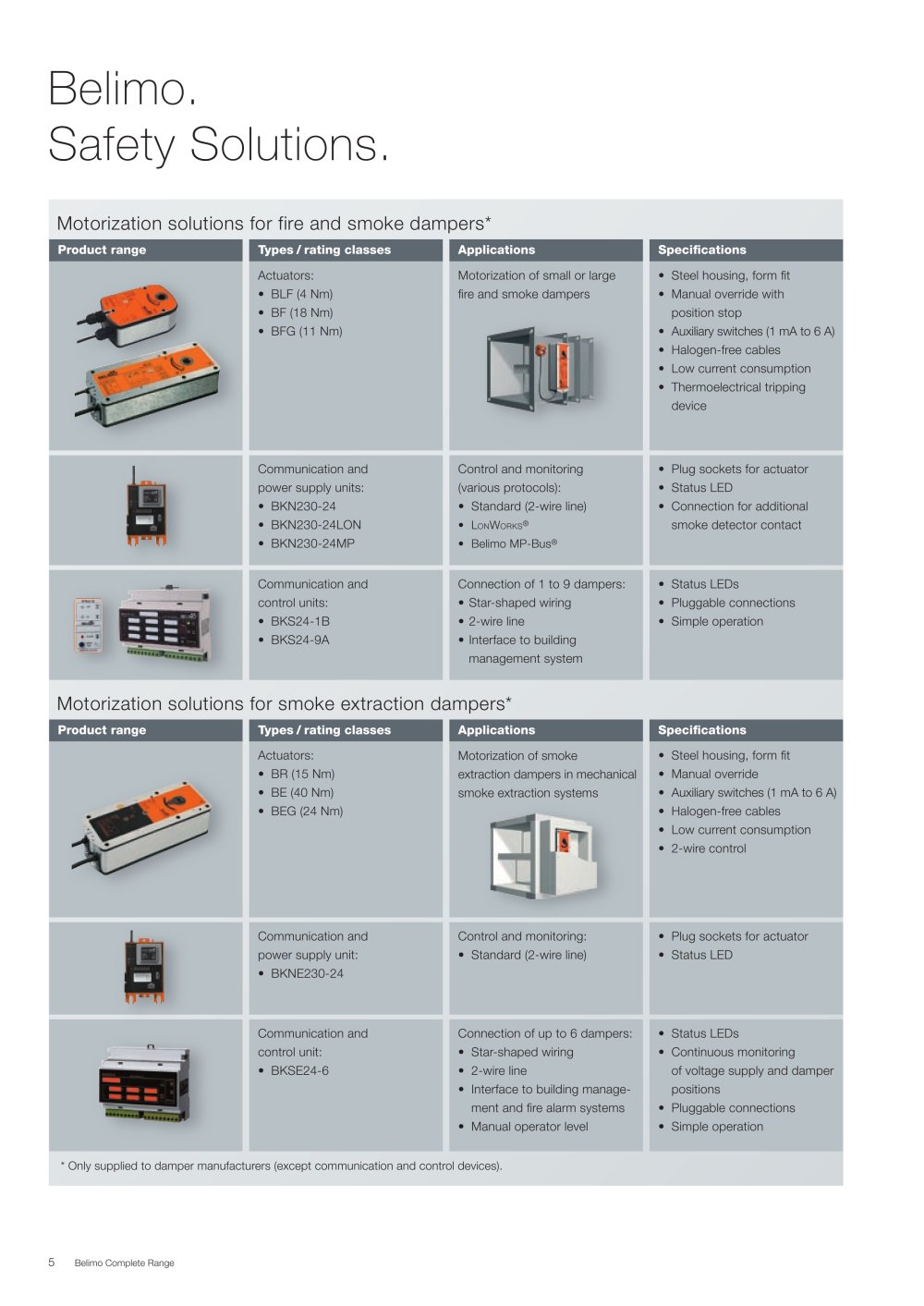

| | | Belimo. Safety Solutions. | | |
| | | |
| | | | | |
| | | |
| | | Product range | | Types / rating classes | | Applications | | Specifications | | |
| | | |
| | | Actuators: BLF (4 Nm) BF(18 Nm) BFG (11 Nm) | | Steel housing, form fit Manual override with position stop Auxiliary switches (1 mA to 6 A) Halogen-free cables Low current consumption Thermoelectrlcal tripping device | | |
| | | Motorization of small or large fire and smoke dampers | | |
| | | • | | |
| | | |
| | | • | | |
| | | |
| | | |
| | | • | | |
| | | |
| | | |
| | | • | | |
| | | |
| | | • | | |
| | | |
| | | • | | |
| | | |
| | | |
| | | Communication and control units: BKS24-1B BKS24-9A | | Control and monitoring (various protocols): • Standard (2-wlre line) • LonWorks® • Bellmo MP-Bus® Connection of1to9 dampers: • Star-shaped wiring • 2-wlre line • Interface to building management system | | • Plug sockets for actuator • Status LED • Connection for additional smoke detector contact | | |
| | | |
| | | • Status LEDs • Pluggableconnectlons • Slmpleoperatlon | | |
| | | |
| | | |
| | | |
| | | Motorization solutions for smoke extraction dampers* | | |
| | | |
| | | Product range | | Types / rating classes | | Applications | | Specifications | | |
| | | |
| | | • Steel housing, form fit • Manualoverrlde • Auxiliary switches (1 mA to 6 A) • Halogen-freecables • Low current consumption • 2-wlrecontrol | | |
| | | Motorization of smoke extraction dampers In mechanical smoke extraction systems | | |
| | | |
| | | |
| | | Communication and power supply unit: • BKNE230-24 | | Control and monitoring: • Standard (2-wlre line) | | • Plug sockets for actuator • Status LED | | |
| | | |
| | | |
| | | |
| | | Communication and control unit: | | Connection of up to 6 dampers: • Star-shapedwirlng • 2-wlrellne • Interface to building management and fire alarm systems • Manual operator level | | Status LEDs Continuous monitoring of voltage supply and damper positions Pluggable connections Simple operation | | |
| | | • | | |
| | | |
| | | • | | |
| | | |
| | | |
| | | • BKSE24-6 | | |
| | | |
| | | • | | |
| | | |
| | | • | | |
| | | |
| | | |
| | | | | |
| | | |
| | | 5 Belimo Complete Range | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
