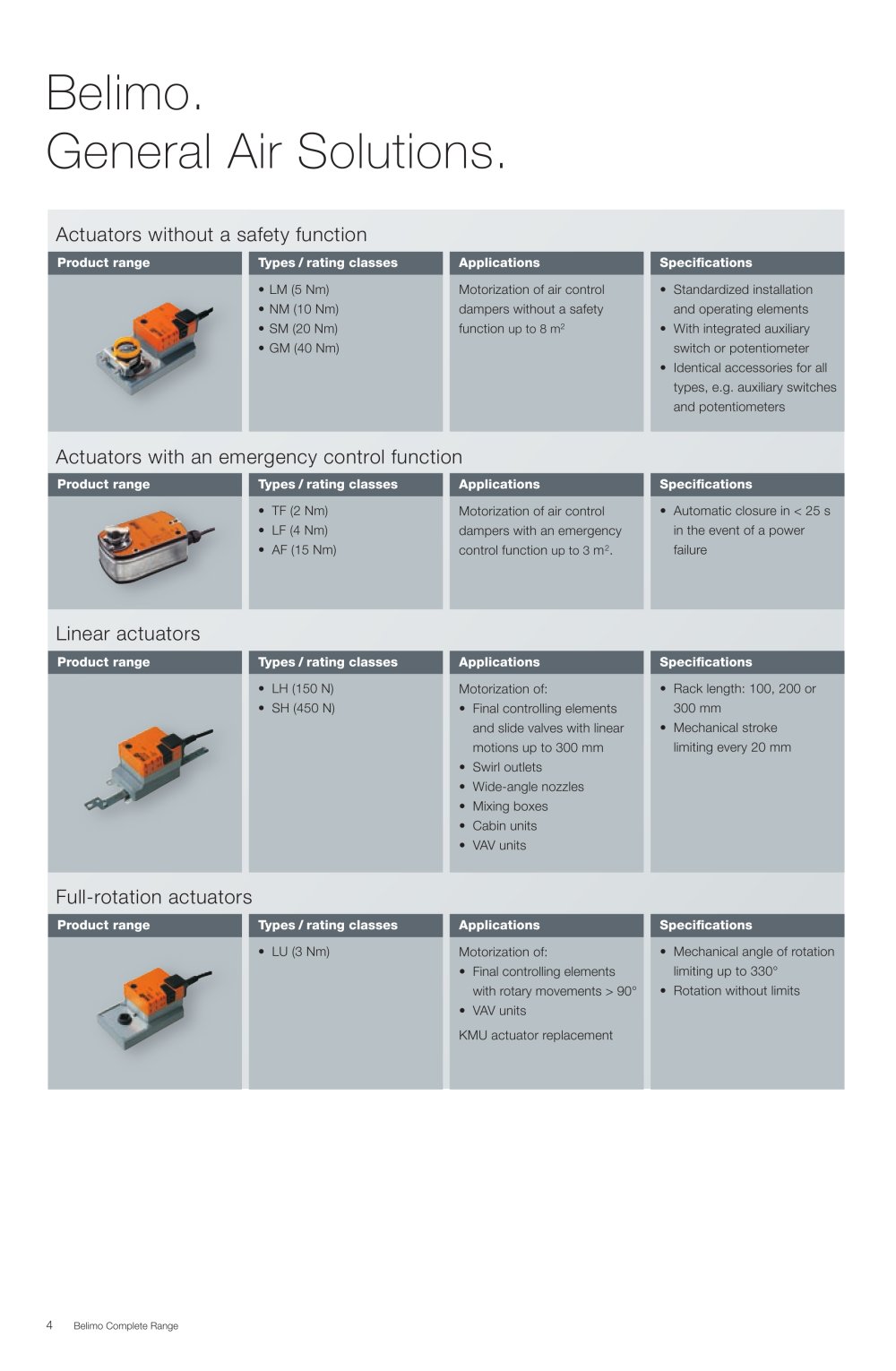

Belimo.

General Air Solutions.

Actuators without a safety function

• LM (5 Nm)

• NM(10 Nm)

• SM (20 Nm)

• GM (40 Nm)

Motorization of air control dampers without a safety function up to 8 m²

Standardized installation and operating elements With Integrated auxiliary switch or potentiometer Identical accessories for all types, e.g. auxiliary switches and potentiometers

•

•

•

Actuators with an emergency control function

• TF (2 Nm)

• LF (4 Nm)

• AF(15 Nm)

Automatic closure ln<25s in the event of a power failure

Motorization of air control dampers with an emergency control function upto3m².

•

Linear actuators

Motorization of:

Final controlling elements and slide valves with linear motions up to 300 mm Swirl outlets Wide-angle nozzles Mixing boxes Cabin units VAV units

Rack length: 100,200 or 300 mm

Mechanical stroke limiting every 20 mm

Full-rotation actuators

LU (3 Nm)

Mechanical angle of rotation limiting upto 330° Rotation without limits

Motorization of: Final controlling elements with rotary movements > 90° VAV units

•

•

KMU actuator replacement

4 Belimo Complete Range
