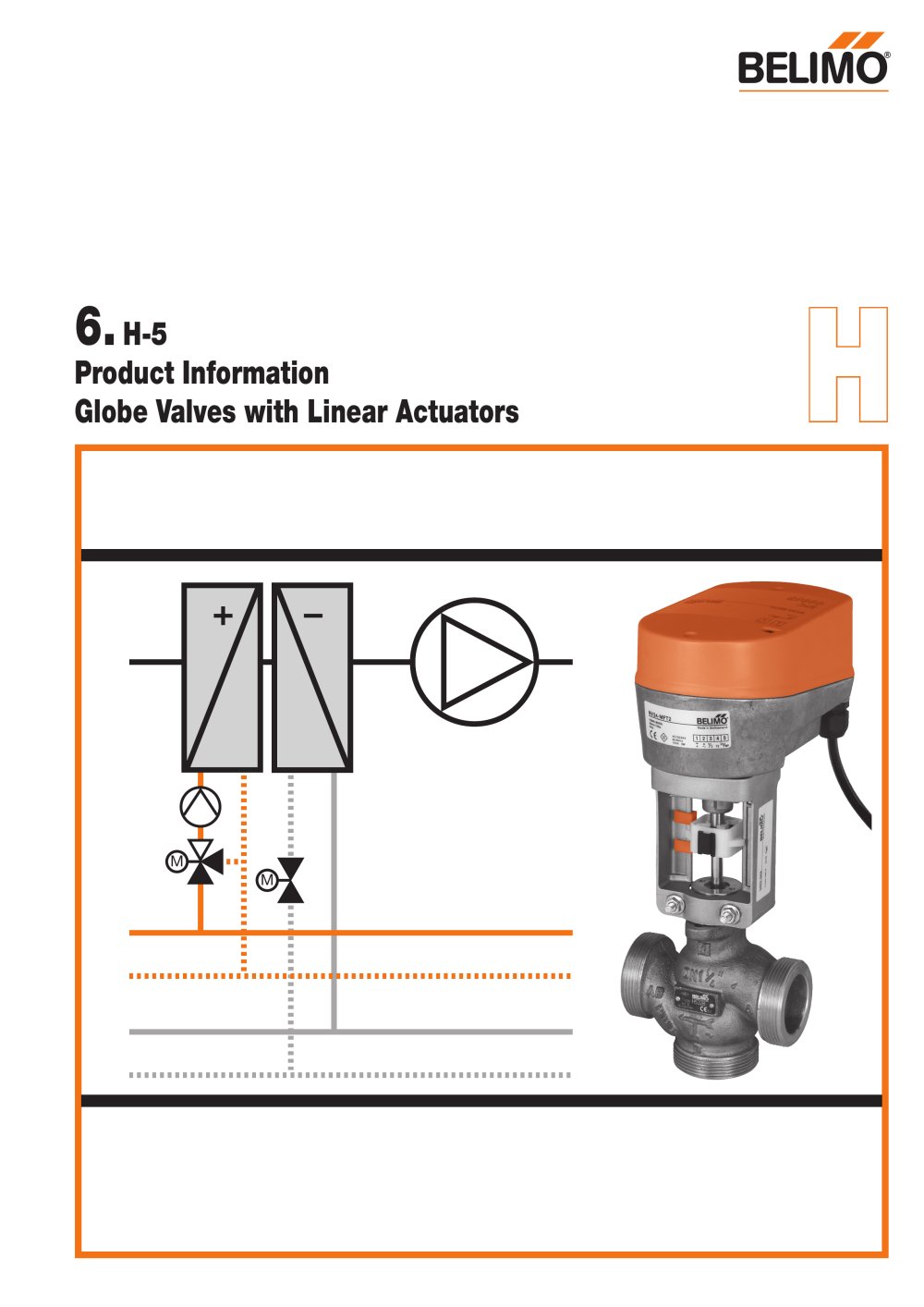

BC 6. H-5 Product Information Globe Valves with Linear Actuators H M M

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 2 Control valves for every application Important Using Belimo control devices The control devices described in this publication are intended for use in the closed water circuits of heating, ventilating and air-conditioning systems. Please ask for more information about using the control devices in conjunction with other liquid or gaseous fluids. Characterized control valve with rotary actuator 2-way valve or mixing valve with either internal thread or flanged ends. Equalpercentage characteristic for...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 3 General information General information - linear actuators 4 General information - globe valves 5 Overviews and selection tables Overview of valves and accessories 6 Overview of linear actuators 7 Valve/actuator combinations 8 Flow diagram - globe valves 9 How to order motorized globe valves 10 Globe valves H4..B globe valves, 2-way, with external thread 12 H5..B globe valves, 3-way, with external thread 13 H6..N globe valves, 2-way, with flanged ends 14 H7..N globe valves, 3-way, with flanged ends...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 4 NV.. actuators for valve nominal widths DN 15 - DN 80 Cost-effective turnkey solution Customers who choose Belimo motorized valves will be able to enjoy products that offer the same technically advanced standard and are as easy to use as the actuators for air control dampers for which the company has been famous for many years. AV.. actuators for valve nominal widths DN 65 - DN 150 High-performance AV.. linear actuators are available for all nominal widths from DN 65. They can likewise be supplied...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 5 General information - globe valves Component parts of the globe valve: H5..B (top) and H7..N (bottom) Component parts of the globe valve: H6..S Design of Belimo H... globe valves H4..B, H5..B, H6..N and H7..N series The closing point of the globe valves in the Belimo H4..B, H5..B, H6..N and H7..N series is in the UP position. The valve stem is fully extended from the valve fitting. The flow rate through the control path is 0% (bypass path with 3-way valve: 100%). In the schematic diagram, the valve...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 6 Overview of valves and accessories Globe valves External thread Flange PN 16 2-way 3-way 2-way 3-way 2-way H4..B H5..B H6..N H7..N H6..S Only suitable as a mixing valve • • Nominal width [mm] 15...50 15...50 15...100 15...150 15...150 Pipe connection External thread (ISO 228) • • Flange PN 16 (ISO 7005) • • • Flow characteristic A–AB equal-percentage (to VDI / VDE 2173); N(ep) = 3 • • • • • B–AB linear • • Temperature of medium 5…120 °C (-10 °C with stem heating on request) • • • • 5..150 °C • Leakage...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 7 Overview of linear actuators NV / NVF linear actuators 3-point Modulating Modulating emergency control function AC / DC 24 V AC 230 V AC / DC 24 V AC / DC 24 V NV24-3 NV230-3 NV24-MFT NVY24-MFT NVG24-MFT NVF24-MFT NVF24-MFT-E Linear actuator 20 mm Stroke 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm Actuating force 1000 N1) 1000 N1) 1000 N1) 1000 N1) 1600 N 800 N 800 N Fast running function • Actuating time 7.5 s/mm, 3.75 s/mm selectable • • Running time 150 s, (75...300 s) 2) • • • • 35 s, (35...300...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 10 How to order motorized globe valves Valve The product range comprises 2-way and 3-way globe valves with external thread or flanged ends as well as the SuperCompact 2-way control valve PN 6/10/16. Actuator types Three rating classes (NV../NVG../AV..) that are suitable for different power supplies and methods of control for 3-point, multifunctional and communicationcapable actuators, are available for motorizing globe valves and SuperCompact control valves. Running time and emergency control function...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 11

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 12 H4..B globe valves, 2-way, with external thread Applications • Water-side control of air handling units • Water-side control in heating systems Mode of operation The globe valve is operated by a NV series linear actuator. The linear actuators are controlled by a standard modulating or 3-point control system and move the cone of the valve, the throttling device, to the opening position dictated by the control signal. Product features Equal-percentage characteristic Produced by the profiling of the...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 13 H5..B globe valves, 3-way, with external thread Applications • Water-side control of air handling units • Water-side control in heating systems Mode of operation The globe valve is operated by an NV series linear actuator. The linear actuators are controlled by a standard modulating or 3- point control system and move the cone of the valve, the mixing device, to the opening position dictated by the control signal. Product features Equal-percentage characteristic Produced by the profiling of the...

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 14 H6..N globe valves, 2-way, with flanged ends Applications • Water-side control of air handling units • Water-side control in heating systems Mode of operation The globe valve is operated by an NV or AV series linear actuator. The linear actuators are controlled by a standard modulating or 3-point control system and move the cone of the valve, the throttling device, to the opening position dictated by the control signal. Product features Equal-percentage characteristic Produced by the profiling of...
