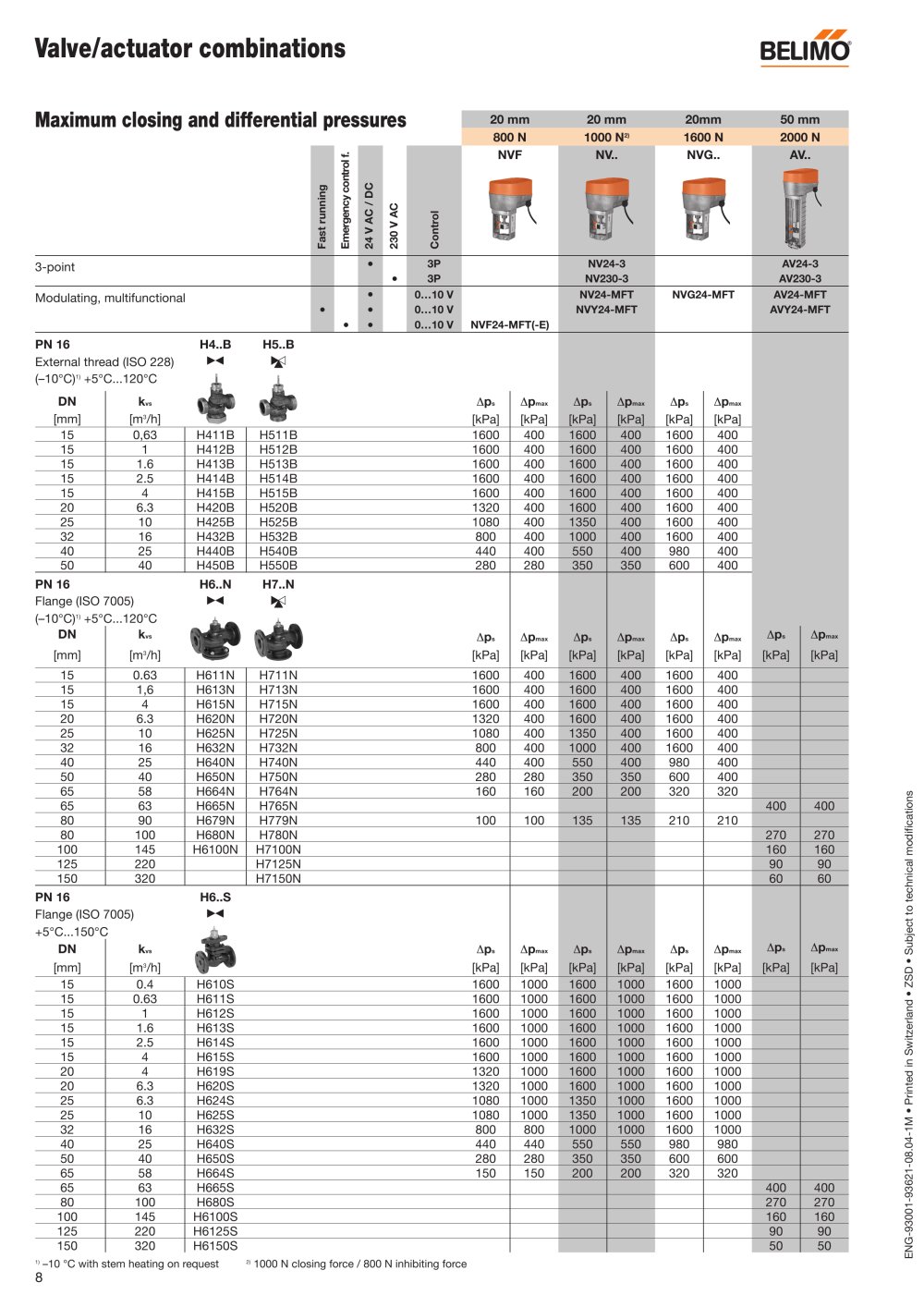

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 8 Valve/actuator combinations Maximum closing and differential pressures 20 mm 20 mm 20mm 50 mm 800 N 1000 N2) 1600 N 2000 N Fast running Emergency control f. 24 V AC / DC 230 V AC Control NVF NV.. NVG.. AV.. 3-point • 3P NV24-3 AV24-3 • 3P NV230-3 AV230-3 Modulating, multifunctional • 0…10 V NV24-MFT NVG24-MFT AV24-MFT • • 0…10 V NVY24-MFT AVY24-MFT • • 0…10 V NVF24-MFT(-E) PN 16 H4..B H5..B External thread (ISO 228) (–10°C)1) +5°C...120°C DN kvs Äps Äpmax Äps Äpmax Äps Äpmax [mm] [m3/h] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] 15 0,63 H411B H511B 1600 400 1600 400 1600 400 15 1 H412B H512B 1600 400 1600 400 1600 400 15 1.6 H413B H513B 1600 400 1600 400 1600 400 15 2.5 H414B H514B 1600 400 1600 400 1600 400 15 4 H415B H515B 1600 400 1600 400 1600 400 20 6.3 H420B H520B 1320 400 1600 400 1600 400 25 10 H425B H525B 1080 400 1350 400 1600 400 32 16 H432B H532B 800 400 1000 400 1600 400 40 25 H440B H540B 440 400 550 400 980 400 50 40 H450B H550B 280 280 350 350 600 400 PN 16 H6..N H7..N Flange (ISO 7005) (–10°C)1) +5°C...120°C DN kvs Äps Äpmax Äps Äpmax Äps Äpmax Äps Äpmax [mm] [m3/h] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] 15 0.63 H611N H711N 1600 400 1600 400 1600 400 15 1,6 H613N H713N 1600 400 1600 400 1600 400 15 4 H615N H715N 1600 400 1600 400 1600 400 20 6.3 H620N H720N 1320 400 1600 400 1600 400 25 10 H625N H725N 1080 400 1350 400 1600 400 32 16 H632N H732N 800 400 1000 400 1600 400 40 25 H640N H740N 440 400 550 400 980 400 50 40 H650N H750N 280 280 350 350 600 400 65 58 H664N H764N 160 160 200 200 320 320 65 63 H665N H765N 400 400 80 90 H679N H779N 100 100 135 135 210 210 80 100 H680N H780N 270 270 100 145 H6100N H7100N 160 160 125 220 H7125N 90 90 150 320 H7150N 60 60 PN 16 H6..S Flange (ISO 7005) +5°C...150°C DN kvs Äps Äpmax Äps Äpmax Äps Äpmax Äps Äpmax [mm] [m3/h] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] [kPa] 15 0.4 H610S 1600 1000 1600 1000 1600 1000 15 0.63 H611S 1600 1000 1600 1000 1600 1000 15 1 H612S 1600 1000 1600 1000 1600 1000 15 1.6 H613S 1600 1000 1600 1000 1600 1000 15 2.5 H614S 1600 1000 1600 1000 1600 1000 15 4 H615S 1600 1000 1600 1000 1600 1000 20 4 H619S 1320 1000 1600 1000 1600 1000 20 6.3 H620S 1320 1000 1600 1000 1600 1000 25 6.3 H624S 1080 1000 1350 1000 1600 1000 25 10 H625S 1080 1000 1350 1000 1600 1000 32 16 H632S 800 800 1000 1000 1600 1000 40 25 H640S 440 440 550 550 980 980 50 40 H650S 280 280 350 350 600 600 65 58 H664S 150 150 200 200 320 320 65 63 H665S 400 400 80 100 H680S 270 270 100 145 H6100S 160 160 125 220 H6125S 90 90 150 320 H6150S 50 50 1) –10 °C with stem heating on request 2) 1000 N closing force / 800 N inhibiting force
