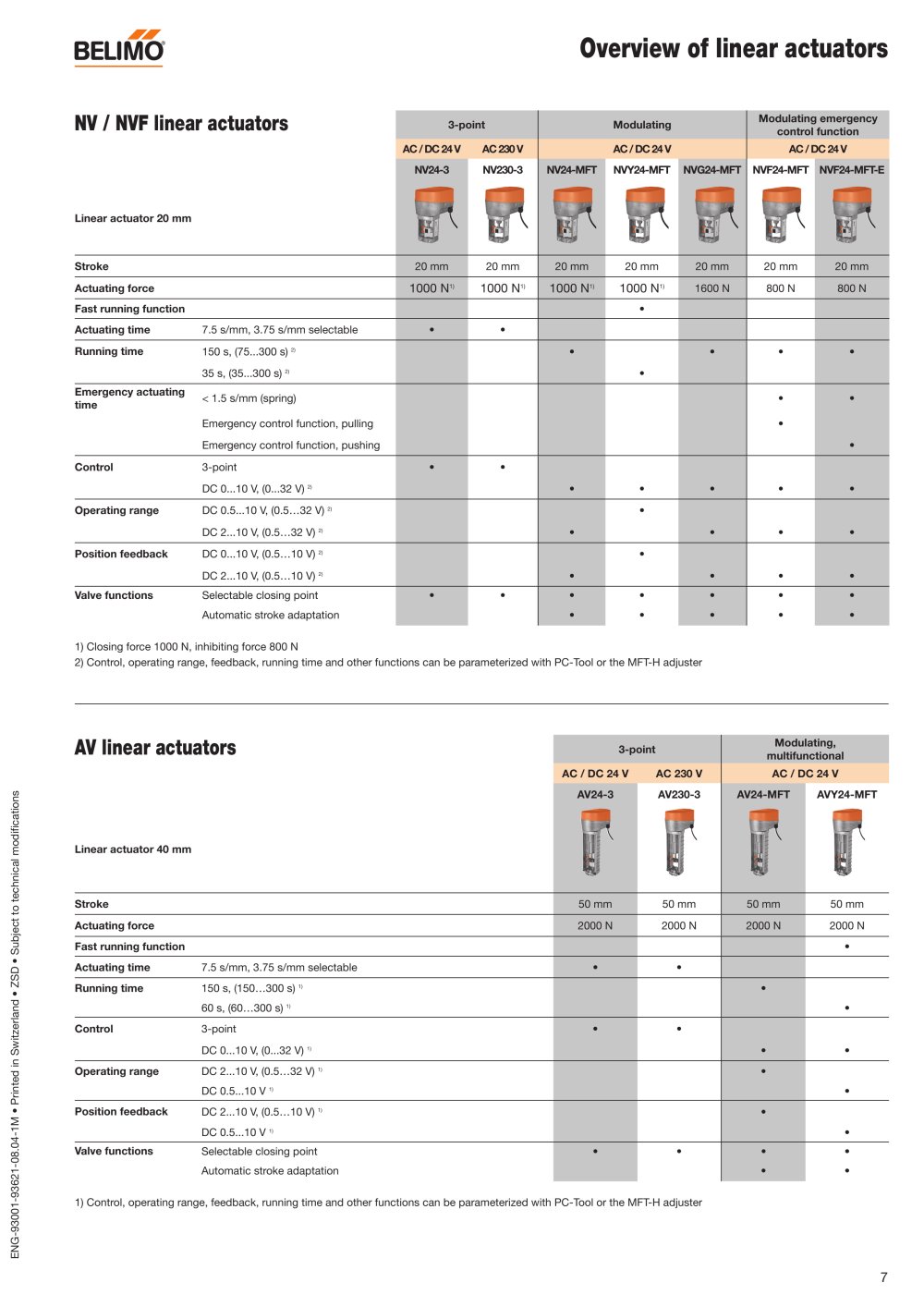

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 7 Overview of linear actuators NV / NVF linear actuators 3-point Modulating Modulating emergency control function AC / DC 24 V AC 230 V AC / DC 24 V AC / DC 24 V NV24-3 NV230-3 NV24-MFT NVY24-MFT NVG24-MFT NVF24-MFT NVF24-MFT-E Linear actuator 20 mm Stroke 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm Actuating force 1000 N1) 1000 N1) 1000 N1) 1000 N1) 1600 N 800 N 800 N Fast running function • Actuating time 7.5 s/mm, 3.75 s/mm selectable • • Running time 150 s, (75...300 s) 2) • • • • 35 s, (35...300 s) 2) • Emergency actuating time < 1.5 s/mm (spring) • • Emergency control function, pulling • Emergency control function, pushing • Control 3-point • • DC 0...10 V, (0...32 V) 2) • • • • • Operating range DC 0.5...10 V, (0.5…32 V) 2) • DC 2...10 V, (0.5…32 V) 2) • • • • Position feedback DC 0...10 V, (0.5…10 V) 2) • DC 2...10 V, (0.5…10 V) 2) • • • • Valve functions Selectable closing point • • • • • • • Automatic stroke adaptation • • • • • 1) Closing force 1000 N, inhibiting force 800 N 2) Control, operating range, feedback, running time and other functions can be parameterized with PC-Tool or the MFT-H adjuster AV linear actuators 3-point Modulating, multifunctional AC / DC 24 V AC 230 V AC / DC 24 V AV24-3 AV230-3 AV24-MFT AVY24-MFT Linear actuator 40 mm Stroke 50 mm 50 mm 50 mm 50 mm Actuating force 2000 N 2000 N 2000 N 2000 N Fast running function • Actuating time 7.5 s/mm, 3.75 s/mm selectable • • Running time 150 s, (150…300 s) 1) • 60 s, (60…300 s) 1) • Control 3-point • • DC 0...10 V, (0...32 V) 1) • • Operating range DC 2...10 V, (0.5…32 V) 1) • DC 0.5...10 V 1) • Position feedback DC 2...10 V, (0.5…10 V) 1) • DC 0.5...10 V 1) • Valve functions Selectable closing point • • • • Automatic stroke adaptation • • 1) Control, operating range, feedback, running time and other functions can be parameterized with PC-Tool or the MFT-H adjuster
