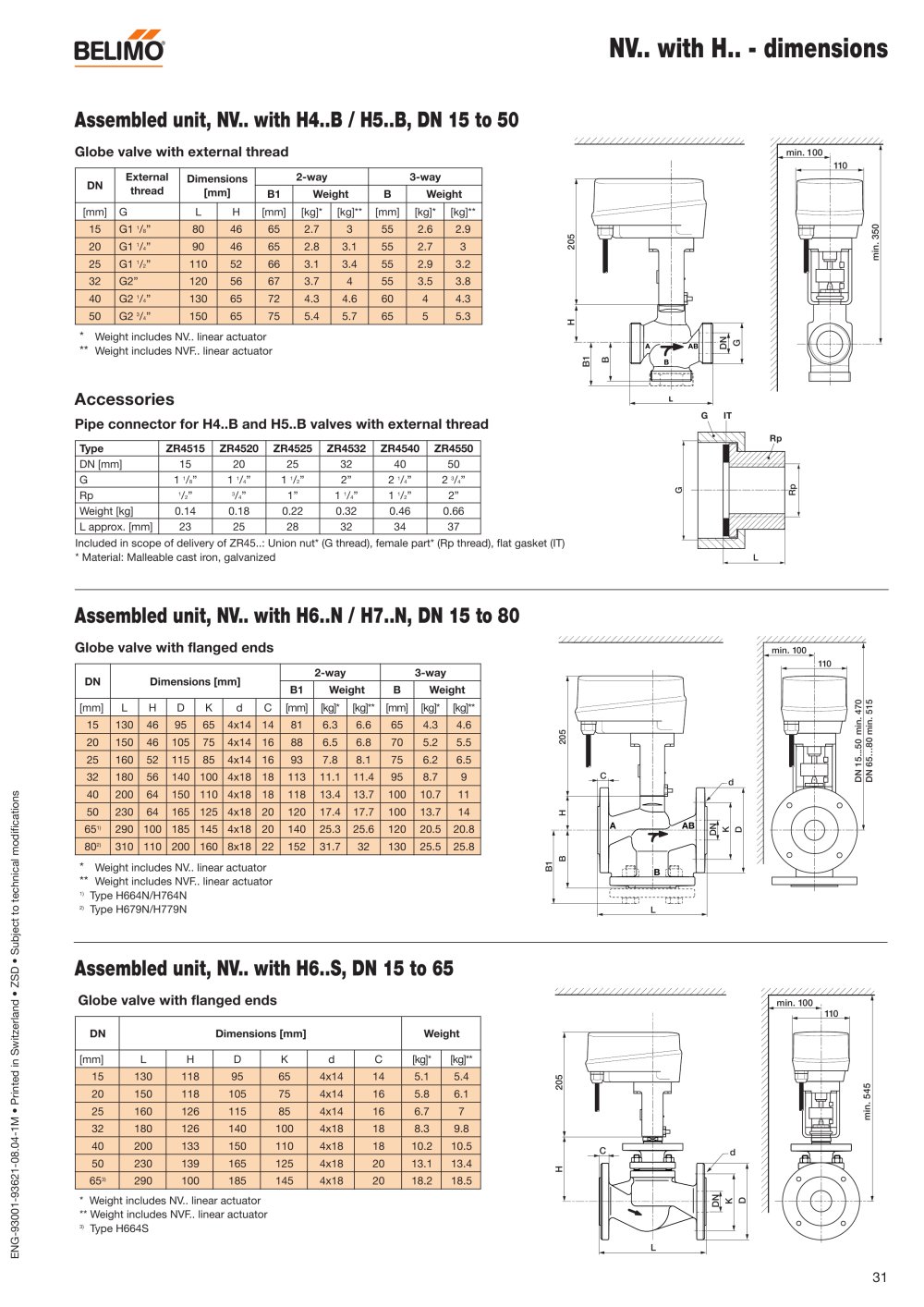

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 31 NV.. with H.. - dimensions L DN D K C B H 205 DN 15...50 min. 470 DN 65…80 min. 515 110 min. 100 A AB B d B1 DN External thread Dimensions [mm] 2-way 3-way B1 Weight B Weight [mm] G L H [mm] [kg]* [kg]** [mm] [kg]* [kg]** 15 G1 1/8” 80 46 65 2.7 3 55 2.6 2.9 20 G1 1/4” 90 46 65 2.8 3.1 55 2.7 3 25 G1 1/2” 110 52 66 3.1 3.4 55 2.9 3.2 32 G2” 120 56 67 3.7 4 55 3.5 3.8 40 G2 1/4” 130 65 72 4.3 4.6 60 4 4.3 50 G2 3/4” 150 65 75 5.4 5.7 65 5 5.3 * Weight includes NV.. linear actuator ** Weight includes NVF.. linear actuator IT Rp G G Rp L Type ZR4515 ZR4520 ZR4525 ZR4532 ZR4540 ZR4550 DN [mm] 15 20 25 32 40 50 G 1 1/8” 1 1/4” 1 1/2” 2” 2 1/4” 2 3/4” Rp 1/2” 3/4” 1” 1 1/4” 1 1/2” 2” Weight [kg] 0.14 0.18 0.22 0.32 0.46 0.66 L approx. [mm] 23 25 28 32 34 37 Included in scope of delivery of ZR45..: Union nut* (G thread), female part* (Rp thread), flat gasket (IT) * Material: Malleable cast iron, galvanized DN Dimensions [mm] 2-way 3-way B1 Weight B Weight [mm] L H D K d C [mm] [kg]* [kg]** [mm] [kg]* [kg]** 15 130 46 95 65 4x14 14 81 6.3 6.6 65 4.3 4.6 20 150 46 105 75 4x14 16 88 6.5 6.8 70 5.2 5.5 25 160 52 115 85 4x14 16 93 7.8 8.1 75 6.2 6.5 32 180 56 140 100 4x18 18 113 11.1 11.4 95 8.7 9 40 200 64 150 110 4x18 18 118 13.4 13.7 100 10.7 11 50 230 64 165 125 4x18 20 120 17.4 17.7 100 13.7 14 651) 290 100 185 145 4x18 20 140 25.3 25.6 120 20.5 20.8 802) 310 110 200 160 8x18 22 152 31.7 32 130 25.5 25.8 * Weight includes NV.. linear actuator ** Weight includes NVF.. linear actuator 1) Type H664N/H764N 2) Type H679N/H779N Assembled unit, NV.. with H4..B / H5..B, DN 15 to 50 Globe valve with external thread Accessories Pipe connector for H4..B and H5..B valves with external thread Assembled unit, NV.. with H6..N / H7..N, DN 15 to 80 Globe valve with flanged ends DN Dimensions [mm] Weight [mm] L H D K d C [kg]* [kg]** 15 130 118 95 65 4x14 14 5.1 5.4 20 150 118 105 75 4x14 16 5.8 6.1 25 160 126 115 85 4x14 16 6.7 7 32 180 126 140 100 4x18 18 8.3 9.8 40 200 133 150 110 4x18 18 10.2 10.5 50 230 139 165 125 4x18 20 13.1 13.4 653) 290 100 185 145 4x18 20 18.2 18.5 * Weight includes NV.. linear actuator ** Weight includes NVF.. linear actuator 3) Type H664S Assembled unit, NV.. with H6..S, DN 15 to 65 Globe valve with flanged ends L DN D K C H 205 min. 545 110 min. 100 d H 205 B G DN min. 350 110 min. 100 A AB B L B1
