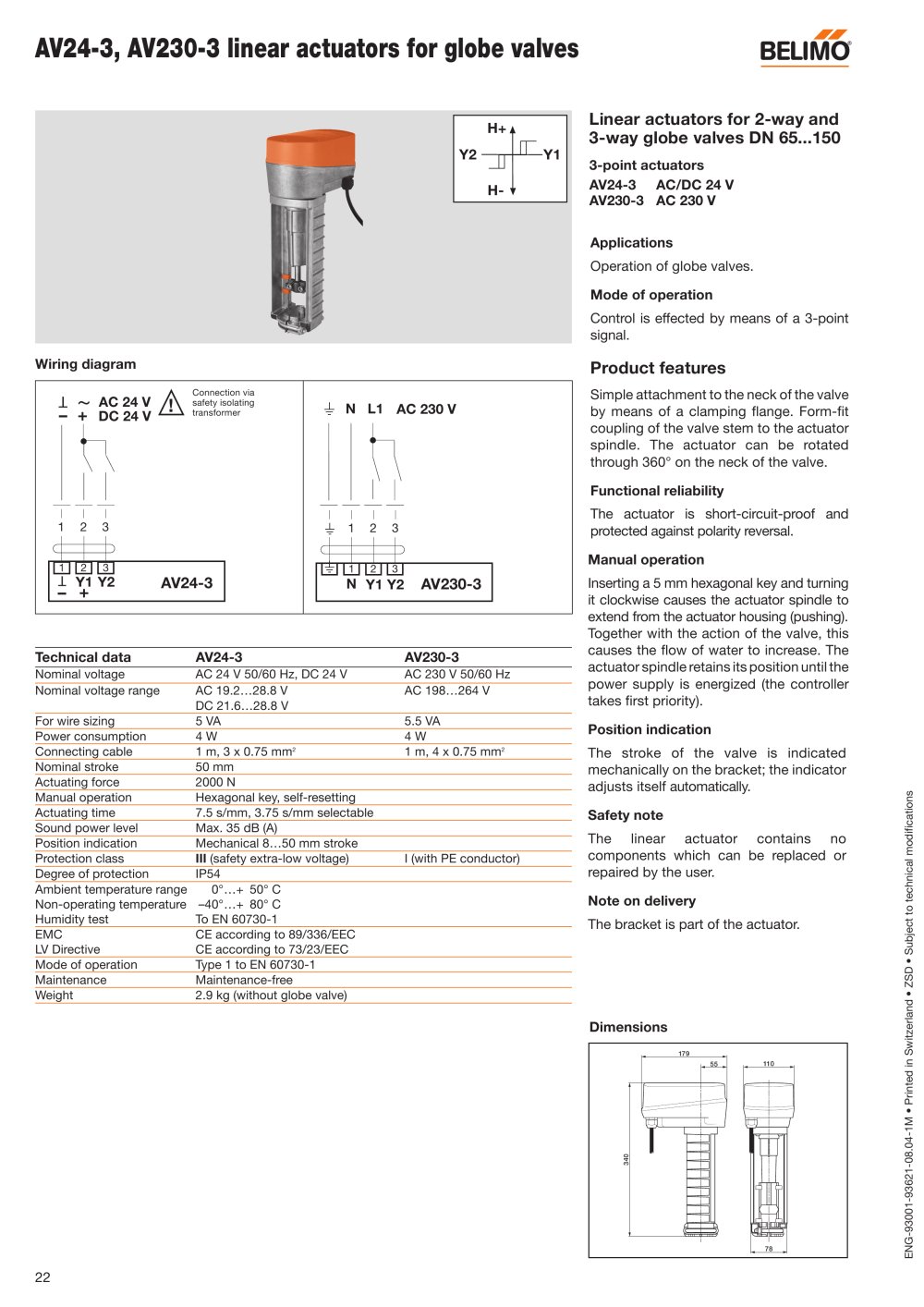

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 22 T ~ AC 24 V N L1 AC 230 V – + DC 24 V – + 1 2 3 Y1 AV24-3 Y2 T 1 2 3 1 2 3 Y1 Y2 AV230-3 1 2 3 N ! 340 78 55 110 179 Wiring diagram Linear actuators for 2-way and 3-way globe valves DN 65...150 3-point actuators AV24-3 AC/DC 24 V AV230-3 AC 230 V Applications Operation of globe valves. Mode of operation Control is effected by means of a 3-point signal. Product features Simple attachment to the neck of the valve by means of a clamping flange. Form-fit coupling of the valve stem to the actuator spindle. The actuator can be rotated through 360° on the neck of the valve. Functional reliability The actuator is short-circuit-proof and protected against polarity reversal. Manual operation Inserting a 5 mm hexagonal key and turning it clockwise causes the actuator spindle to extend from the actuator housing (pushing). Together with the action of the valve, this causes the flow of water to increase. The actuator spindle retains its position until the power supply is energized (the controller takes first priority). Position indication The stroke of the valve is indicated mechanically on the bracket; the indicator adjusts itself automatically. Safety note The linear actuator contains no components which can be replaced or repaired by the user. Note on delivery The bracket is part of the actuator. H+ Y2 Y1 HConnection via safety isolating transformer Dimensions AV24-3, AV230-3 linear actuators for globe valves Technical data AV24-3 AV230-3 Nominal voltage AC 24 V 50/60 Hz, DC 24 V AC 230 V 50/60 Hz Nominal voltage range AC 19.2…28.8 V DC 21.6…28.8 V AC 198…264 V For wire sizing 5 VA 5.5 VA Power consumption 4 W 4 W Connecting cable 1 m, 3 x 0.75 mm2 1 m, 4 x 0.75 mm2 Nominal stroke 50 mm Actuating force 2000 N Manual operation Hexagonal key, self-resetting Actuating time 7.5 s/mm, 3.75 s/mm selectable Sound power level Max. 35 dB (A) Position indication Mechanical 8…50 mm stroke Protection class III (safety extra-low voltage) I (with PE conductor) Degree of protection IP54 Ambient temperature range Non-operating temperature Humidity test 0° …+ 50° C –40° …+ 80° C To EN 60730-1 EMC LV Directive CE according to 89/336/EEC CE according to 73/23/EEC Mode of operation Type 1 to EN 60730-1 Maintenance Maintenance-free Weight 2.9 kg (without globe valve)
