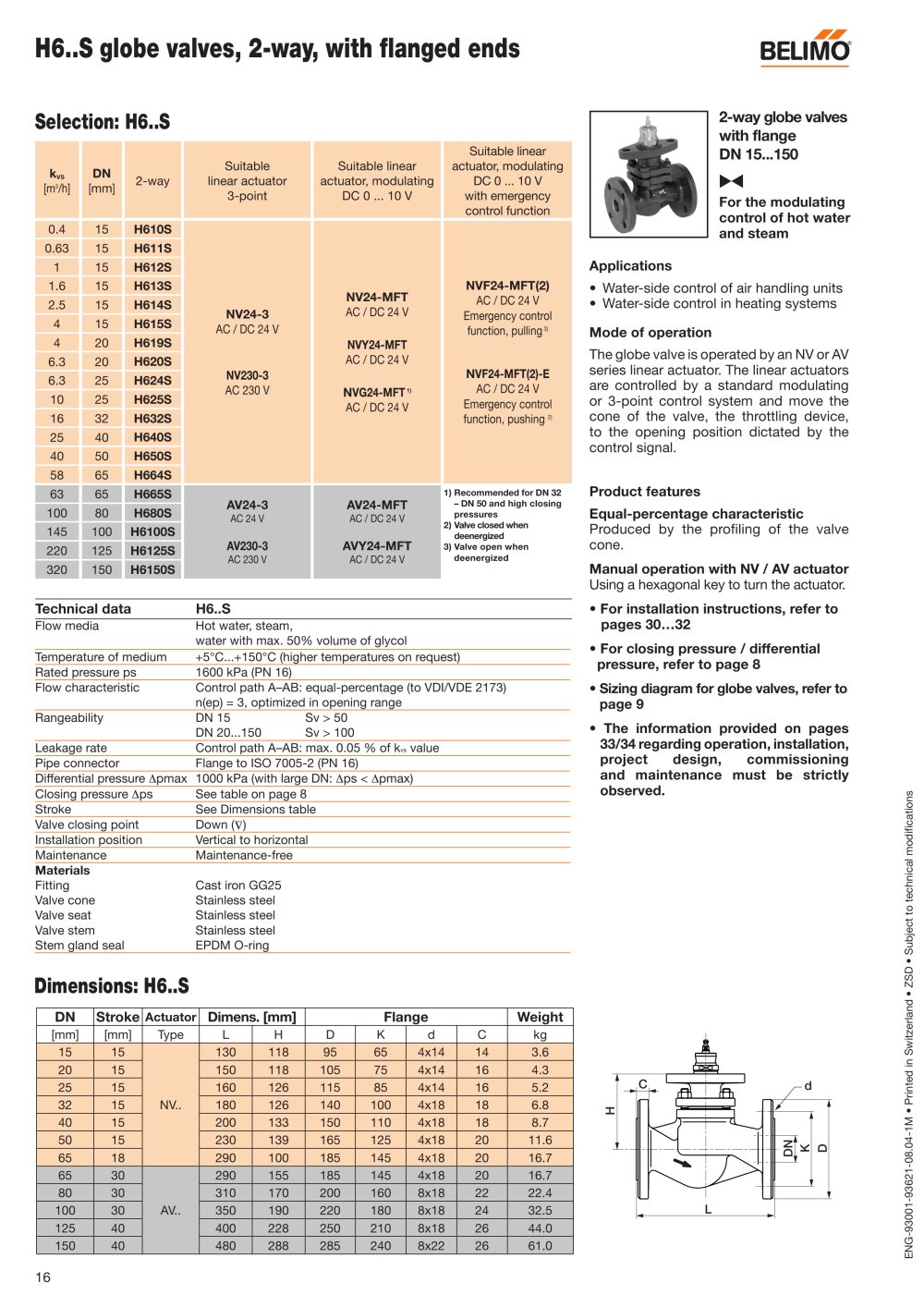

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 16 Applications • Water-side control of air handling units • Water-side control in heating systems Mode of operation The globe valve is operated by an NV or AV series linear actuator. The linear actuators are controlled by a standard modulating or 3-point control system and move the cone of the valve, the throttling device, to the opening position dictated by the control signal. Product features Equal-percentage characteristic Produced by the profiling of the valve cone. Manual operation with NV / AV actuator Using a hexagonal key to turn the actuator. • For installation instructions, refer to pages 30…32 • For closing pressure / differential pressure, refer to page 8 • Sizing diagram for globe valves, refer to page 9 • The information provided on pages 33/34 regarding operation, installation, project design, commissioning and maintenance must be strictly observed. Flow media Hot water, steam, water with max. 50% volume of glycol Temperature of medium +5°C...+150°C (higher temperatures on request) Rated pressure ps 1600 kPa (PN 16) Flow characteristic Control path A–AB: equal-percentage (to VDI/VDE 2173) n(ep) = 3, optimized in opening range Rangeability DN 15 Sv > 50 DN 20...150 Sv > 100 Leakage rate Control path A–AB: max. 0.05 % of kvs value Pipe connector Flange to ISO 7005-2 (PN 16) Differential pressure Äpmax 1000 kPa (with large DN: Äps < Äpmax) Closing pressure Äps See table on page 8 Stroke See Dimensions table Valve closing point Down ( Ä) Installation position Vertical to horizontal Maintenance Maintenance-free Materials Fitting Valve cone Valve seat Valve stem Stem gland seal Cast iron GG25 Stainless steel Stainless steel Stainless steel EPDM O-ring Technical data H6..S Selection: H6..S kVS [m3/h] DN [mm] 2-way Suitable linear actuator 3-point Suitable linear actuator, modulating DC 0 ... 10 V Suitable linear actuator, modulating DC 0 ... 10 V with emergency control function 0.4 15 H610S NV24-3 AC / DC 24 V NV230-3 AC 230 V NV24-MFT AC / DC 24 V NVY24-MFT AC / DC 24 V NVG24-MFT 1) AC / DC 24 V NVF24-MFT(2) AC / DC 24 V Emergency control function, pulling 3) NVF24-MFT(2)-E AC / DC 24 V Emergency control function, pushing 2) 0.63 15 H611S 1 15 H612S 1.6 15 H613S 2.5 15 H614S 4 15 H615S 4 20 H619S 6.3 20 H620S 6.3 25 H624S 10 25 H625S 16 32 H632S 25 40 H640S 40 50 H650S 58 65 H664S 63 65 H665S AV24-3 AC 24 V AV230-3 AC 230 V AV24-MFT AC / DC 24 V AVY24-MFT AC / DC 24 V 1) Recommended for DN 32 – DN 50 and high closing pressures 2) Valve closed when deenergized 3) Valve open when deenergized 100 80 H680S 145 100 H6100S 220 125 H6125S 320 150 H6150S 2-way globe valves with flange DN 15...150 For the modulating control of hot water and steam L H DN D K C d Dimensions: H6..S H6..S globe valves, 2-way, with flanged ends DN Stroke Actuator Dimens. [mm] Flange Weight [mm] [mm] Type L H D K d C kg 15 15 NV.. 130 118 95 65 4x14 14 3.6 20 15 150 118 105 75 4x14 16 4.3 25 15 160 126 115 85 4x14 16 5.2 32 15 180 126 140 100 4x18 18 6.8 40 15 200 133 150 110 4x18 18 8.7 50 15 230 139 165 125 4x18 20 11.6 65 18 290 100 185 145 4x18 20 16.7 65 30 AV.. 290 155 185 145 4x18 20 16.7 80 30 310 170 200 160 8x18 22 22.4 100 30 350 190 220 180 8x18 24 32.5 125 40 400 228 250 210 8x18 26 44.0 150 40 480 288 285 240 8x22 26 61.0
