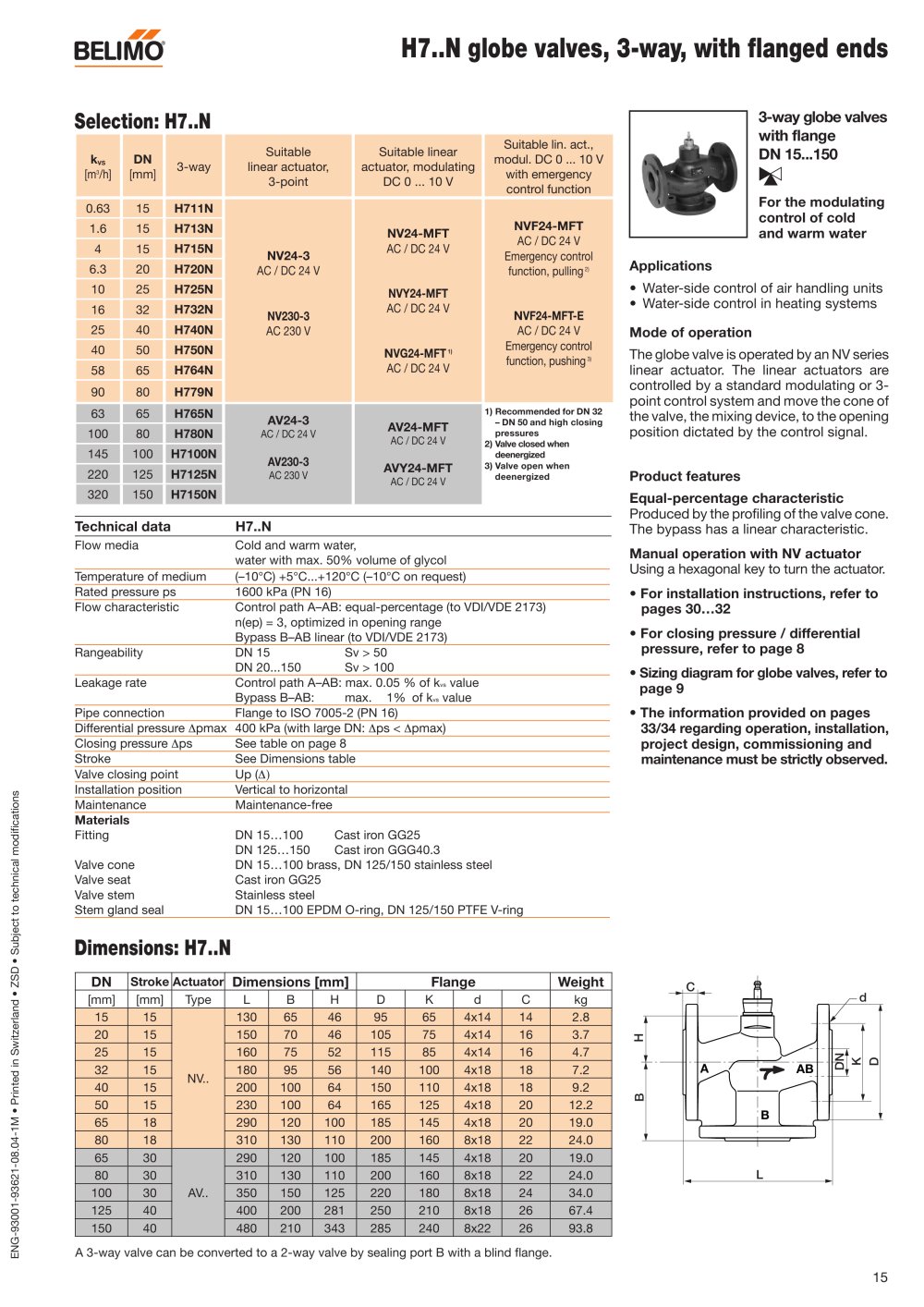

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 15 H7..N globe valves, 3-way, with flanged ends Flow media Cold and warm water, water with max. 50% volume of glycol Temperature of medium (–10°C) +5°C...+120°C (–10°C on request) Rated pressure ps 1600 kPa (PN 16) Flow characteristic Control path A–AB: equal-percentage (to VDI/VDE 2173) n(ep) = 3, optimized in opening range Bypass B–AB linear (to VDI/VDE 2173) Rangeability DN 15 Sv > 50 DN 20...150 Sv > 100 Leakage rate Control path A–AB: max. 0.05 % of kvs value Bypass B–AB: max. 1% of kvs value Pipe connection Flange to ISO 7005-2 (PN 16) Differential pressure Äpmax 400 kPa (with large DN: Äps < Äpmax) Closing pressure Äps See table on page 8 Stroke See Dimensions table Valve closing point Up (Ä) Installation position Vertical to horizontal Maintenance Maintenance-free Materials Fitting Valve cone Valve seat Valve stem Stem gland seal DN 15…100 Cast iron GG25 DN 125…150 Cast iron GGG40.3 DN 15…100 brass, DN 125/150 stainless steel Cast iron GG25 Stainless steel DN 15…100 EPDM O-ring, DN 125/150 PTFE V-ring Technical data H7..N Selection: H7..N kVS [m3/h] DN [mm] 3-way Suitable linear actuator, 3-point Suitable linear actuator, modulating DC 0 ... 10 V Suitable lin. act., modul. DC 0 ... 10 V with emergency control function 0.63 15 H711N NV24-3 AC / DC 24 V NV230-3 AC 230 V NV24-MFT AC / DC 24 V NVY24-MFT AC / DC 24 V NVG24-MFT 1) AC / DC 24 V NVF24-MFT AC / DC 24 V Emergency control function, pulling 2) NVF24-MFT-E AC / DC 24 V Emergency control function, pushing 3) 1.6 15 H713N 4 15 H715N 6.3 20 H720N 10 25 H725N 16 32 H732N 25 40 H740N 40 50 H750N 58 65 H764N 90 80 H779N 63 65 H765N AV24-3 AC / DC 24 V AV230-3 AC 230 V AV24-MFT AC / DC 24 V AVY24-MFT AC / DC 24 V 1) Recommended for DN 32 – DN 50 and high closing pressures 2) Valve closed when deenergized 3) Valve open when deenergized 100 80 H780N 145 100 H7100N 220 125 H7125N 320 150 H7150N Applications • Water-side control of air handling units • Water-side control in heating systems Mode of operation The globe valve is operated by an NV series linear actuator. The linear actuators are controlled by a standard modulating or 3- point control system and move the cone of the valve, the mixing device, to the opening position dictated by the control signal. Product features Equal-percentage characteristic Produced by the profiling of the valve cone. The bypass has a linear characteristic. Manual operation with NV actuator Using a hexagonal key to turn the actuator. • For installation instructions, refer to pages 30…32 • For closing pressure / differential pressure, refer to page 8 • Sizing diagram for globe valves, refer to page 9 • The information provided on pages 33/34 regarding operation, installation, project design, commissioning and maintenance must be strictly observed. 3-way globe valves with flange DN 15...150 For the modulating control of cold and warm water Dimensions: H7..N DN Stroke Actuator Dimensions [mm] Flange Weight [mm] [mm] Type L B H D K d C kg 15 15 NV.. 130 65 46 95 65 4x14 14 2.8 20 15 150 70 46 105 75 4x14 16 3.7 25 15 160 75 52 115 85 4x14 16 4.7 32 15 180 95 56 140 100 4x18 18 7.2 40 15 200 100 64 150 110 4x18 18 9.2 50 15 230 100 64 165 125 4x18 20 12.2 65 18 290 120 100 185 145 4x18 20 19.0 80 18 310 130 110 200 160 8x18 22 24.0 65 30 AV.. 290 120 100 185 145 4x18 20 19.0 80 30 310 130 110 200 160 8x18 22 24.0 100 30 350 150 125 220 180 8x18 24 34.0 125 40 400 200 281 250 210 8x18 26 67.4 150 40 480 210 343 285 240 8x22 26 93.8 A 3-way valve can be converted to a 2-way valve by sealing port B with a blind flange. L B H DN D K C d A AB B
