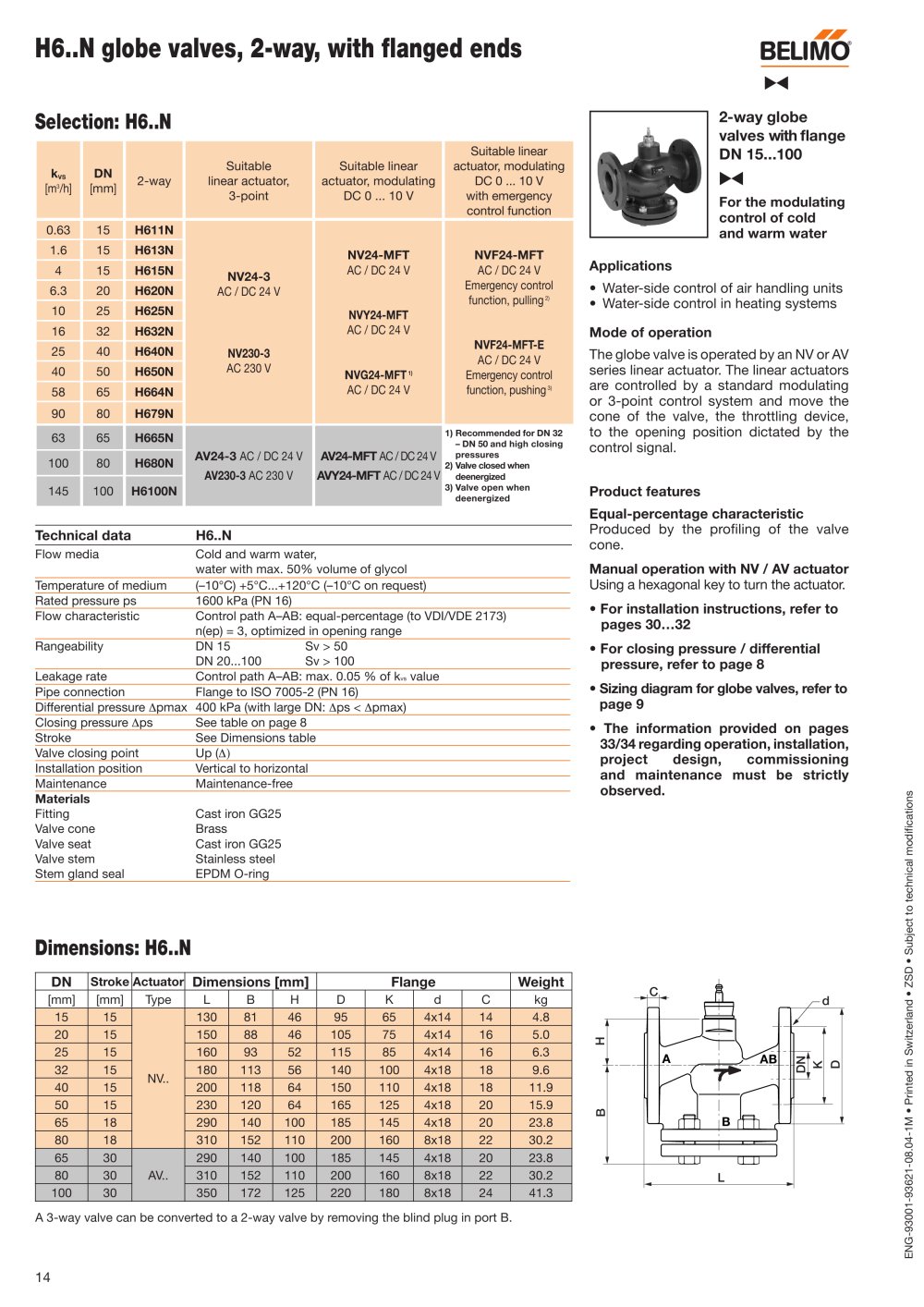

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 14 H6..N globe valves, 2-way, with flanged ends Applications • Water-side control of air handling units • Water-side control in heating systems Mode of operation The globe valve is operated by an NV or AV series linear actuator. The linear actuators are controlled by a standard modulating or 3-point control system and move the cone of the valve, the throttling device, to the opening position dictated by the control signal. Product features Equal-percentage characteristic Produced by the profiling of the valve cone. Manual operation with NV / AV actuator Using a hexagonal key to turn the actuator. • For installation instructions, refer to pages 30…32 • For closing pressure / differential pressure, refer to page 8 • Sizing diagram for globe valves, refer to page 9 • The information provided on pages 33/34 regarding operation, installation, project design, commissioning and maintenance must be strictly observed. Flow media Cold and warm water, water with max. 50% volume of glycol Temperature of medium (–10°C) +5°C...+120°C (–10°C on request) Rated pressure ps 1600 kPa (PN 16) Flow characteristic Control path A–AB: equal-percentage (to VDI/VDE 2173) n(ep) = 3, optimized in opening range Rangeability DN 15 Sv > 50 DN 20...100 Sv > 100 Leakage rate Control path A–AB: max. 0.05 % of kvs value Pipe connection Flange to ISO 7005-2 (PN 16) Differential pressure Äpmax 400 kPa (with large DN: Äps < Äpmax) Closing pressure Äps See table on page 8 Stroke See Dimensions table Valve closing point Up (Ä) Installation position Vertical to horizontal Maintenance Maintenance-free Materials Fitting Valve cone Valve seat Valve stem Stem gland seal Cast iron GG25 Brass Cast iron GG25 Stainless steel EPDM O-ring Technical data H6..N Selection: H6..N kVS [m3/h] DN [mm] 2-way Suitable linear actuator, 3-point Suitable linear actuator, modulating DC 0 ... 10 V Suitable linear actuator, modulating DC 0 ... 10 V with emergency control function 0.63 15 H611N NV24-3 AC / DC 24 V NV230-3 AC 230 V NV24-MFT AC / DC 24 V NVY24-MFT AC / DC 24 V NVG24-MFT 1) AC / DC 24 V NVF24-MFT AC / DC 24 V Emergency control function, pulling 2) NVF24-MFT-E AC / DC 24 V Emergency control function, pushing 3) 1.6 15 H613N 4 15 H615N 6.3 20 H620N 10 25 H625N 16 32 H632N 25 40 H640N 40 50 H650N 58 65 H664N 90 80 H679N 63 65 H665N AV24-3 AC / DC 24 V AV230-3 AC 230 V AV24-MFT AC / DC 24 V AVY24-MFT AC / DC 24 V 1) Recommended for DN 32 – DN 50 and high closing pressures 2) Valve closed when deenergized 3) Valve open when deenergized 100 80 H680N 145 100 H6100N Dimensions: H6..N DN Stroke Actuator Dimensions [mm] Flange Weight [mm] [mm] Type L B H D K d C kg 15 15 NV.. 130 81 46 95 65 4x14 14 4.8 20 15 150 88 46 105 75 4x14 16 5.0 25 15 160 93 52 115 85 4x14 16 6.3 32 15 180 113 56 140 100 4x18 18 9.6 40 15 200 118 64 150 110 4x18 18 11.9 50 15 230 120 64 165 125 4x18 20 15.9 65 18 290 140 100 185 145 4x18 20 23.8 80 18 310 152 110 200 160 8x18 22 30.2 65 30 AV.. 290 140 100 185 145 4x18 20 23.8 80 30 310 152 110 200 160 8x18 22 30.2 100 30 350 172 125 220 180 8x18 24 41.3 A 3-way valve can be converted to a 2-way valve by removing the blind plug in port B. L B H DN D K C d A AB B 2-way globe valves with flange DN 15...100 For the modulating control of cold and warm water
