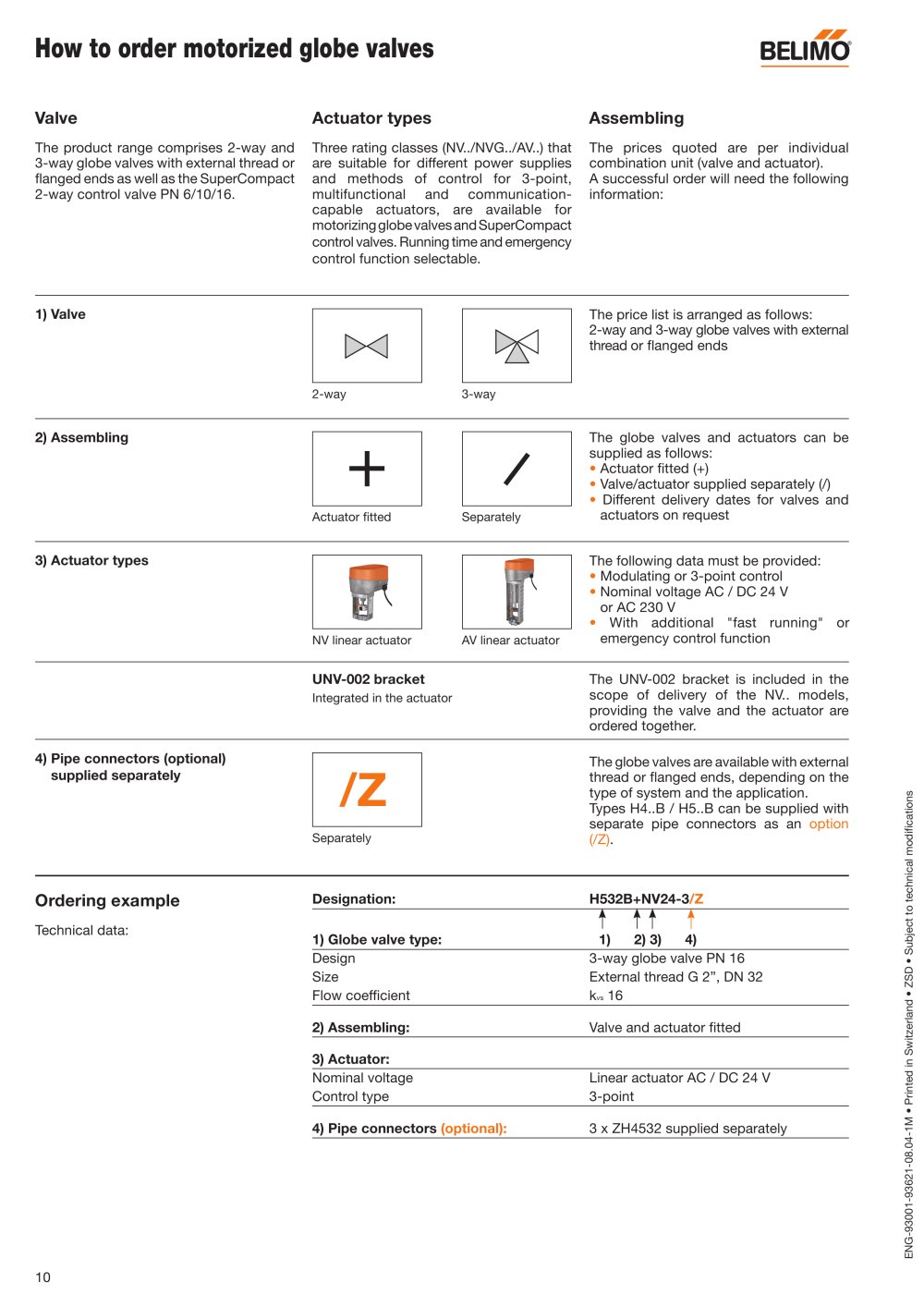

ENG-93001-93621-08.04-1M • Printed in Switzerland • ZSD • Subject to technical modifications BC 10 How to order motorized globe valves Valve The product range comprises 2-way and 3-way globe valves with external thread or flanged ends as well as the SuperCompact 2-way control valve PN 6/10/16. Actuator types Three rating classes (NV../NVG../AV..) that are suitable for different power supplies and methods of control for 3-point, multifunctional and communicationcapable actuators, are available for motorizing globe valves and SuperCompact control valves. Running time and emergency control function selectable. Assembling The prices quoted are per individual combination unit (valve and actuator). A successful order will need the following information: 2) Assembling 1) Valve 3) Actuator types UNV-002 bracket Integrated in the actuator The price list is arranged as follows: 2-way and 3-way globe valves with external thread or flanged ends 2-way 3-way Actuator fitted Separately The globe valves and actuators can be supplied as follows: • Actuator fitted (+) • Valve/actuator supplied separately (/) • Different delivery dates for valves and actuators on request The following data must be provided: • Modulating or 3-point control • Nominal voltage AC / DC 24 V or AC 230 V • With additional "fast running" or NV linear actuator AV linear actuator emergency control function 4) Pipe connectors (optional) supplied separately The UNV-002 bracket is included in the scope of delivery of the NV.. models, providing the valve and the actuator are ordered together. /Z Separately The globe valves are available with external thread or flanged ends, depending on the type of system and the application. Types H4..B / H5..B can be supplied with separate pipe connectors as an option (/Z). Ordering example Technical data: Designation: H532B+NV24-3/Z 1) Globe valve type: 1) 2) 3) 4) Design 3-way globe valve PN 16 Size External thread G 2”, DN 32 Flow coefficient kvs 16 2) Assembling: Valve and actuator fitted 3) Actuator: Nominal voltage Linear actuator AC / DC 24 V Control type 3-point 4) Pipe connectors (optional): 3 x ZH4532 supplied separately
