Quality, Precision + Reliability

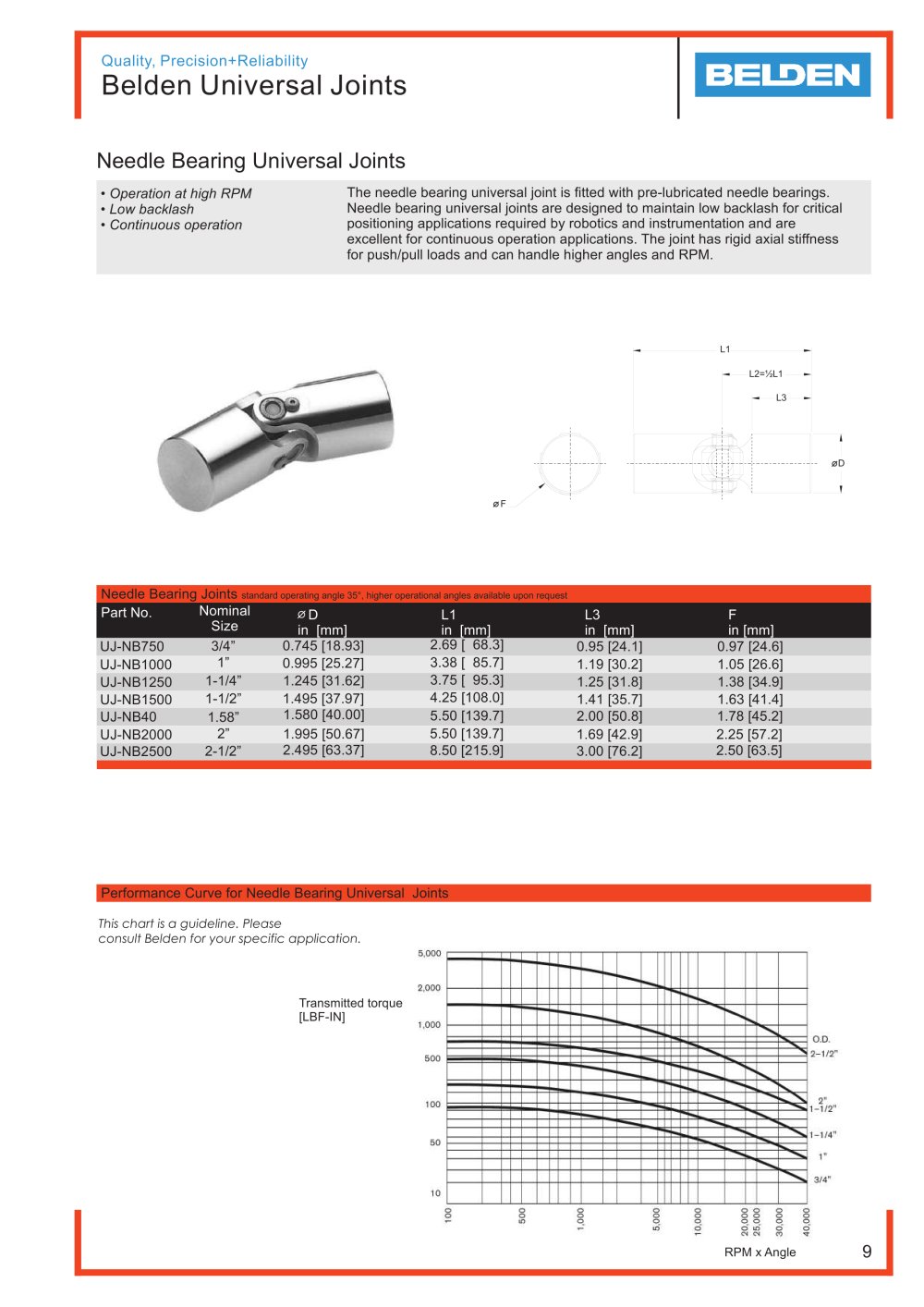

Belden Universal Joints
Needle Bearing Universal Joints
• Operation at high RPM The needle bearing universal joint is fitted with pre-lubricated needle bearings.
• Low backlash Needle bearing universal joints are designed to maintain low backlash for critical
• Continuous operation positioning applications required by robotics and instrumentation and are
excellent for continuous operation applications. The joint has rigid axial stiffness for push/pull loads and can handle higher angles and RPM.
Needle Bearing Joints standard operating angle 35°, higher operational angles available upon request
Part No.
Nominal
0D
L1
L3
F
Size
in [mm]
in [mm]
in [mm]
in [mm]
UJ-NB750
3/4"
0.745 [18.93]
2.69 [ 68.3]
0.95 [24.1]
0.97 [24.6]
UJ-NB1000
1"
0.995 [25.27]
3.38 [ 85.7]
1.19 [30.2]
1.05 [26.6]
UJ-NB1250
1-1/4"
1.245 [31.62]
3.75 [ 95.3]
1.25 [31.8]
1.38 [34.9]
UJ-NB1500
1-1/2"
1.495 [37.97]
4.25 [108.0]
1.41 [35.7]
1.63 [41.4]
UJ-NB40
1.58"
1.580 [40.00]
5.50 [139.7]
2.00 [50.8]
1.78 [45.2]
UJ-NB2000
2"
1.995 [50.67]
5.50 [139.7]
1.69 [42.9]
2.25 [57.2]
UJ-NB2500
2-1/2"
2.495 [63.37]
8.50 [215.9]
3.00 [76.2]
2.50 [63.5]
RPM x Angle
9
