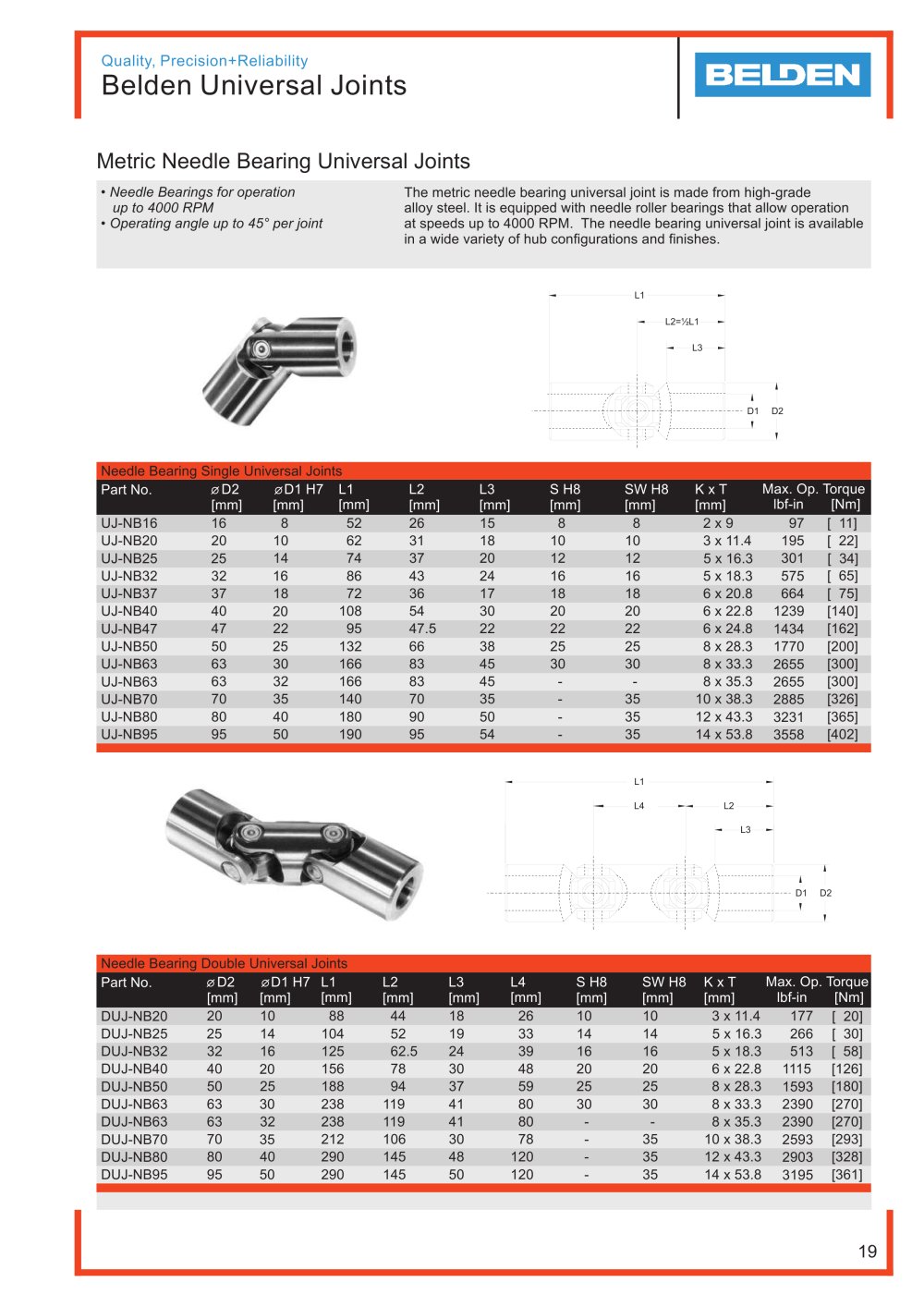

Quality, Precision + Reliability

Beiden Universal Joints

Metric Needle Bearing Universal Joints

• Needle Bearings for operation The metric needle bearing universal joint is made from high-grade

up to 4000 RPM alloy steel. It is equipped with needle roller bearings that allow operation

• Operating angles up to 45° at speeds up to 4000 RPM. The needle bearing universal joint is available in

a wide variety of hub configurations and finishes.

D1 D2

Needle Bearing Single Universal Joints


	Part No.	0D2	0D1 H7	L1	L2	L3	SH8	SW H8	KxT	Max. Op. Torque
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	lbf-in	[Nm]
	UJ-NB16	16	8	52	26	15	8	8	2x9	97	[ 11]
	UJ-NB20	20	10	62	31	18	10	10	3x11.4	195	[ 22]
	UJ-NB25	25	14	74	37	20	12	12	5 x 16.3	301	[ 34]
	UJ-NB32	32	16	86	43	24	16	16	5 x 18.3	575	[ 65]
	UJ-NB37	37	18	72	36	17	18	18	6 x 20.8	664	[ 75]
	UJ-NB40	40	20	108	54	30	20	20	6 x 22.8	1239	[140]
	UJ-NB47	47	22	95	47.5	22	22	22	6 x 24.8	1434	[162]
	UJ-NB50	50	25	132	66	38	25	25	8 x 28.3	1770	[200]
	UJ-NB63	63	30	166	83	45	30	30	8 x 33.3	2655	[300]
	UJ-NB63	63	32	166	83	45	-	-	8 x 35.3	2655	[300]
	UJ-NB70	70	35	140	70	35	-	35	10x38.3	2885	[326]
	UJ-NB80	80	40	180	90	50	-	35	12x43.3	3231	[365]
	UJ-NB95	95	50	190	95	54	-	35	14x53.8	3558	[402]

D1 D2

Needle Bearing Double Universal Joints


	Part No.	0D2	0D1 H7	L1	L2	L3	L4	SH8	SW H8	KxT	Max. Op. Torque
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	lbf-in	[Nm]
	DUJ-NB20	20	10	88	44	18	26	10	10	3x11.4	177	[ 20]
	DUJ-NB25	25	14	104	52	19	33	14	14	5 x 16.3	266	[ 30]
	DUJ-NB32	32	16	125	62.5	24	39	16	16	5 x 18.3	513	[ 58]
	DUJ-NB40	40	20	156	78	30	48	20	20	6 x 22.8	1115	[126]
	DUJ-NB50	50	25	188	94	37	59	25	25	8 x 28.3	1593	[180]
	DUJ-NB63	63	30	238	119	41	80	30	30	8 x 33.3	2390	[270]
	DUJ-NB63	63	32	238	119	41	80	-	-	8 x 35.3	2390	[270]
	DUJ-NB70	70	35	212	106	30	78	-	35	10x38.3	2593	[293]
	DUJ-NB80	80	40	290	145	48	120	-	35	12x43.3	2903	[328]
	DUJ-NB95	95	50	290	145	50	120	-	35	14x53.8	3195	[361]

19
