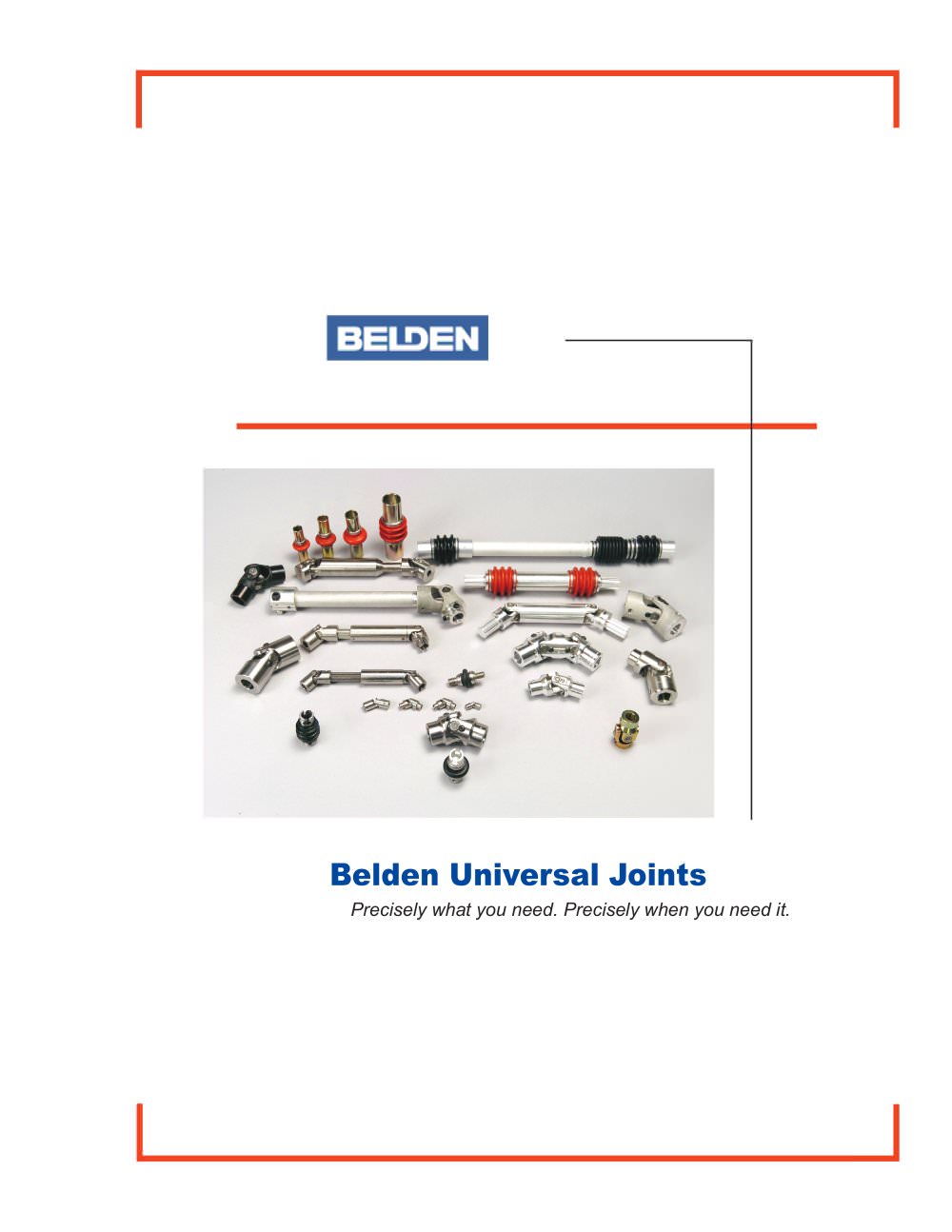

Belden Universal Joints
26Pages

Quality, Precision+Reliability Belden Universal Joints With over 30 years of experience, Belden provides the solutions to your most difficult universal joint requirements. Dedicated to producing the most cost-effective power transmission components for your demanding applications, Belden has the answer to all of your universal joint needs. Industries Served Belden universal joints satisfy a broad spectrum of system design requirements and should be considered when engineers are faced with the complicated challenges of today's manufacturing demands. The Belden universal joint has become...

Quality, Precision+Reliability Belden Universal Joints EAGLE Registrations Inc. &^i*<mfa4'*,friwti௨ SEIVICI INIIOI lit ' VALUE 24WKettenntf Tower. Dayton. Otiio 45423 USA www. eagttiRsgisttatiQiis. corn Certificate No. 3729 (2 Copies) 11/1/2007 through 10/31/2010 Certificate of Registration This is to certify that the Quality Management System of 2500 Braga Drive, Broadview, Illinois 60155 Has been assessed by EAGLE Registrations Inc. and conforms with the following standard: ISO 9001:2000 Scope of Registration The Design and Manufacture of Universal Joints and Complete Shaft Assemblies for...

Quality, Precision+Reliability Belden Stainless Steel Joints Stainless Steel Universal Joints Belden Inc. manufactures an extensive standard line of stainless steel universal joints. Based on the standard design concept, Belden engineers can develop customized solutions for virtually any application. The standard stainless steel joint is made from AISI 303 and AISI 416 stainless steel. The joint yokes are 303 and the pins and blocks are made from hardened 416 stainless steel to provide higher strength and improved wear resistance. Yokes can be made from 303, 304, 316L, 416 or 420 stainless...

Quality, Precision+Reliability Belden Stainless Steel Joints Custom Stainless Steel Universal Joints Assemblies Custom applications can require specific material. Belden can machine a wide variety of stainless steel grades. One such application that required a higher grade of stainless steel was the connection shafts for an Under Sea Oil Valve Actuation. The shafts for this application were designed to telescope in length in order to adapt to small movements and relocation of the equipment's position. All universal joint yokes as well as pin and block components were made from 316L for...

Quality, Precision+Reliability Belden Universal Joints for Leveling and Steelworking Machines Belden Inc. manufactures universal joints designed specifically for the steel processing and roll forming industry. Belden's leveling universal joint is similar in design to the high strength universal joint and it easily handles the tough operating conditions of the steel and roll forming process. The Leveler Strength universal joint out performs the competition. Standard Leveler Style Universal Joints Part No. Nominal 0D L1 L3 Ultimate Torque Max. Operating Torque Size in [mm] in [mm] in [mm]...

Quality, Precision+Reliability Belden Universal Joints for Packaging, Labeling, Food Processing Machines, Packaging/Converting and Conveying Heavy duty, high strength and needle bearing universal joints from Belden fit applications such as packaging, conveying, casing, wrapping, labeling, marking, placing, bottling, canning and inserting. Machined from stainless steel, the universal joints are resistant to sterilizing solutions, nitric acid, inorganic chemicals, foods, and to most organic chemicals and dyes. Stainless steel universal joints offer durability and versatility in any equipment...

Quality, Precision+Reliability Belden Steering & Shift Linkage U-Joints Belden Inc. serves the transportation industry with universal joints and drive shaft assemblies for a variety of steering and gear change linkage applications. Belden's products can be found in everything from race cars to boats to industrial vehicles. Precision machining has made the Belden universal joint a steering industry standard. Belden is committed to providing reliable, continually tested, and certified universal joints. Belden engineers have developed steering solutions for the racing industry focused on the...

Quality, Precision+Reliability Belden Universal Joints for Military Applications Universal Joints for Steering Applications Belden manufactures custom steering assemblies for various vehicles to customer's exact specifications. Many steering components for this industry are unique to the type of vehicle and the manufacturer's strict guidelines. Applications in this classification are as diverse as the imagination will allow and include: military vehicles, ATVs, industrial maintenance vehicles and utility trucks. Belden provides steering components and complete assemblies in aluminum for...

Quality, Precision+Reliability Belden Aerospace Universal Joints Product Capabilities Additional coatings for pin and block and a wide range of materials such as precipitation hardened stainless steel and aluminum, for high strength to weight ratio, are available for aerospace applications. All universal joints can be customized with a variety of hub and connection methods including internal or external splines. Belden supplied booted and unbooted versions of several universal joints and complete shaft assemblies made from plated alloy steel and stainless steel. Customers including SKF...

Quality, Precision+Reliability Belden Aerospace Universal Joints Year of manufacture: 1998 to present U-joint materials used: Yokes: plated alloy steel Blocks and pins: plated alloy steel The Mil-Spec joint is used for a variety of applications in aircrafts, including positioning applications and flap control and operation.

Quality, Precision+Reliability Belden Universal Joints for Military Applications Needle Bearing Drive Shaft Assembly for Multi Role Military Vehicles Belden Inc. was contacted to supply a universal joint drive shaft assembly to connect the diesel engine and the compressor for the air conditioning unit of a multi-role armored vehicle. The customer originally specified a standard 32mm OD needle bearing drive shaft with stainless steel yokes and a quick release hub feature for the initial testing. The entire vehicle was placed in to a climate chamber to replicate the possible environmental...
