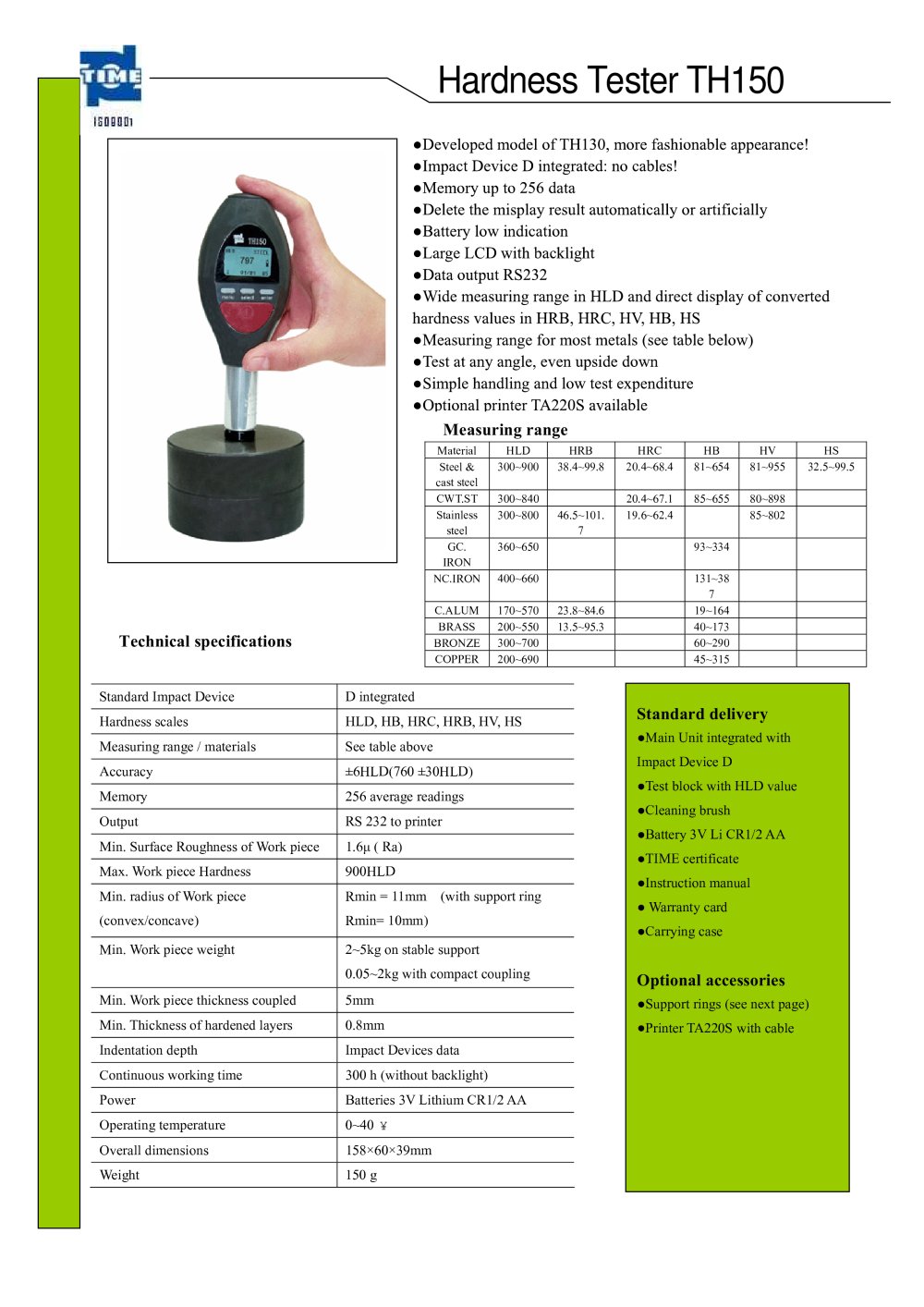

Hardness tester TH150

i 3D g DDI

•Developed model of TH130, more fashionable appearance! •Impact Device D integrated: no cables! •Memory up to 256 data

•Delete the misplay result automatically or artificially •Battery low indication •Large LCD with backlight •Data output RS232

•Wide measuring range in HLD and direct display of converted hardness values in HRB, HRC, HV, HB, HS •Measuring range for most metals (see table below) •Test at any angle, even upside down • Simple handling and low test expenditure •Optional printer TA220S available Measuring range


Material	HLD	HRB	HRC	HB	HV	HS
Steel & cast steel	300-900	38.4-99.8	20.4-68.4	81-654	81-955	32.5-99.5
CWT.ST	300-840		20.4-67.1	85-655	80-898
Stainless steel	300-800	46.5-101. 7	19.6-62.4		85-802
GC. IRON	360-650			93-334
NC.IRON	400-660			131-38 7
C.ALUM	170-570	23.8-84.6		19-164
BRASS	200-550	13.5-95.3		40-173
BRONZE	300-700			60-290
COPPER	200-690			45-315

Technical specifications


	Standard Impact Device	D integrated
	Hardness scales	HLD, HB, HRC, HRB, HV, HS
	Measuring range / materials	See table above
	Accuracy	±6HLD(760 ±30HLD)
	Memory	256 average readings
	Output	RS 232 to printer
	Min. Surface Roughness of Work piece	1.6(x(Ra)
	Max. Work piece Hardness	900HLD
	Min. radius of Work piece	Rmin = 11mm (with support ring
	(convex/ concave)	Rmin= 10mm)
	Min. Work piece weight	2- 5kg on stable support
		0.05~2kg with compact coupling
	Min. Work piece thickness coupled	5mm
	Min. Thickness of hardened layers	0.8mm
	Indentation depth	Impact Devices data
	Continuous working time	300 h (without backlight)
	Power	Batteries 3V Lithium CR1/2 AA
	Operating temperature	0-40 ¥
	Overall dimensions	158x60x39mm
	Weight	150 g

Standard delivery

•Main Unit integrated with Impact Device D •Test block with HLD value •Cleaning brush •Battery 3V Li CR1/2 AA •TIME certificate •Instruction manual • Warranty card •Carrying case

Optional accessories

•Support rings (see next page) •Printer TA220S with cable
