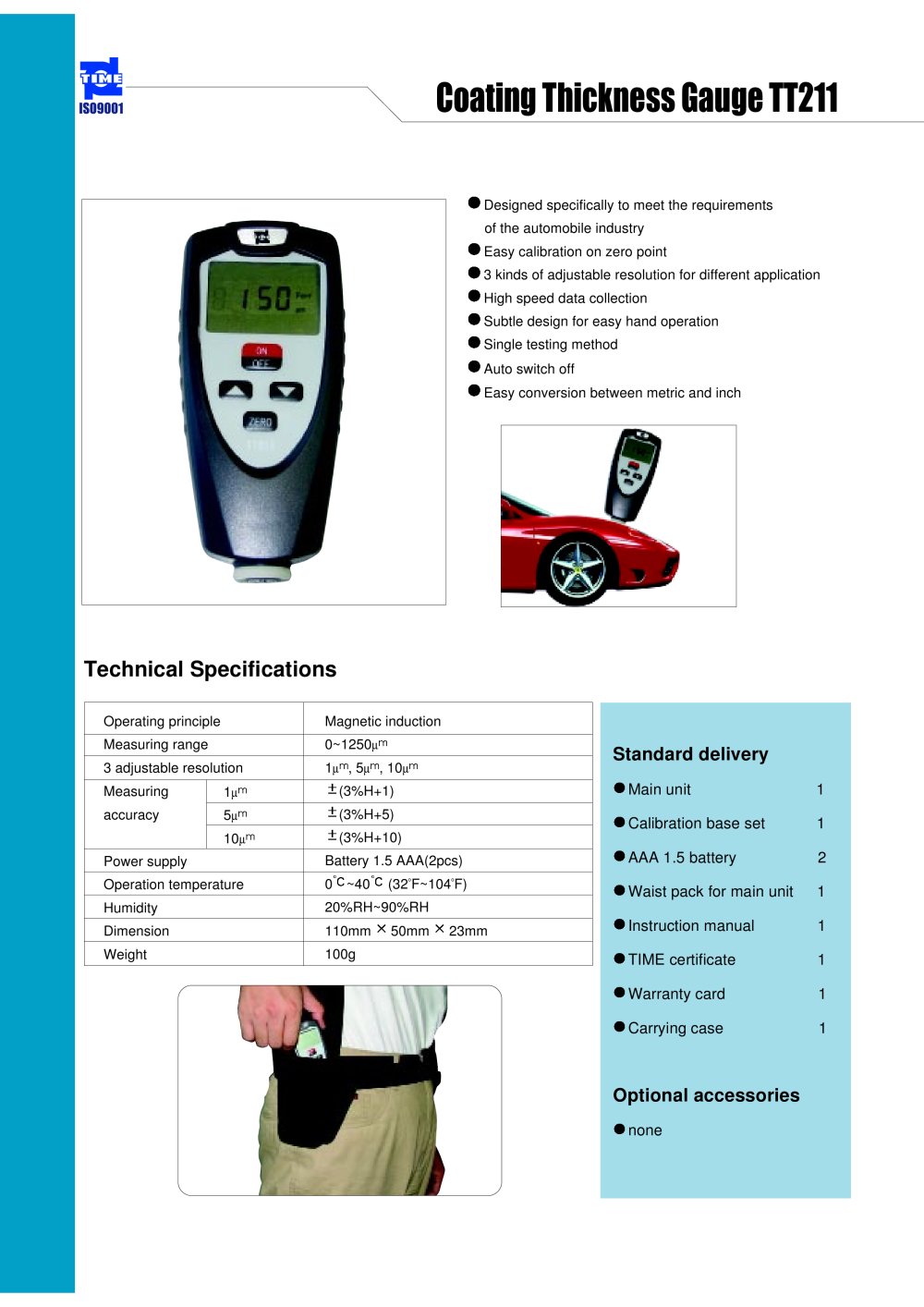

Coating Thickness gauge TT211
ISO9001
' Designed specifically to meet the requirements
of the automobile industry Easy calibration on zero point
13 kinds of adjustable resolution for different application High speed data collection Subtle design for easy hand operation Single testing method Auto switch off
Easy conversion between metric and inch
Technical Specifications
Operating principle
Magnetic induction
Measuring range
0~1250nm
3 adjustable resolution
1|im, 5|im, 10nm
Measuring accuracy
1n.m
±(3%H+1)
± (3%H+5)
10nm
±(3%H+10)
Power supply
Battery 1.5 AAA(2pcs)
Operation temperature
rj0C~4rj°C (32oF~104oF)
Humidity
20%RH~90%RH
Dimension
110mm x 50mm x 23mm
Weight
100g
Standard delivery
• Main unit
1
• Calibration base set
1
• AAA 1.5 battery
2
• Waist pack for main unit
1
• Instruction manual
1
• TIME certificate
1
Warranty card
1
Carrying case
1
Optional accessories
none
