MINISTROB 2000N/S-EXT-PH Art.No.: 1047 - BBE - #1

Text version of the page

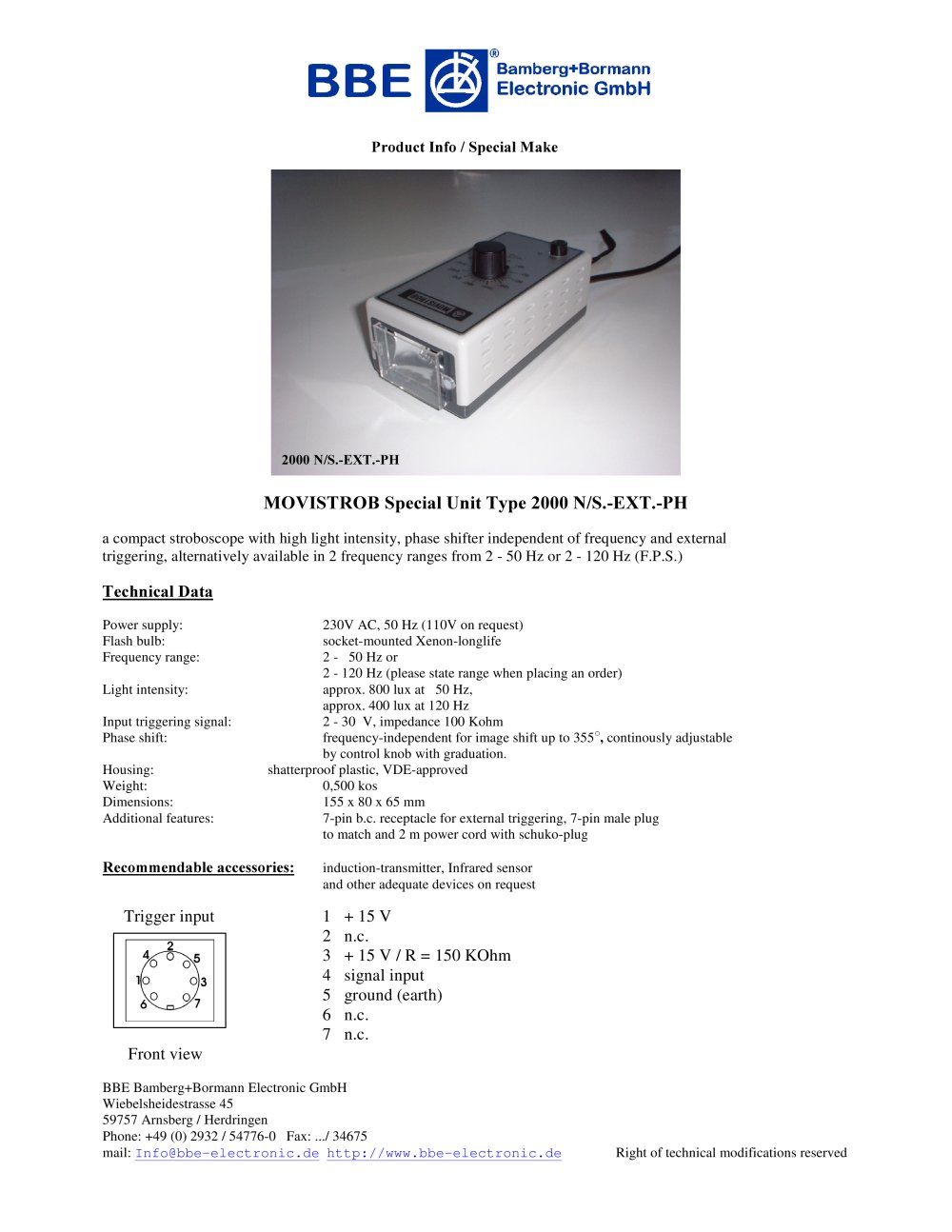

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Times New Roman", serif; } .font1 { font:9.00pt "Times New Roman", serif; } .font2 { font:11.00pt "Times New Roman", serif; } Product Info / Spécial Make 2000 N/S.-EXT.-PH MOVISTROB Spécial Unit Type 2000 N/S.-EXT.-PH a compact stroboscope with high light intensity, phase shifter independent of frequency and external triggering, alternatively available in 2 frequency ranges from 2 - 50 Hz or 2 - 120 Hz (F.P.S.) Technical Data Power supply: Flash bulb: Frequency range: Light intensity: Input triggering signal: Phase shift: Housing: Weight: Dimensions: Additional features: 230V AC, 50 Hz (110V on request) socket-mounted Xenon-longlife 2 - 50 Hz or 2 - 120 Hz (please state range when placing an order) approx. 800 lux at 50 Hz, approx. 400 lux at 120 Hz 2-30 V, impédance 100 Kohm frequency-independent for image shift up to 355°, continously adjustable by control knob with graduation. shatterproof plastic, VDE-approved 0,500 kos 155 x 80 x 65 mm 7-pin b.c. receptacle for external triggering, 7-pin male plug to match and 2 m power cord with schuko-plug Recommendable accessories: induction-transmitter, Infrared sensor and other adequate devices on request 1 + 15 V 2 n.c. 3 + 15 V / R = 150 KOhm 4 signal input 5 ground (earth) 6 n.c. 7 n.c. Trigger input Front view BBE Bamberg+Bormann Electronic GmbH Wiebelsheidestrasse 45 59757 Arnsberg / Herdringen Phone: +49 (0) 2932 / 54776-0 Fax: .../ 34675 mail: Info@bbe-electronic.de http://www.bbe-electronic.de Right of technical modifications reserved
