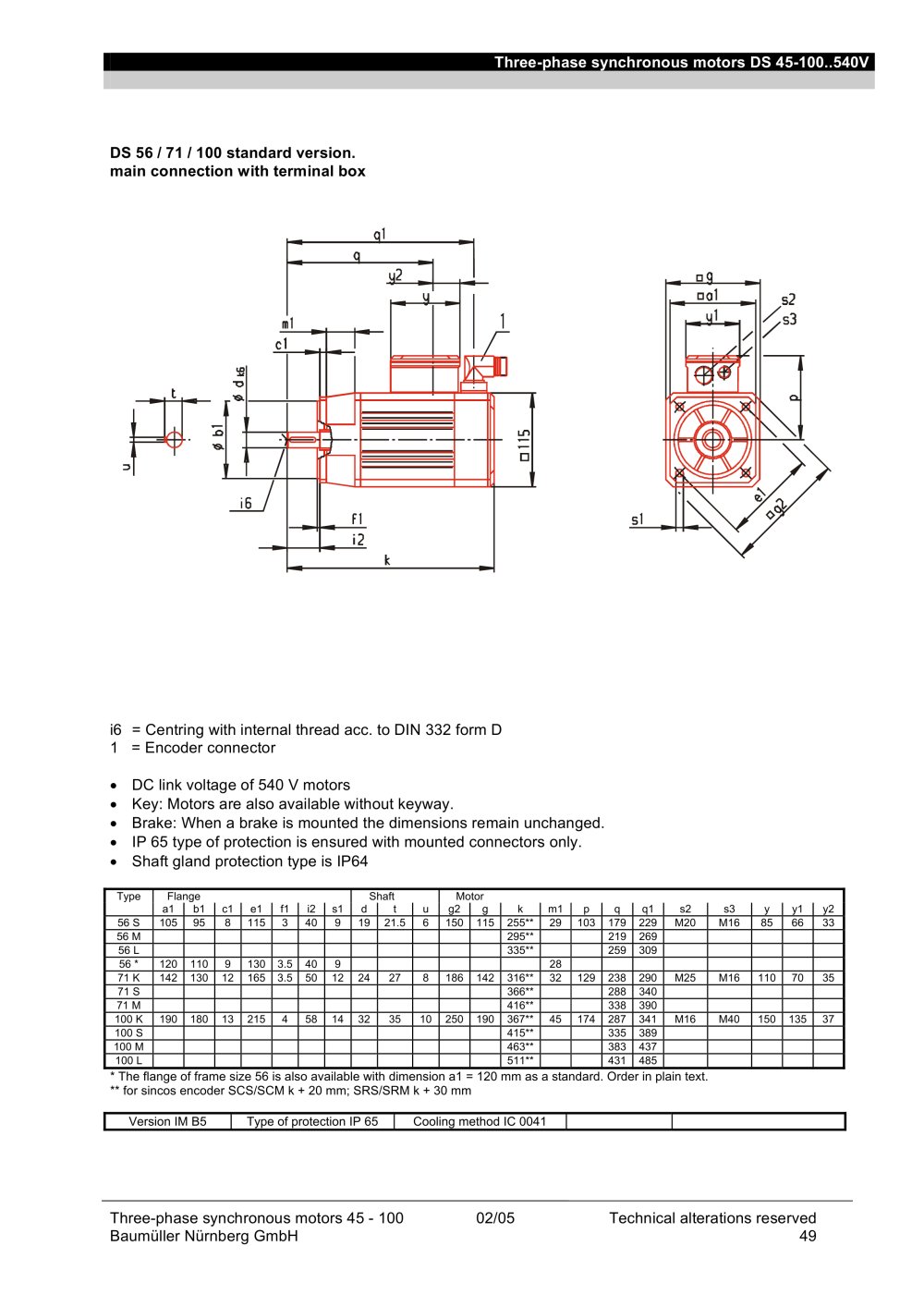

Three-phase synchronous motors DS 45-100..540V DS 56 / 71 / 100 standard version. main connection with terminal box i6 = Centring with internal thread acc. to DIN 332 form D 1 = Encoder connector DC link voltage of 540 V motors Key: Motors are also available without keyway. Brake: When a brake is mounted the dimensions remain unchanged. IP 65 type of protection is ensured with mounted connectors only. Shaft gland protection type is IP64

Type Flange Shaft Motor a1 b1 c1 e1 f1 i2 s1 d t u g2 g k m1 p q q1 s2 s3 y y1 y2 56 S 105 95 8 115 3 40 9 19 21.5 6 150115255**29 103179229 M20 M16 85 66 33 56 M 295** 219269 56 L 335** 259309 56 * 120 110 9 130 3.5 40 9 28 71 K 142 130 12 165 3.5 50 12 24 27 8 186142316**32 129238290 M25 M16 11070 35 71 S 366** 288340 71 M 416** 338390 100 K 190 180 13 215 4 58 14 32 35 10 250190367**45 174287341 M16 M40 15013537 100 S 415** 335389 100 M 463** 383437 100 L 511** 431485

* The flange of frame size 56 is also available with dimension a1 = 120 mm as a standard. Order in plain text.** for sincos encoder SCS/SCM k + 20 mm; SRS/SRM k + 30 mm Version IM B5 Type of protection IP 65 Cooling method IC 0041

Three-phase synchronous motors 45 - 100 02/05 Technical alterations reserved Baumüller Nürnberg GmbH 49
