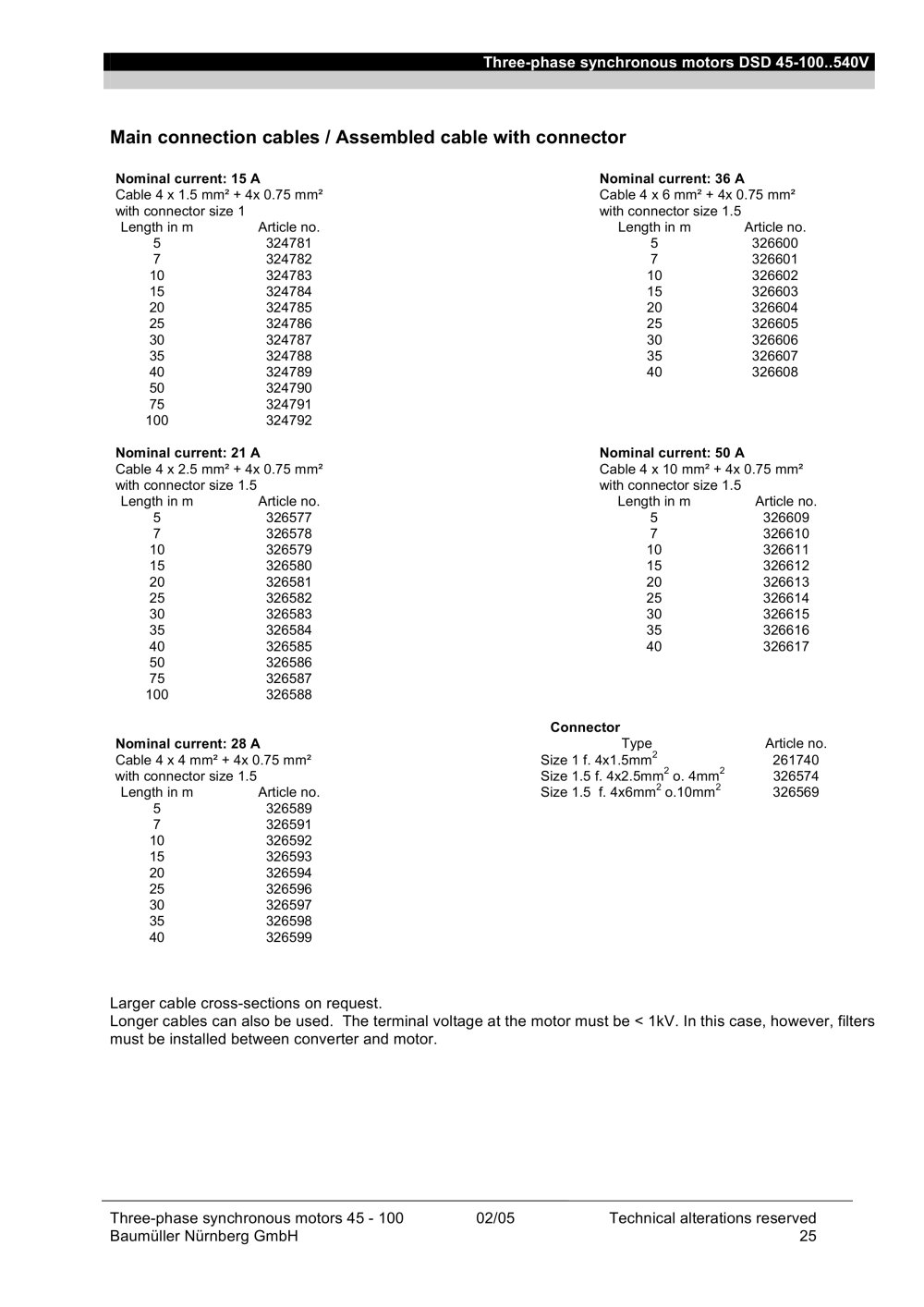

Main connection cables / Assembled cable with connector
Nominal current: 15 A Nominal current: 36 A Cable 4 x 1.5 mm² + 4x 0.75 mm² Cable 4 x 6 mm² + 4x 0.75 mm² with connector size 1 with connector size 1.5 Length in m Article no. Length in m Article no. 5 324781 5 326600 7 324782 7 326601 10 324783 10 326602 15 324784 15 326603 20 324785 20 326604 25 324786 25 326605 30 324787 30 326606 35 324788 35 326607 40 324789 40 326608 50 324790 75 324791 100 324792 Nominal current: 21 A Nominal current: 50 A Cable 4 x 2.5 mm² + 4x 0.75 mm² Cable 4 x 10 mm² + 4x 0.75 mm² with connector size 1.5 with connector size 1.5 Length in m Article no. Length in m Article no. 5 326577 5 326609 7 326578 7 326610 10 326579 10 326611 15 326580 15 326612 20 326581 20 326613 25 326582 25 326614 30 326583 30 326615 35 326584 35 326616 40 326585 40 326617 50 326586 75 326587 100 326588 ConnectorNominal current: 28 A Type Article no. Cable 4 x 4 mm² + 4x 0.75 mm² Size 1 f. 4x1.5mm
2 2 2 261740with connector size 1.5 Size 1.5 f. 4x2.5mm
2 o. 4mm
2 326574 Length in m Article no. Size 1.5 f. 4x6mm o.10mm 3265695 326589 7 326591 10 326592 15 326593 20 326594 25 326596 30 326597 35 326598 40 326599
Larger cable cross-sections on request. Longer cables can also be used. The terminal voltage at the motor must be < 1kV. In this case, however, filters must be installed between industrial converter and motor. Three-phase synchronous motors 45 - 100 02/05 Technical alterations reserved Baumüller Nürnberg GmbH 25
