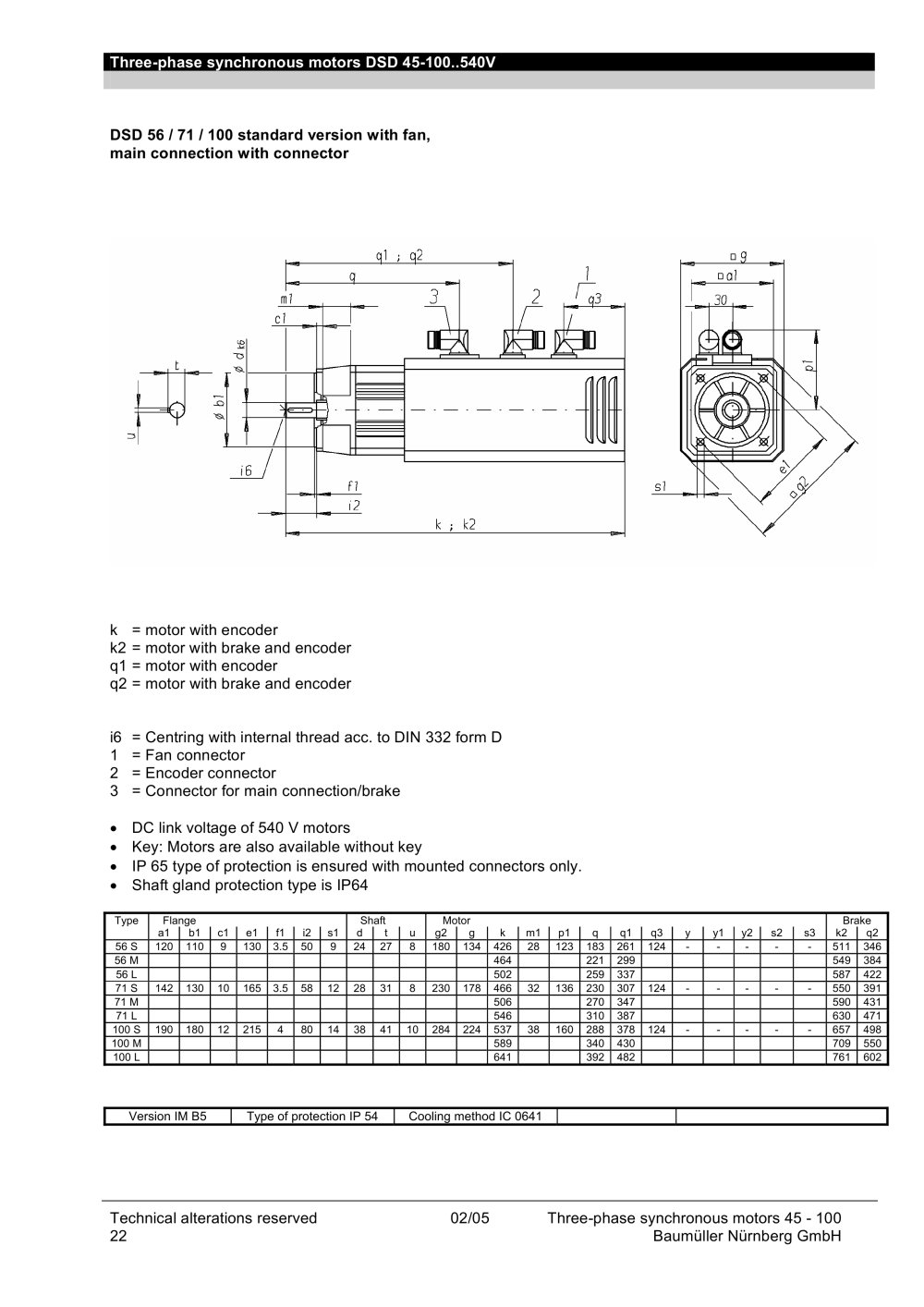

Three-phase synchronous motors DSD 45-100..540V DSD 56 / 71 / 100 standard version with fan, main connection with connector k = motor with encoder k2 = motor with brake and encoder q1 = motor with encoder q2 = motor with brake and encoder i6 = Centring with internal thread acc. to DIN 332 form D 1 = Fan connector 2 = Encoder connector 3 = Connector for main connection/brake DC link voltage of 540 V motors Key: Motors are also available without key IP 65 type of protection is ensured with mounted connectors manufacturer only. Shaft gland protection type is IP64

Type Industrial flange Shaft Motor Brake a1 b1 c1 e1 f1 i2 s1 d t u g2 g k m1 p1 q q1 q3 y y1 y2 s2 s3 k2 q2 56 S 120 110 9 130 3.5 50 9 24 27 8 18013442628 123183261124 - - - - - 511346 56 M 464 221299 549384 56 L 502 259337 587422 71 S 142 130 10 165 3.5 58 12 28 31 8 23017846632 136230307124 - - - - - 550391 71 M 506 270347 590431 71 L 546 310387 630471 100 S 190 180 12 215 4 80 14 38 41 10 28422453738 160288378124 - - - - - 657498 100 M 589 340430 709550 100 L 641 392482 761602

Version IM B5 Type of protection IP 54 Cooling method IC 0641
