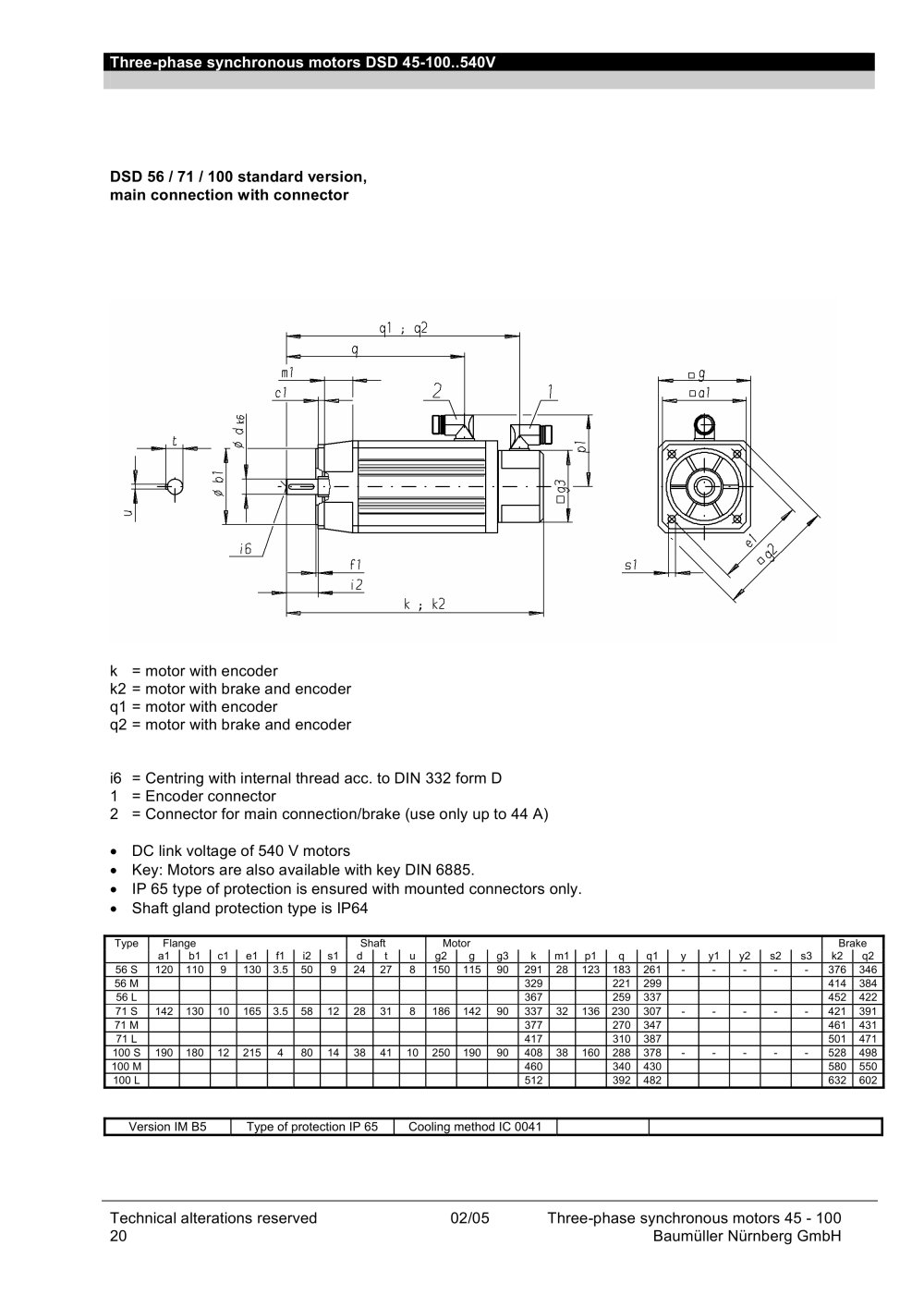

Three-phase synchronous motors DSD 45-100..540V DSD 56 / 71 / 100 standard version, main connection with connector k = motor with encoder k2 = motor with brake and encoder q1 = motor with encoder q2 = motor with brake and encoder i6 = Centring with internal thread acc. to DIN 332 form D 1 = Encoder connector 2 = Connector for main connection/brake (use only up to 44 A) DC link voltage of 540 V motors Key: Motors are also available with key DIN 6885. IP 65 type of protection is ensured with mounted connectors manufacturer only. Shaft gland protection type is IP64

Type Industrial flange Shaft Motor Brake a1 b1 c1 e1 f1 i2 s1 d t u g2 g g3 k m1p1 q q1 y y1 y2 s2 s3 k2 q2 56 S 120 110 9 130 3.5 50 9 24 27 8 15011590 29128 123183261 - - - - - 376346 56 M 329 221299 414384 56 L 367 259337 452422 71 S 142 130 10 165 3.5 58 12 28 31 8 18614290 33732 136230 307 - - - - - 421391 71 M 377 270347 461431 71 L 417 310387 501471 100 S 190 180 12 215 4 80 14 38 41 10 25019090 40838 160288378 - - - - - 528498 100 M 460 340430 580550 100 L 512 392482 632602

Version IM B5 Type of protection IP 65 Cooling method IC 0041

Technical alterations reserved 02/05 Three-phase synchronous motors 45 - 100 20 Baumüller Nürnberg GmbH
