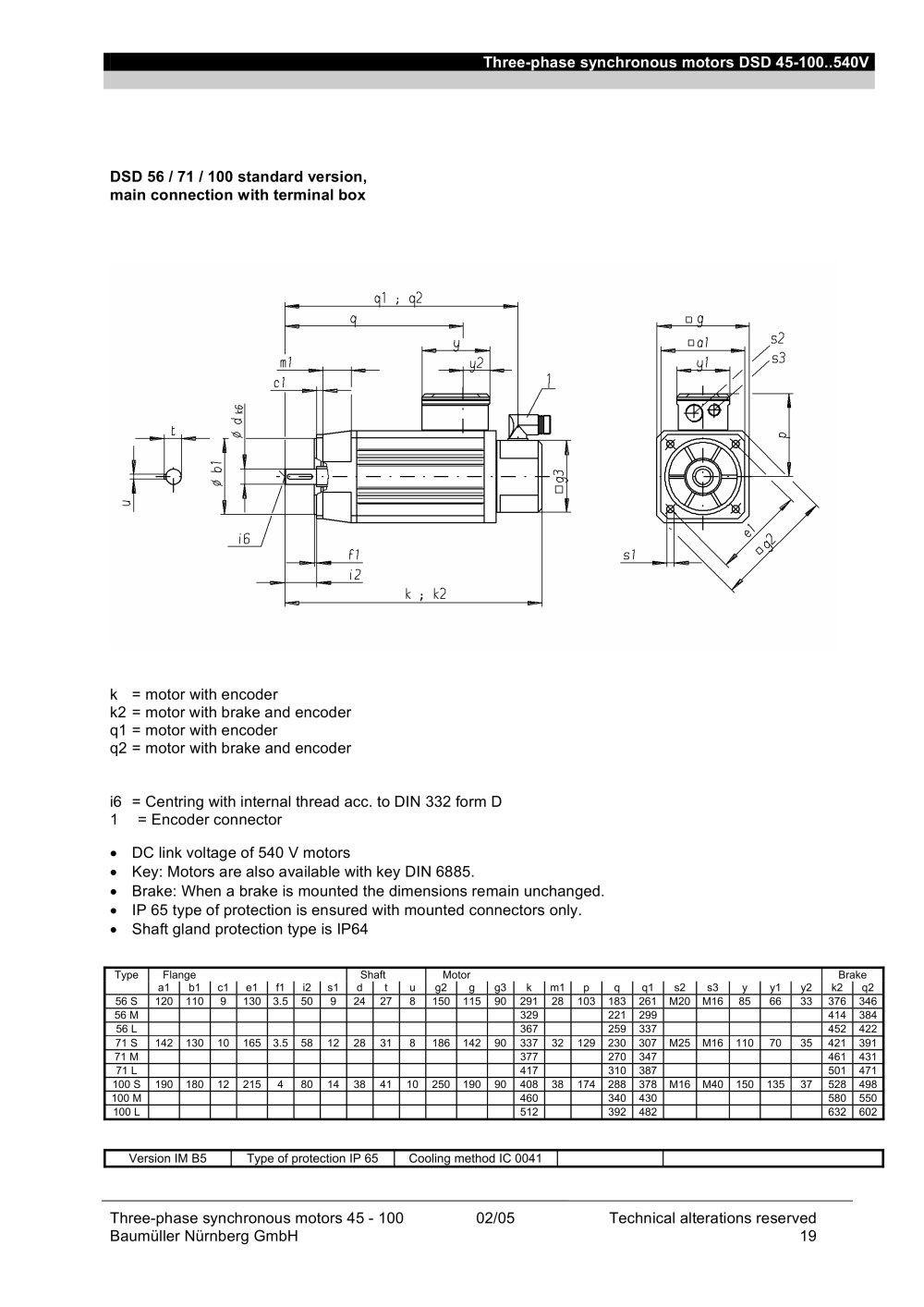

100 standard version, main connection with terminal box k = motor with encoder k2 = motor with brake and encoder q1 = motor with encoder q2 = motor with brake and encoder i6 = Centring with internal thread acc. to DIN 332 form D 1 = Encoder connector DC link voltage of 540 V motors Key: Motors are also available with key DIN 6885. Brake: When a brake is mounted the dimensions remain unchanged. IP 65 type of protection is ensured with mounted industrial connectors only. Shaft gland protection type is IP64

Type Flange Shaft Motor Brake a1 b1 c1 e1 f1 i2 s1 d t u g2 g g3 k m1p q q1 s2 s3 y y1 y2 k2 q2 56 S 120 110 9 130 3.5 50 9 24 27 8 15011590 29128 103183261 M20 M16 85 66 33 376346 56 M 329 221299 414384 56 L 367 259337 452422 71 S 142 130 10 165 3.5 58 12 28 31 8 18614290 33732 129230307 M25 M16 110 70 35 421391 71 M 377 270347 461431 71 L 417 310387 501471 100 S 190 180 12 215 4 80 14 38 41 10 25019090 40838 174288378 M16 M40 150 13537 528498 100 M 460 340430 580550 100 L 512 392482 632602

Version IM B5 Type of protection IP 65 Cooling method IC 0041

Three-phase synchronous motors 45 - 100 02/05 Technical alterations reserved Baumüller Nürnberg GmbH 19
