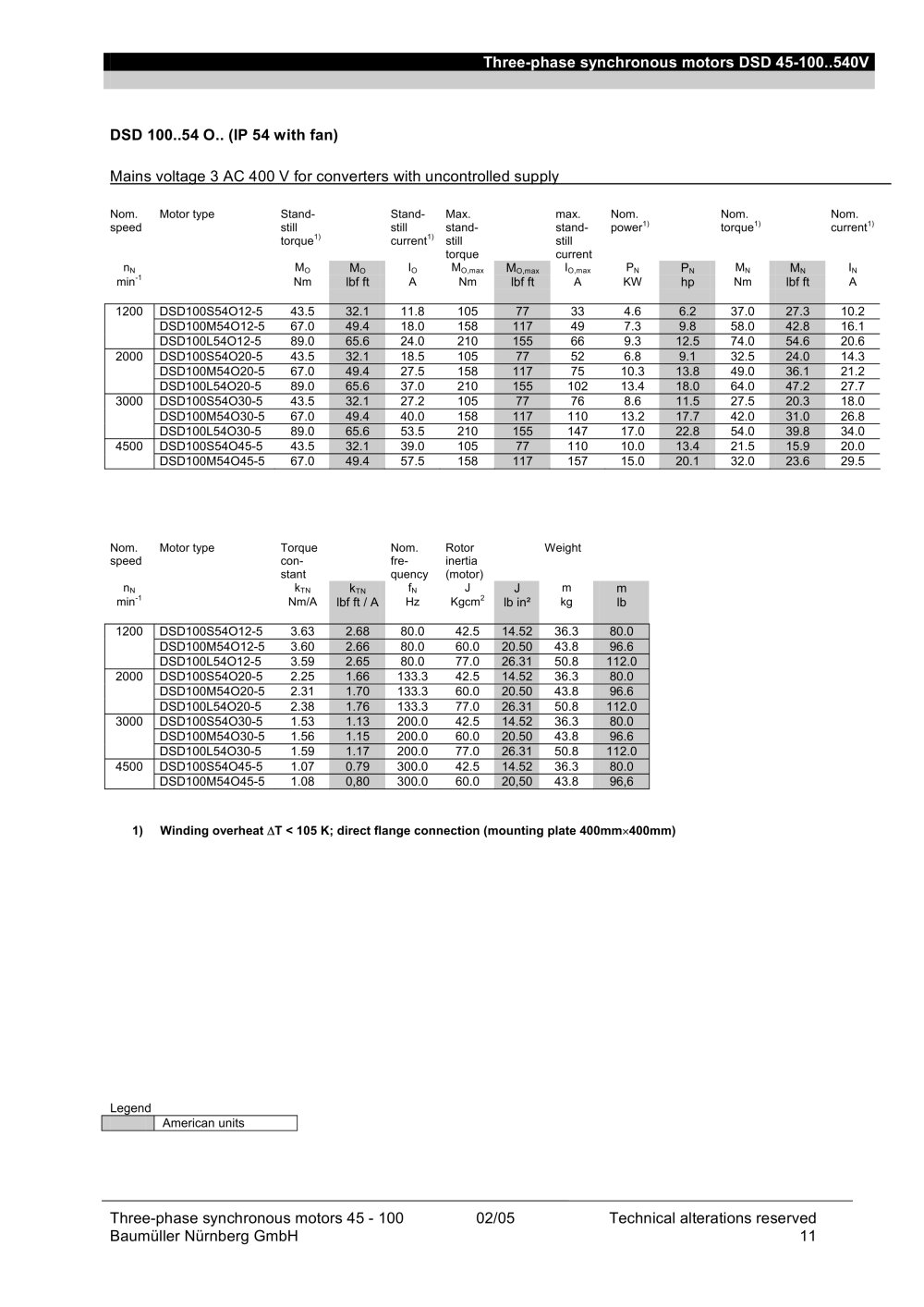

Three-phase synchronous motors DSD 45-100..540V DSD 100..54 O.. (IP 54 with fan) Mains voltage 3 AC 400 V for converters with uncontrolled supply

Nom. speedMotor type Stand-still torque Stand-still current Max. stand- still torque max. stand- still currentNom. power 1) Nom. torque 1) Nom. current 1) 1) 1) n N M O -1 M
O I O M O,max M
O,max I O,max P N P
N M N M
N I N min Nm lbf ft
A Nm lbf ft
A KW hp
Nm lbf ft
A 1200 DSD100S54O12-5 43.5 32.1 11.8 105 77 33 4.6 6.2 37.0 27.3 10.2 DSD100M54O12-5 67.0 49.4 18.0 158 117 49 7.3 9.8 58.0 42.8 16.1 DSD100L54O12-5 89.0 65.6 24.0 210 155 66 9.3 12.5 74.0 54.6 20.6 2000 DSD100S54O20-5 43.5 32.1 18.5 105 77 52 6.8 9.1 32.5 24.0 14.3 DSD100M54O20-5 67.0 49.4 27.5 158 117 75 10.3 13.8 49.0 36.1 21.2 DSD100L54O20-5 89.0 65.6 37.0 210 155 102 13.4 18.0 64.0 47.2 27.7 3000 DSD100S54O30-5 43.5 32.1 27.2 105 77 76 8.6 11.5 27.5 20.3 18.0 DSD100M54O30-5 67.0 49.4 40.0 158 117 110 13.2 17.7 42.0 31.0 26.8 DSD100L54O30-5 89.0 65.6 53.5 210 155 147 17.0 22.8 54.0 39.8 34.0 4500 DSD100S54O45-5 43.5 32.1 39.0 105 77 110 10.0 13.4 21.5 15.9 20.0 DSD100M54O45-5 67.0 49.4 57.5 158 117 157 15.0 20.1 32.0 23.6 29.5
Nom. speedMotor type Torque con- stant Nom. fre- quency Rotor inertia (motor) Weight n N k TN -1 k
TN f N J 2 J
m m
min Nm/A lbf ft / A
Hz Kgcm lb in²
kg lb 1200 DSD100S54O12-5 3.63 2.68 80.0 42.5 14.5236.3 80.0 DSD100M54O12-5 3.60 2.66 80.0 60.0 20.5043.8 96.6 DSD100L54O12-5 3.59 2.65 80.0 77.0 26.3150.8 112.0 2000 DSD100S54O20-5 2.25 1.66 133.3 42.5 14.5236.3 80.0 DSD100M54O20-5 2.31 1.70 133.3 60.0 20.5043.8 96.6 DSD100L54O20-5 2.38 1.76 133.3 77.0 26.3150.8 112.0 3000 DSD100S54O30-5 1.53 1.13 200.0 42.5 14.5236.3 80.0 DSD100M54O30-5 1.56 1.15 200.0 60.0 20.5043.8 96.6 DSD100L54O30-5 1.59 1.17 200.0 77.0 26.3150.8 112.0 4500 DSD100S54O45-5 1.07 0.79 300.0 42.5 14.5236.3 80.0 DSD100M54O45-5 1.08 0,80 300.0 60.0 20,5043.8 96,6 1) Winding overheat T < 105 K; direct industrial flange connection (mounting plate 400mm 400mm) Legend American units

Three-phase synchronous motors 45 - 100 02/05 Technical alterations reserved Baumüller Nürnberg GmbH 11
