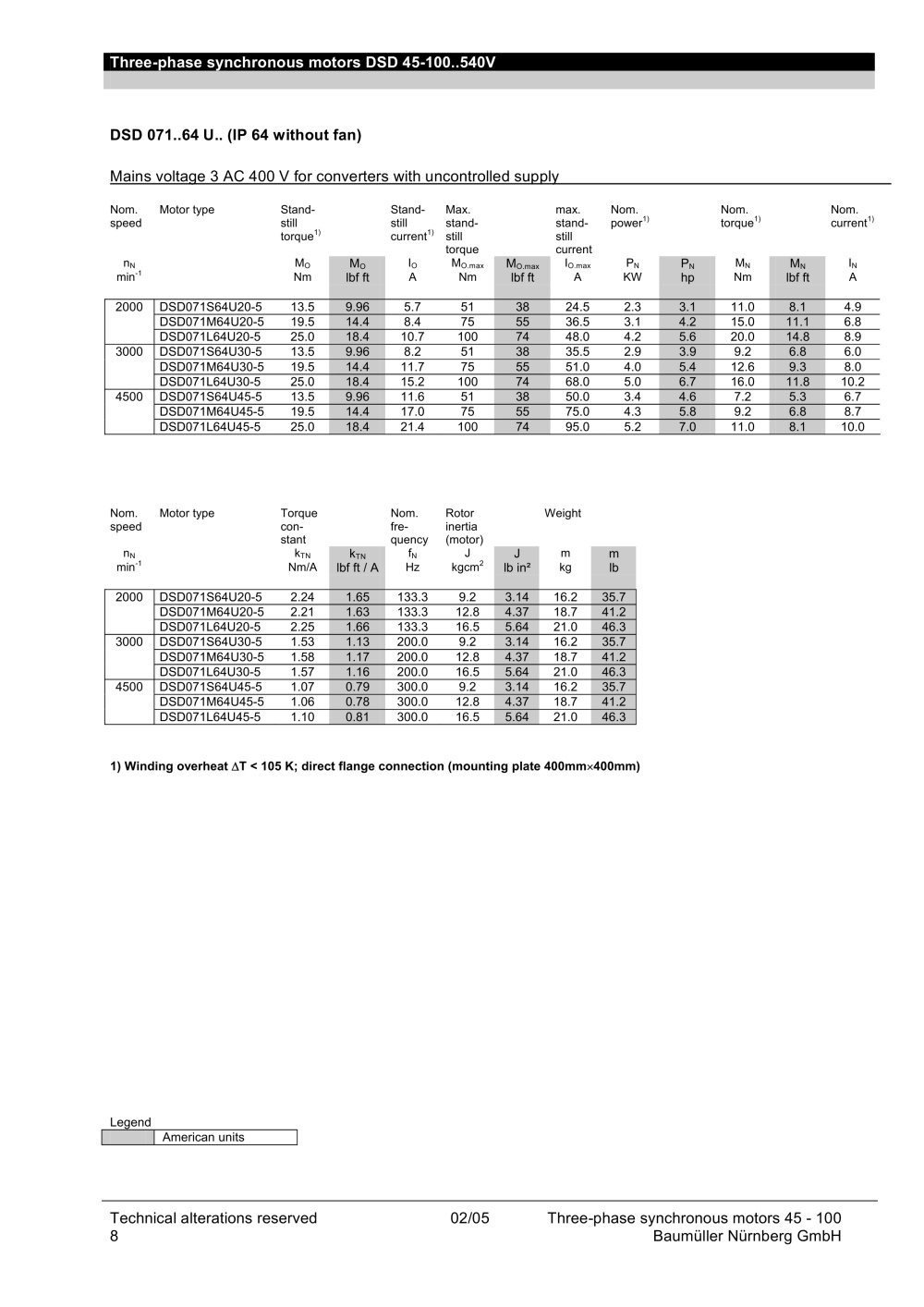

Three-phase synchronous motors DSD 45-100..540V DSD 071..64 U.. (IP 64 without fan) Mains voltage 3 AC 400 V for converters with uncontrolled supply

Nom. speedMotor type Stand-still torque Stand-still current Max. stand- still torque max. stand- still currentNom. power 1) Nom. torque 1) Nom. current 1) 1) 1) n N M O -1 M
O I O M O.max M
O.max I O.max P N P
N M N M
N I N min Nm lbf ft
A Nm lbf ft
A KW hp
Nm lbf ft
A 2000 DSD071S64U20-5 13.5 9.96 5.7 51 38 24.5 2.3 3.1 11.0 8.1 4.9 DSD071M64U20-5 19.5 14.4 8.4 75 55 36.5 3.1 4.2 15.0 11.1 6.8 DSD071L64U20-5 25.0 18.4 10.7 100 74 48.0 4.2 5.6 20.0 14.8 8.9 3000 DSD071S64U30-5 13.5 9.96 8.2 51 38 35.5 2.9 3.9 9.2 6.8 6.0 DSD071M64U30-5 19.5 14.4 11.7 75 55 51.0 4.0 5.4 12.6 9.3 8.0 DSD071L64U30-5 25.0 18.4 15.2 100 74 68.0 5.0 6.7 16.0 11.8 10.2 4500 DSD071S64U45-5 13.5 9.96 11.6 51 38 50.0 3.4 4.6 7.2 5.3 6.7 DSD071M64U45-5 19.5 14.4 17.0 75 55 75.0 4.3 5.8 9.2 6.8 8.7 DSD071L64U45-5 25.0 18.4 21.4 100 74 95.0 5.2 7.0 11.0 8.1 10.0
Nom. speedMotor type Torque con- stant Nom. fre- quency Rotor inertia (motor) Weight n N k TN -1 k
TN f N J 2 J
m m
min Nm/A lbf ft / A
Hz kgcm lb in²
kg lb 2000 DSD071S64U20-5 2.24 1.65 133.3 9.2 3.14 16.2 35.7 DSD071M64U20-5 2.21 1.63 133.3 12.8 4.37 18.7 41.2 DSD071L64U20-5 2.25 1.66 133.3 16.5 5.64 21.0 46.3 3000 DSD071S64U30-5 1.53 1.13 200.0 9.2 3.14 16.2 35.7 DSD071M64U30-5 1.58 1.17 200.0 12.8 4.37 18.7 41.2 DSD071L64U30-5 1.57 1.16 200.0 16.5 5.64 21.0 46.3 4500 DSD071S64U45-5 1.07 0.79 300.0 9.2 3.14 16.2 35.7 DSD071M64U45-5 1.06 0.78 300.0 12.8 4.37 18.7 41.2 DSD071L64U45-5 1.10 0.81 300.0 16.5 5.64 21.0 46.3 1) Winding overheat T < 105 K; direct industrial flange connection (mounting plate 400mm 400mm) Legend American units

Technical alterations reserved 02/05 Three-phase synchronous motors 45 - 100 8 Baumüller Nürnberg GmbH
